Yamaha TMAX TECH MAX 2020 - ENGINE REMOVAL

5-7
ENGINE REMOVAL
EAS20042
ENGINE REMOVAL

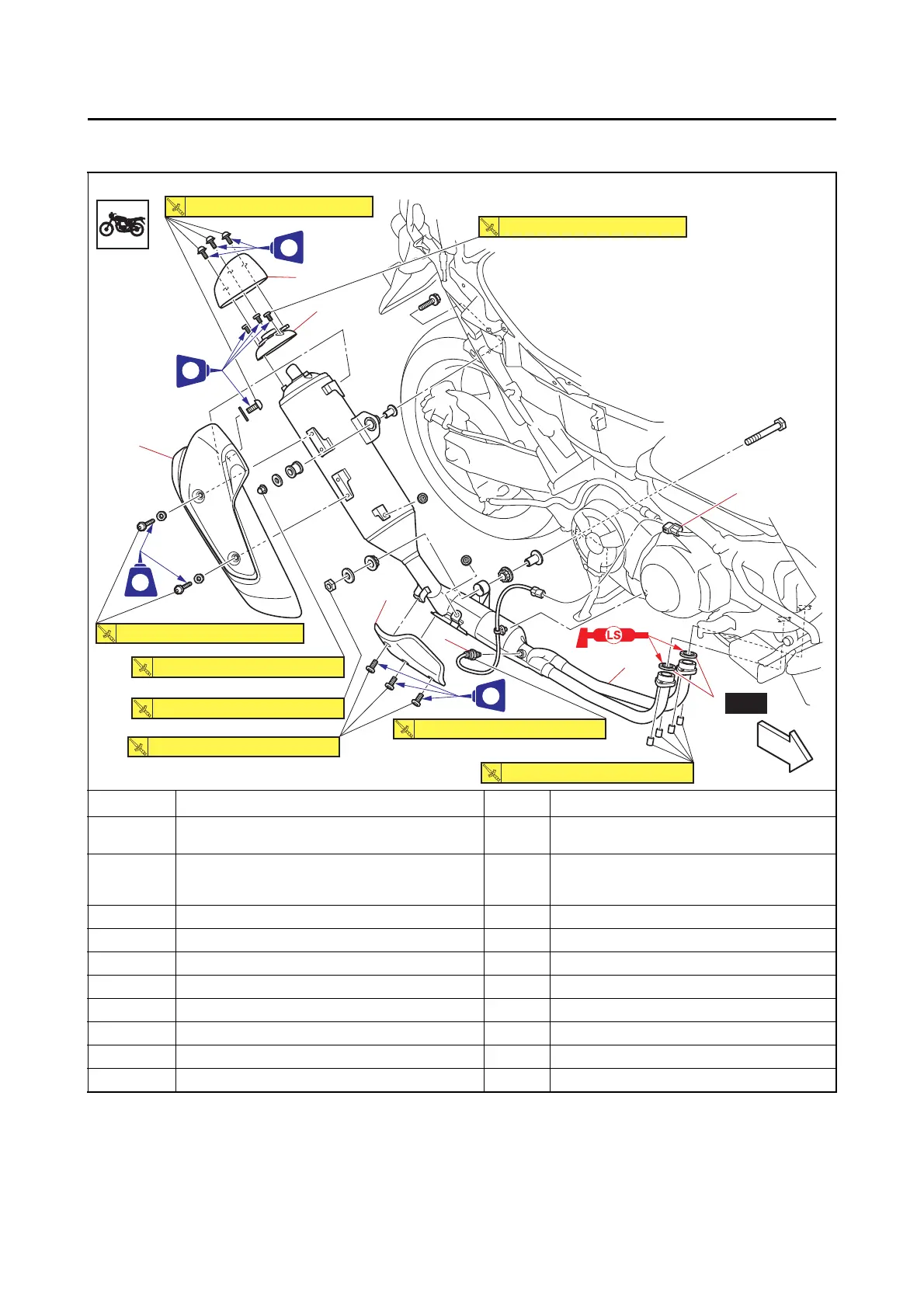

Removing the exhaust assembly
Order Job/Parts to remove Q’ty Remarks
Bottom side cowling/Side panel/Bottom center
cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover (right)/Rear side cowling assembly (right)/
Footboard (right)
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
1O
2
sensor coupler 1 Disconnect.
2O
2
sensor 1
3 Exhaust assembly 1
4Gasket 2
5 Front muffler protector 1
6 Muffler protector 1
7 Muffler end 1
8 Muffler end bracket 1
FWDFWD
10 N・m (1.0 kgf・m, 7.4 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
20 N・m (2.0 kgf・m, 15 lb・ft)
25 N・m (2.5 kgf・m, 18 lb・ft)
31 N・m (3.1 kgf・m, 23 lb・ft)
55 N・m (5.5 kgf・m, 41 lb・ft)
1
3
4
5
6
7
8
LT
2
LT
LT
LT
New
