6-1

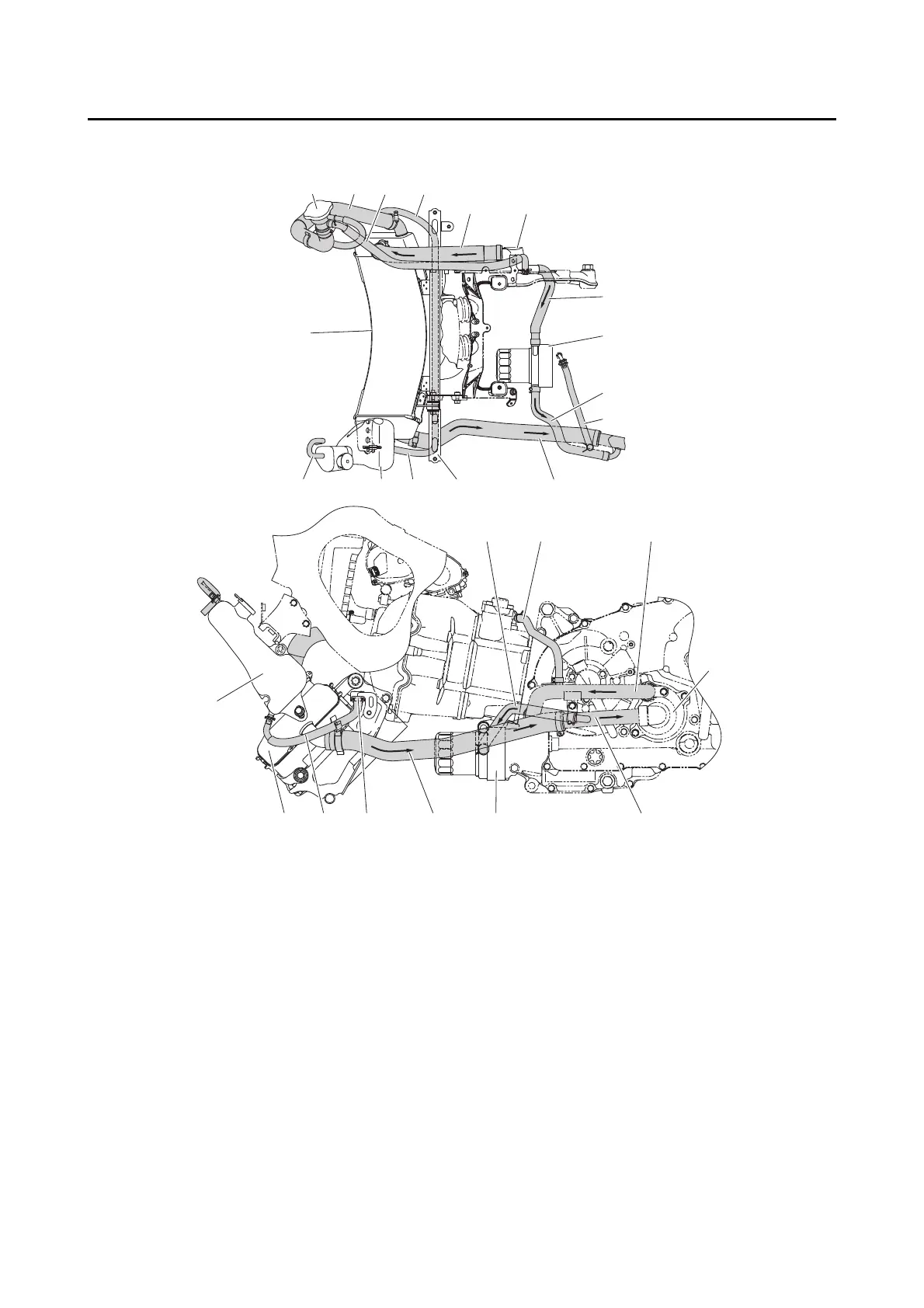

COOLING SYSTEM DIAGRAMS
EAS20299
COOLING SYSTEM DIAGRAMS
1 2 3 4
5 6
7
8
9
10
12
910 11
17
14
1341415
16
1881213416
1. Radiator cap
2. Radiator filler hose
3. Cooling system air bleed hose
4. Coolant reservoir hose
5. Radiator inlet hose
6. Thermostat
7. Oil cooler inlet hose
8. Oil cooler
9. Oil cooler outlet hose
10. Coolant hose
11. Water pump outlet pipe
12. Radiator outlet hose
13. Radiator bracket
14. Coolant reservoir
15. Coolant reservoir breather hose
16. Radiator
17. Water pump
18. Water pump inlet pipe
