Yamaha TMAX TECH MAX 2020 User Manual

8-109
ELECTRICAL COMPONENTS
EAS32448

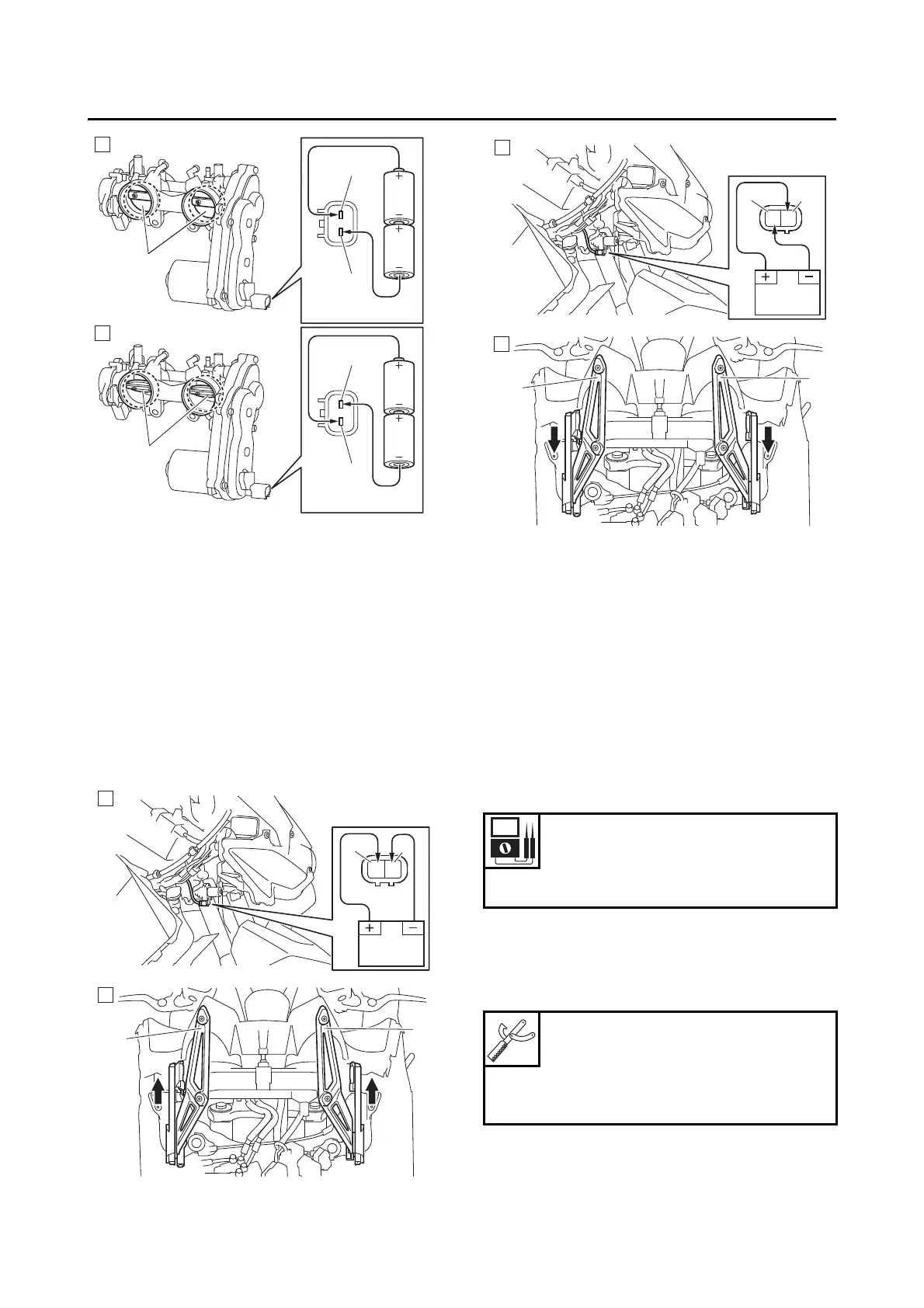

CHECKING THE WINDSHIELD DRIVE UNIT
(for XP560D)
1. Check:
• Windshield drive unit operation
Faulty/rough movement  Replace.
a. Disconnect the windshield drive unit cou-
pler from the wire harness.
b. Connect the battery (DC V) to the wind-
shield drive unit terminals “1” as shown.
EAS31016
CHECKING THE GRIP WARMERS (for
XP560D)
The following procedure applies to both of the
grip warmers.
1. Check:
• Grip warmer resistance
Out of specification  Replace the grip
warmer.
a. Disconnect the grip warmer coupler from
the wire harness.
b. Connect the digital circuit tester () to the
grip warmer coupler as shown.
A. Check that the throttle valves “2” fully close.
B. Check that the throttle valves “2” open.
1
1
3V
2
A
1
1
3V
1
3V
B
2
RBr
A
1
1
A
2
2
A. Check that the windshield drive unit arms
“2” up.
B. Check that the windshield drive unit arms
“2” down.
Grip warmer resistance (L)
1.2–1.4 
Grip warmer resistance (R)
1.2–1.5 
Digital circuit tester (CD732)
90890-03243
Model 88 Multimeter with
tachometer
YU-A1927
B
RBr
1
1
B
2
2
