4-35
REAR WHEEL
EAS30165

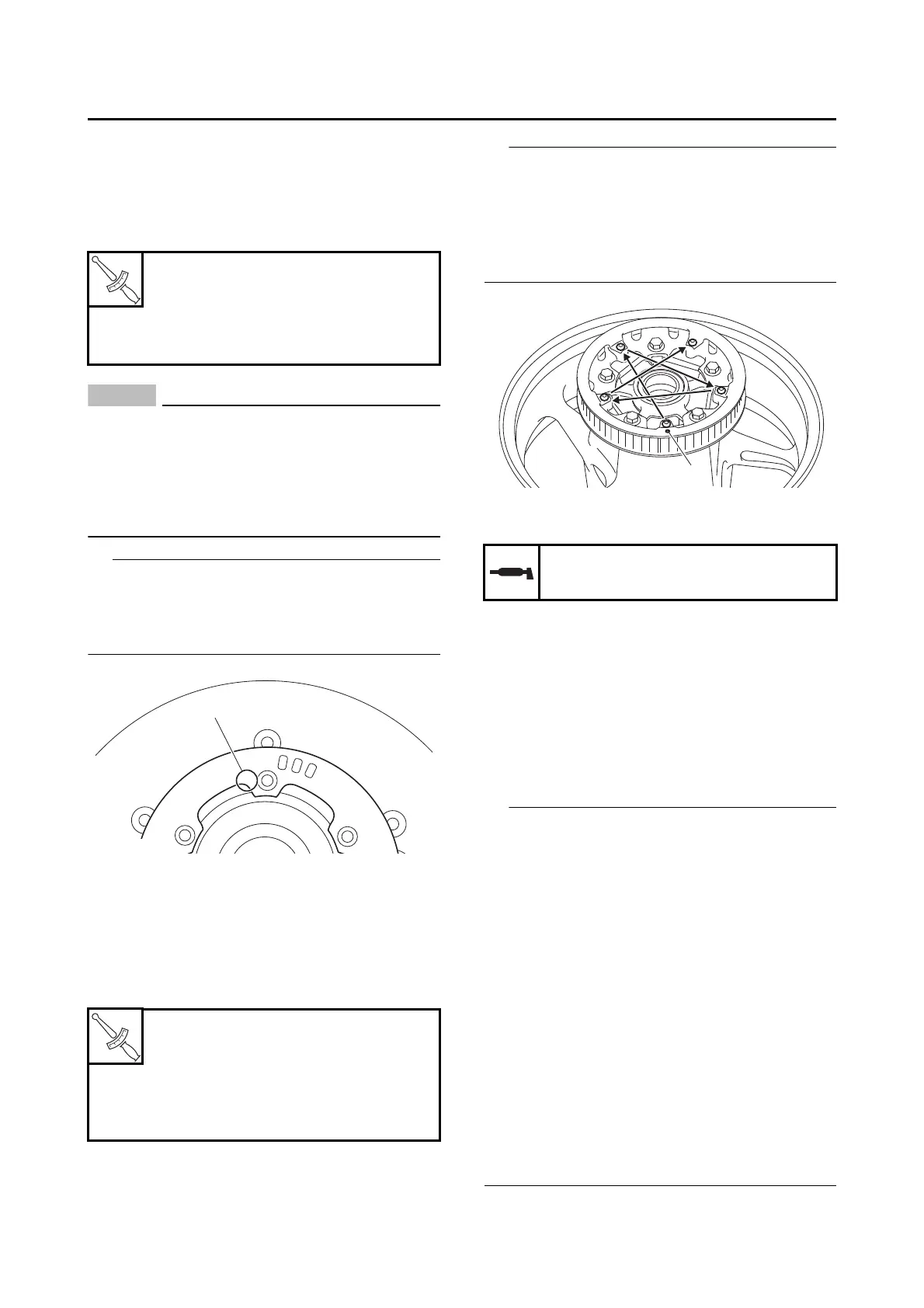

INSTALLING THE REAR WHEEL (DISC
BRAKE)
1. Install:
• Rear wheel sensor rotor
• Rear brake disc
ECA21011
• Do not drop the wheel sensor rotor or sub-
ject it to shocks.
• If any solvent gets on the wheel sensor ro-
tor, wipe it off immediately.
• Replace the brake disc bolts and wheel
sensor rotor bolts with new ones.
• Install the wheel sensor rotor with the stamped
mark “b” facing outward.
• Tighten the brake disc bolts in stages and in a
crisscross pattern.
2. Check:
• Rear brake disc
Refer to “CHECKING THE REAR BRAKE
DISC” on page 4-58.
3. Install:
• Drive belt guide
• Rear wheel pulley
• Tighten the rear wheel pulley bolts in stages
and in a crisscross pattern.
• When tightening the drive belt guide bolts,
tighten the bolt at the punch mark “a” first and
then other bolts in stages and in a crisscross
pattern.
4. Lubricate:
• Oil seal lip
5. Install:
• Collar
• Rear wheel sensor housing
• Rear brake caliper bracket
• Rear wheel
• Adjusting block
• Rear wheel axle
• Washer
• Wheel axle nut
• Do not install the brake caliper and brake lock
caliper.
• Fit the brake torque stop pin “a” on the swing-
arm into the slot “b” on the rear brake caliper
bracket.
• When installing the rear brake caliper bracket
and the rear wheel sensor housing, align the
projection “c” on the rear brake caliper bracket
with the slot “d” of the rear wheel sensor hous-
ing.
• After installing the rear wheel to the vehicle,
make sure that the projection “e” on the brake
caliper bracket and the projection “f” on the
rear wheel sensor housing are aligned.
• Install the left adjusting block so that projection
“g” faces to the front of the vehicle.
• Install the right adjusting block with the cham-
fered “h” facing the top and bottom.
Rear wheel sensor bolt
7 N·m (0.7 kgf·m, 5.2 lb·ft)
Rear brake disc bolt
30 N·m (3.0 kgf·m, 22 lb·ft)
LOCTITE®
Rear wheel pulley bolt
64 N·m (6.4 kgf·m, 47 lb·ft)
LOCTITE®
Drive belt guide bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
LOCTITE®
Recommended lubricant
Lithium-soap-based grease
To Next Page
