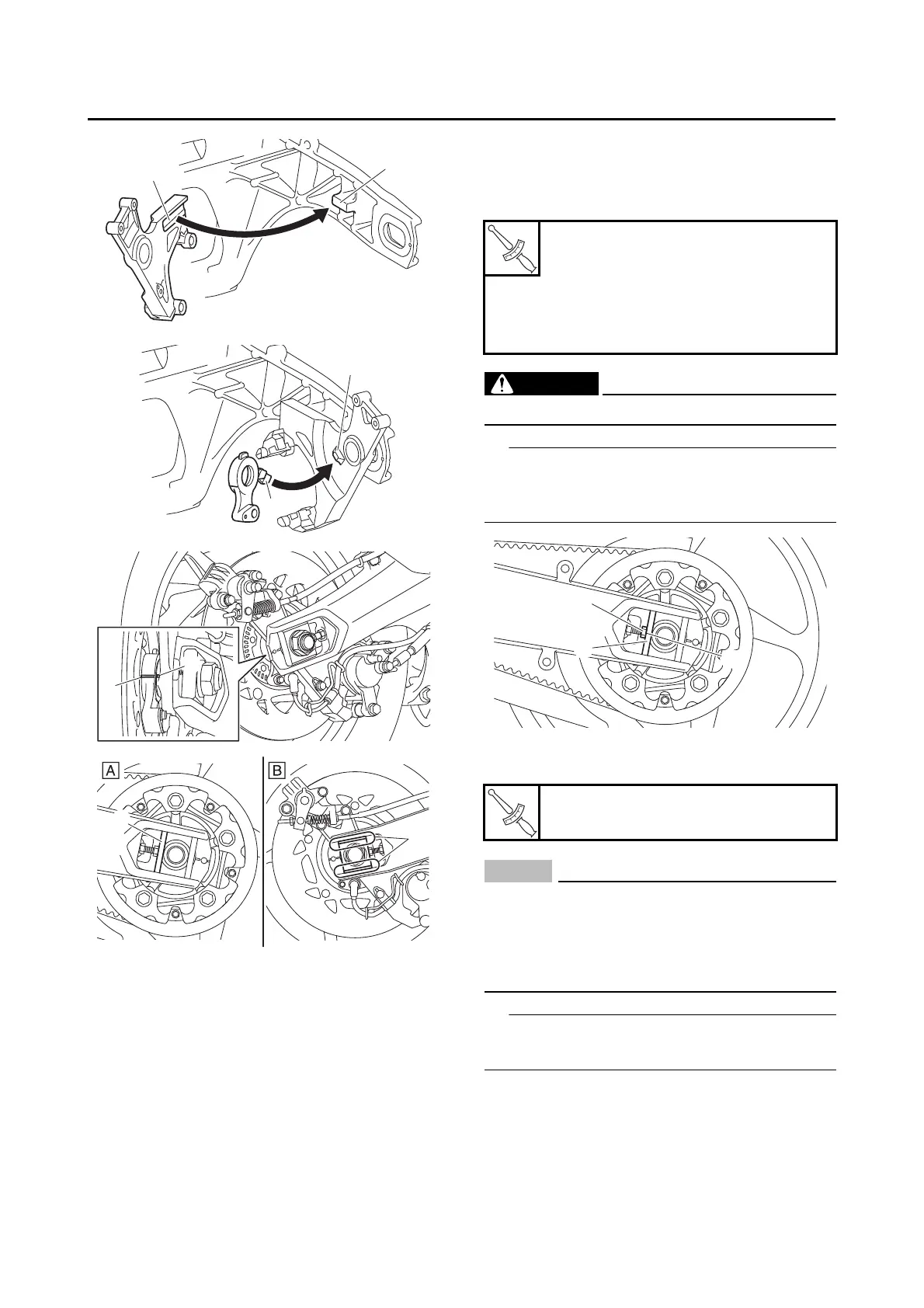

REAR WHEEL
6. Install:
• Rear brake caliper
• Rear brake lock caliper
(temporarily)
7. Adjust:
• Drive belt tension
Refer to “DRIVE BELT TENSION” on page 3-
21.
8. Tighten:
• Wheel axle nut
• Rear brake caliper bolt
• Rear brake lock caliper bolt
WARNING
EWA13500
Make sure the brake hose is routed properly.
TIP
When tightening the wheel axle nut, there
should be no clearance “a” between the adjust-
ing block “1” and adjusting bolt “2”.
9. Install:
• Rear wheel sensor “1”
NOTICE
ECA21080
Make sure there are no foreign materials in
the rear wheel sensor rotor and rear wheel
sensor. Foreign materials cause damage to
the rear wheel sensor rotor and rear wheel
sensor.
TIP
When installing the rear wheel sensor, check the
rear wheel sensor lead for twists.
A. Left side
B. Right side
a
b
c
d
f
e
g
h
Rear wheel axle nut
160 N·m (16 kgf·m, 118 lb·ft)
Rear brake caliper bolt
27 N·m (2.7 kgf·m, 20 lb·ft)
Rear brake lock caliper bolt
23 N·m (2.3 kgf·m, 17 lb·ft)
Rear wheel sensor bolt
7 N·m (0.7 kgf·m, 5.2 lb·ft)
T
R
.
.
1
2
a
T
R
.
.
