5-66
CRANKCASE
EAS20059
CRANKCASE

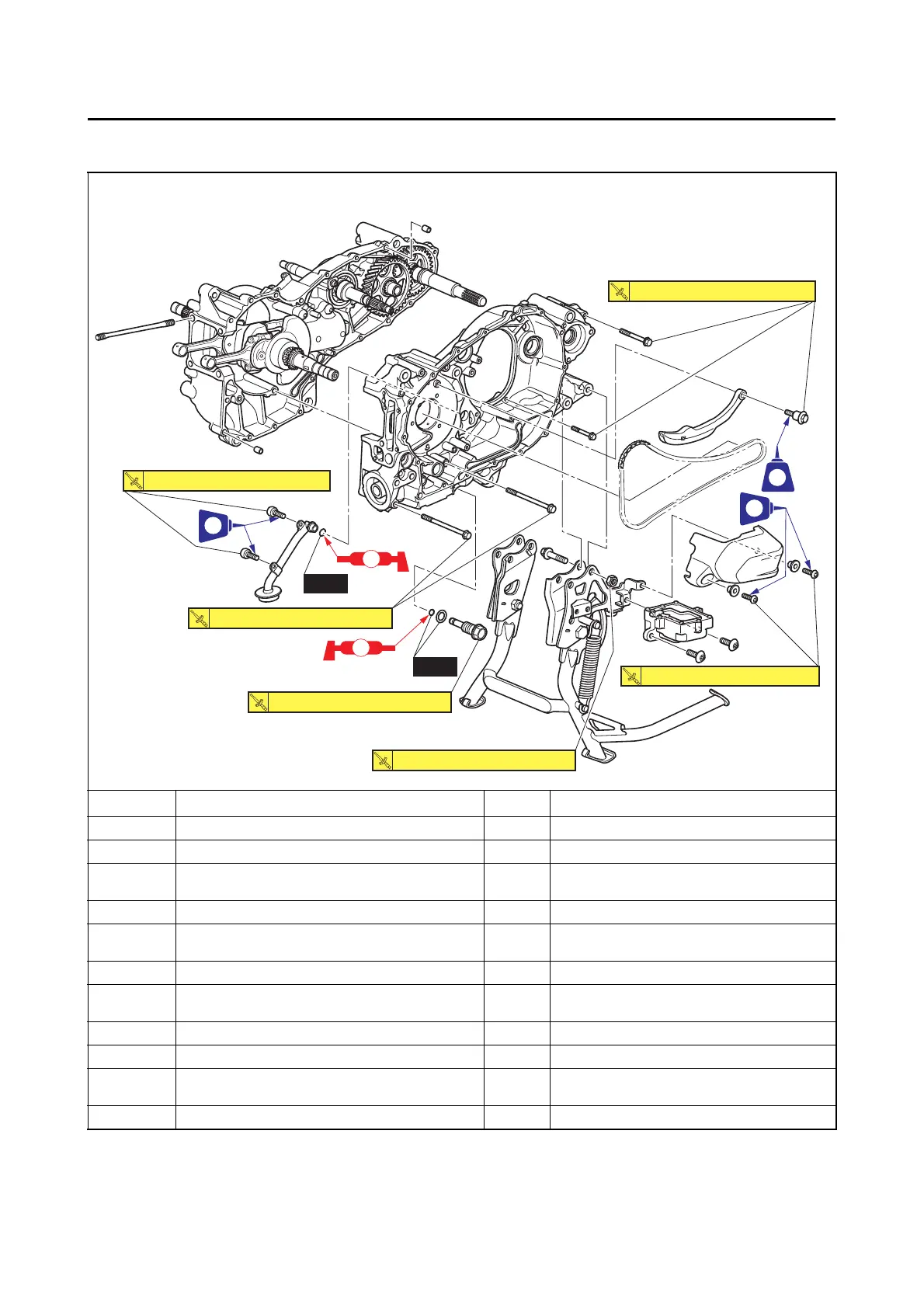

Separating the crankcase
Order Job/Parts to remove Q’ty Remarks
Engine Refer to “ENGINE REMOVAL” on page 5-7.
Cylinder head Refer to “CYLINDER HEAD” on page 5-20.
Cylinder/Pistons
Refer to “CYLINDER AND PISTONS” on
page 5-30.
Oil cooler Refer to “OIL COOLER” on page 6-7.
Starter motor
Refer to “ELECTRIC STARTER” on page 5-
35.
Water pump assembly Refer to “WATER PUMP” on page 6-11.
Generator cover/Generator rotor/Starter clutch
gear
Refer to “GENERATOR AND STARTER
CLUTCH” on page 5-49.
Clutch assembly Refer to “CLUTCH” on page 5-55.
Oil pump assembly Refer to “OIL PUMP” on page 5-63.
Outer V-belt case/Primary sheave assembly/
Secondary sheave assembly/Inner V-belt case
Refer to “V-BELT AUTOMATIC TRANSMIS-
SION” on page 5-39.
Bearing housing Refer to “SWINGARM” on page 4-100.
(3)
(3)
(6)
(6)
(8)
(5)
(2)
New
New
LT
LT
LT
LS
LS
10 N·m (1.0 kgf·m, 7.4 lb·ft)
10 N·m (1.0 kgf·m, 7.4 lb·ft)
24 N·m (2.4 kgf·m, 18 lb·ft)
43 N·m (4.3 kgf·m, 32 lb·ft)
55 N·m (5.5 kgf·m, 41 lb·ft)
7 N·m (0.7 kgf·m, 5.2 lb·ft)
