4-89
FRONT FORK
EAS30210
INSTALLING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Install:
Front fork leg
Temporarily tighten the upper and lower
bracket pinch bolts.
TIP
Make sure the outer tube is flush with the top of
the upper bracket.

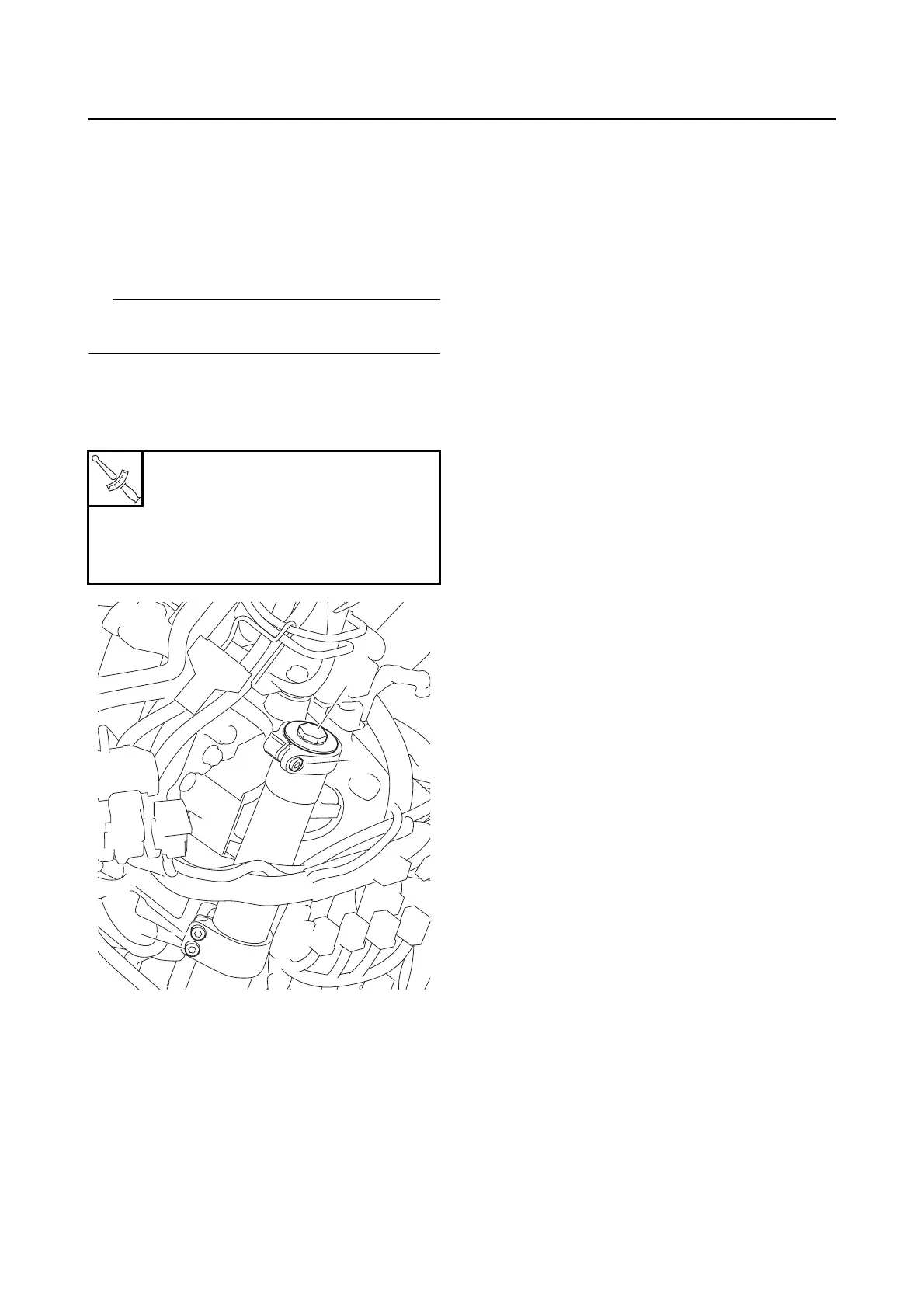

2. Tighten:
Lower bracket pinch bolt “1”
Cap bolt “2”
Upper bracket pinch bolt “3”
Lower bracket pinch bolt
23 N·m (2.3 kgf·m, 17 lb·ft)
Front fork cap bolt
23 N·m (2.3 kgf·m, 17 lb·ft)
Upper bracket pinch bolt
30 N·m (3.0 kgf·m, 22 lb·ft)
T
R
.
.
2
3
1
