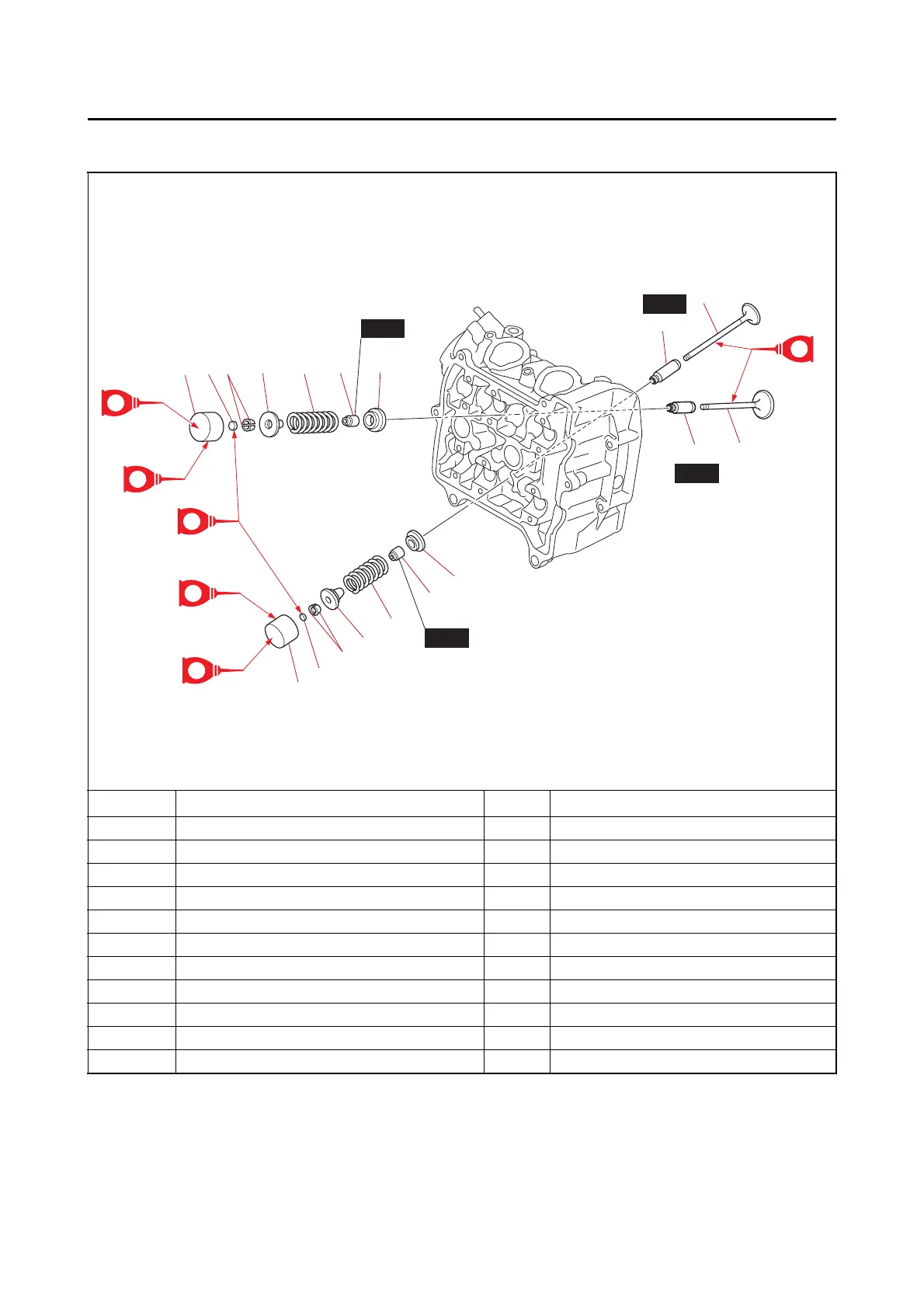

VALVES AND VALVE SPRINGS
EAS20045
VALVES AND VALVE SPRINGS
Removing the valves and valve springs
Order Job/Parts to remove Q’ty Remarks
Cylinder head Refer to “CYLINDER HEAD” on page 5-20.
1 Valve lifter 8
2 Valve pad 8
3 Valve cotter 16
4 Valve spring retainer 8
5 Valve spring 8
6 Intake valve 4
7 Exhaust valve 4
8 Valve stem seal 8
9 Valve spring seat 8
10 Valve guide 8
New
New
New
New
M
E
E
M
M
M
1
1
2
3
4
5
2 3 458
8
9
6
7
10
10
9
