5-38
ELECTRIC STARTER
EAS30326

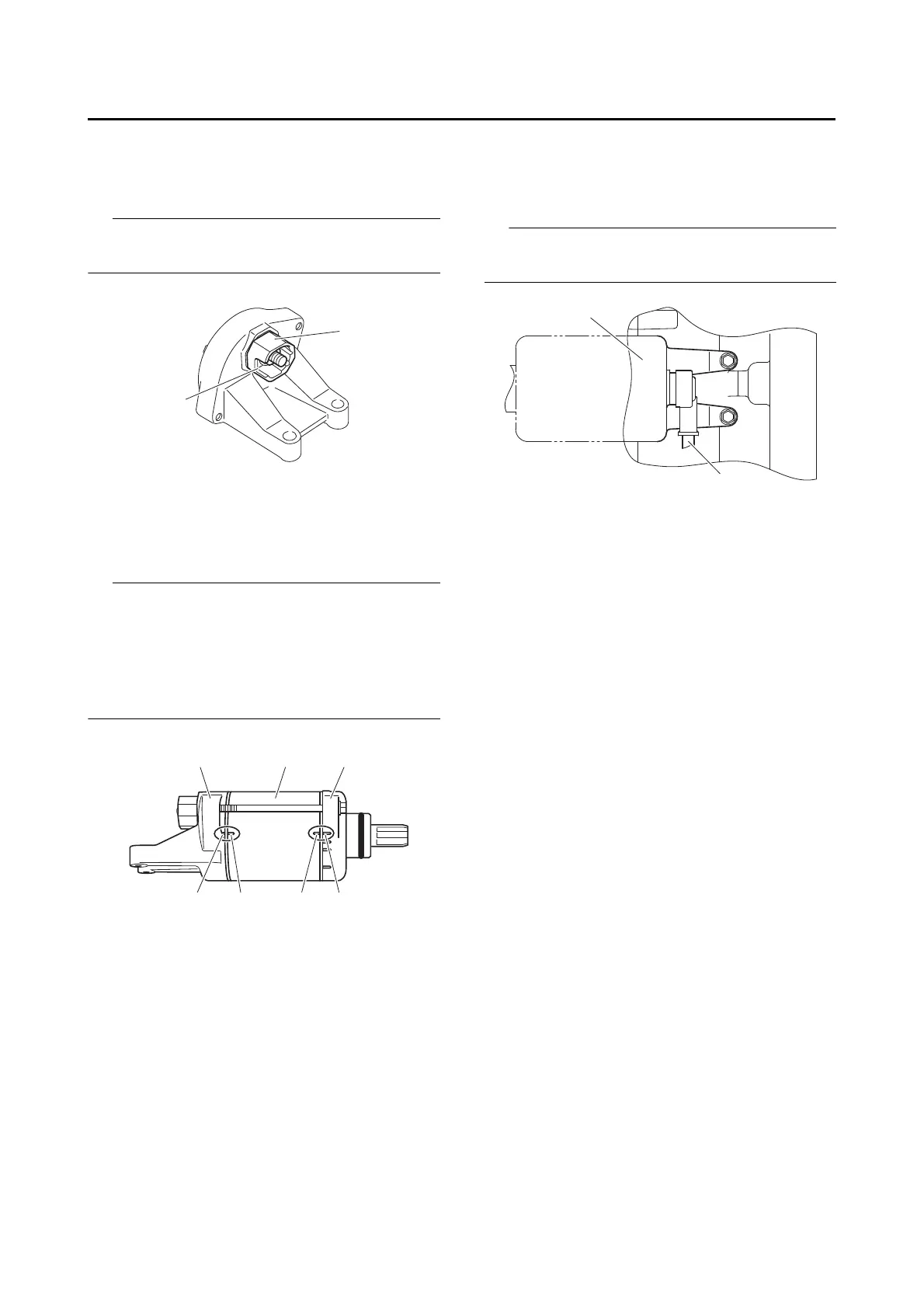

ASSEMBLING THE STARTER MOTOR
1. Install:
• Insulator “1”
TIP
Install the insulator so that the slot “a” is posi-
tioned as shown in the illustration.
2. Install:
• Starter motor yoke “1”
• Starter motor rear cover “2”
• Starter motor front cover “3”
TIP
• Align the match mark “a” on the starter motor
rear cover with the match mark “b” on the start-
er motor yoke.
• Align the match mark “c” on the starter motor
yoke with the match mark “d” on the starter mo-
tor front cover.
EAS30327
INSTALLING THE STARTER MOTOR
1. Install:
• Starter motor “1”
• Starter motor lead “2”
TIP
Connect the starter motor lead to the starter mo-
tor in the direction shown in the illustration.
a
1
2 1 3
a b c d
1
2
