5-58
CLUTCH
EAS30346

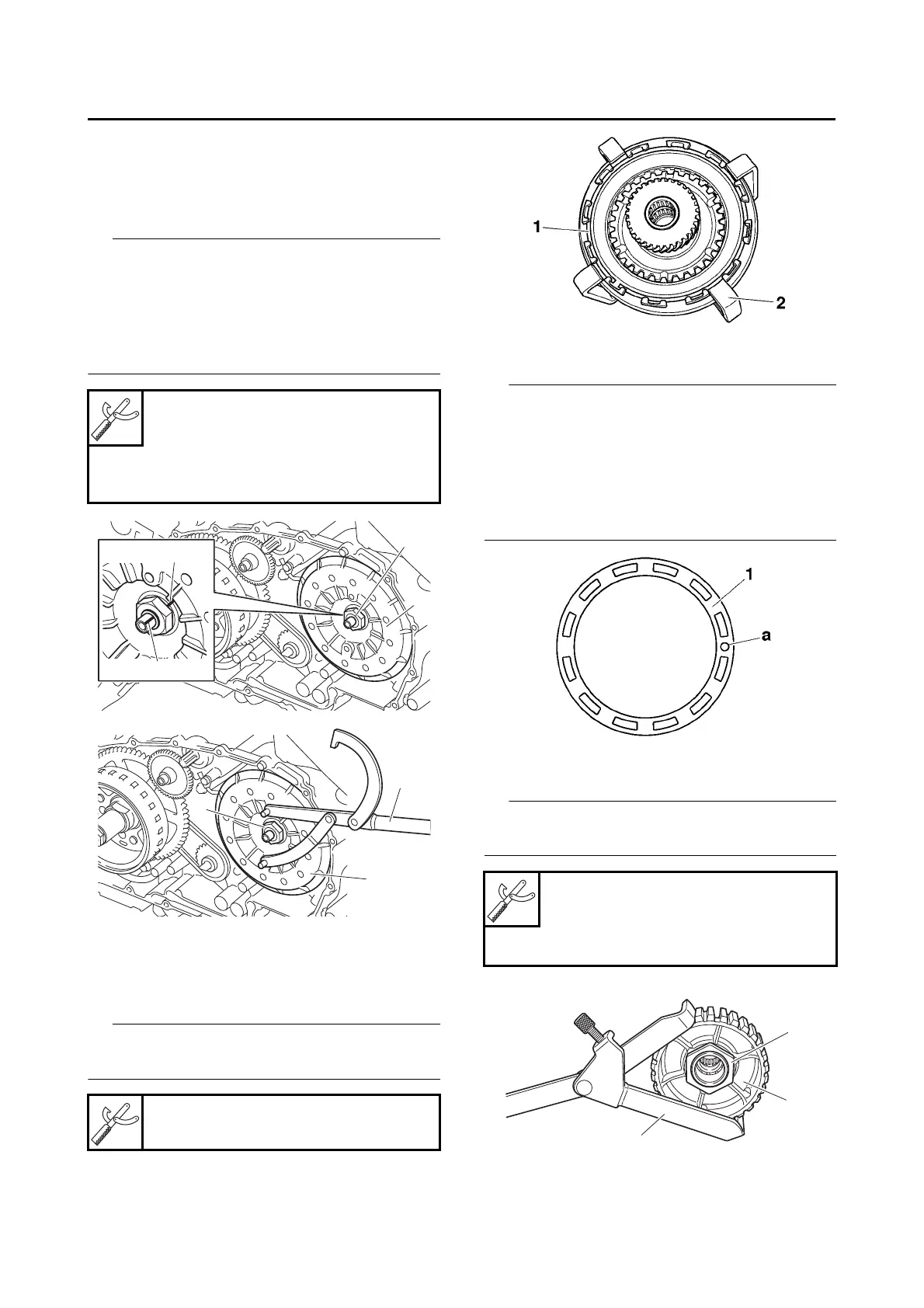

REMOVING THE CLUTCH
1. Remove:
• Clutch assembly nut “1”
• Clutch assembly “2”
• Before removal, put alignment marks “a” and
“b” as shown.
• While holding the clutch assembly with the ro-
tor holding tool “3”, loosen the clutch assembly
nut.
• Align these marks during reassembly.
EAS31441
DISASSEMBLING THE CLUTCH
1. Remove:
• Clip “1”
While compressing the clutch springs with the
clutch spring compressor “2”, remove the clip.
2. Remove:
• Spring stopper plate “1”
To ensure proper balance of the clutch assem-
bly, one to three holes “a”, or no hole at all, may
have been drilled in the spring stopper plate. Be-
fore removing the spring stopper plate, make
alignment marks on both the plate and the clutch
housing so that the plate can be reinstalled in its
original position.
3. Loosen:
• Clutch boss nut “1”
While holding the clutch boss “2” with the univer-
sal clutch holder “3”, loosen the clutch boss nut.
Rotor holding tool
90890-01235
Universal magneto and rotor
holder
YU-01235
Clutch spring compressor
90890-01482
Universal clutch holder
90890-04086
Universal clutch holder
YM-91042
