REAR BRAKE
7. Install:
• Boot
• Rear brake lock caliper arm
• Check that the boot is installed correctly.

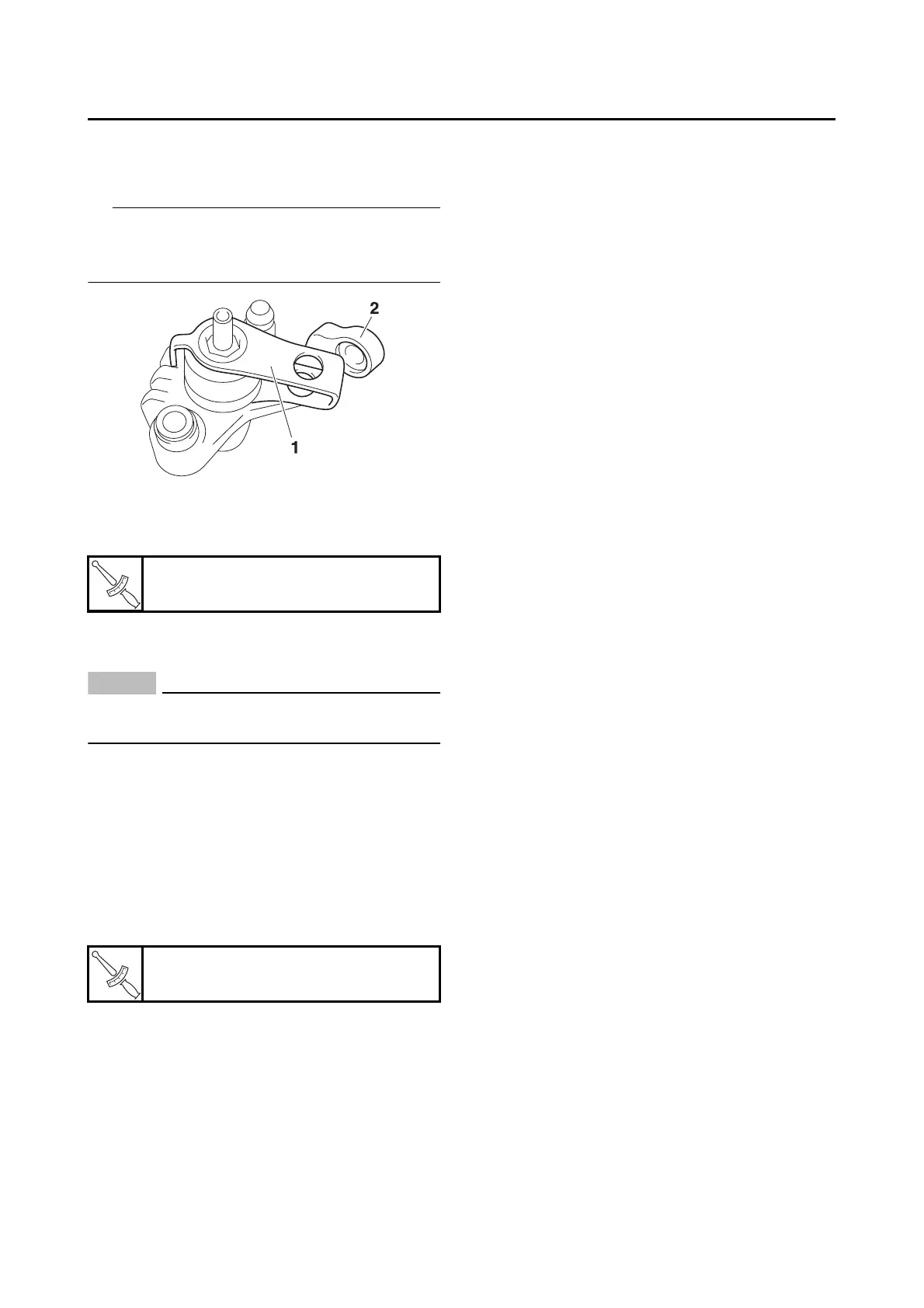

• Install rear brake lock caliper arm “1” in the po-
sition closest to cable holder “2”.
8. Install:
• Rear brake lock adjusting nut
•Cap
9. Install:
• Rear brake lock pad
ECA22120
After installing the rear brake lock pad to the
caliper, check that the pad rotates smoothly.
EAS31422
INSTALLING THE REAR BRAKE LOCK
CALIPER
1. Install:
• Rear brake lock caliper
• Rear brake lock caliper bolt
• Rear brake lock spring
•Pin
• Rear brake lock cable adjusting nut
2. Adjust:
• Rear brake lock cable length
Refer to “ADJUSTING THE REAR BRAKE
LOCK CABLE” on page 3-17.
Rear brake lock adjusting nut
15 N·m (1.5 kgf·m, 11 lb·ft)
Rear brake lock caliper bolt
23 N·m (2.3 kgf·m, 17 lb·ft)
