3-34
PERIODIC MAINTENANCE

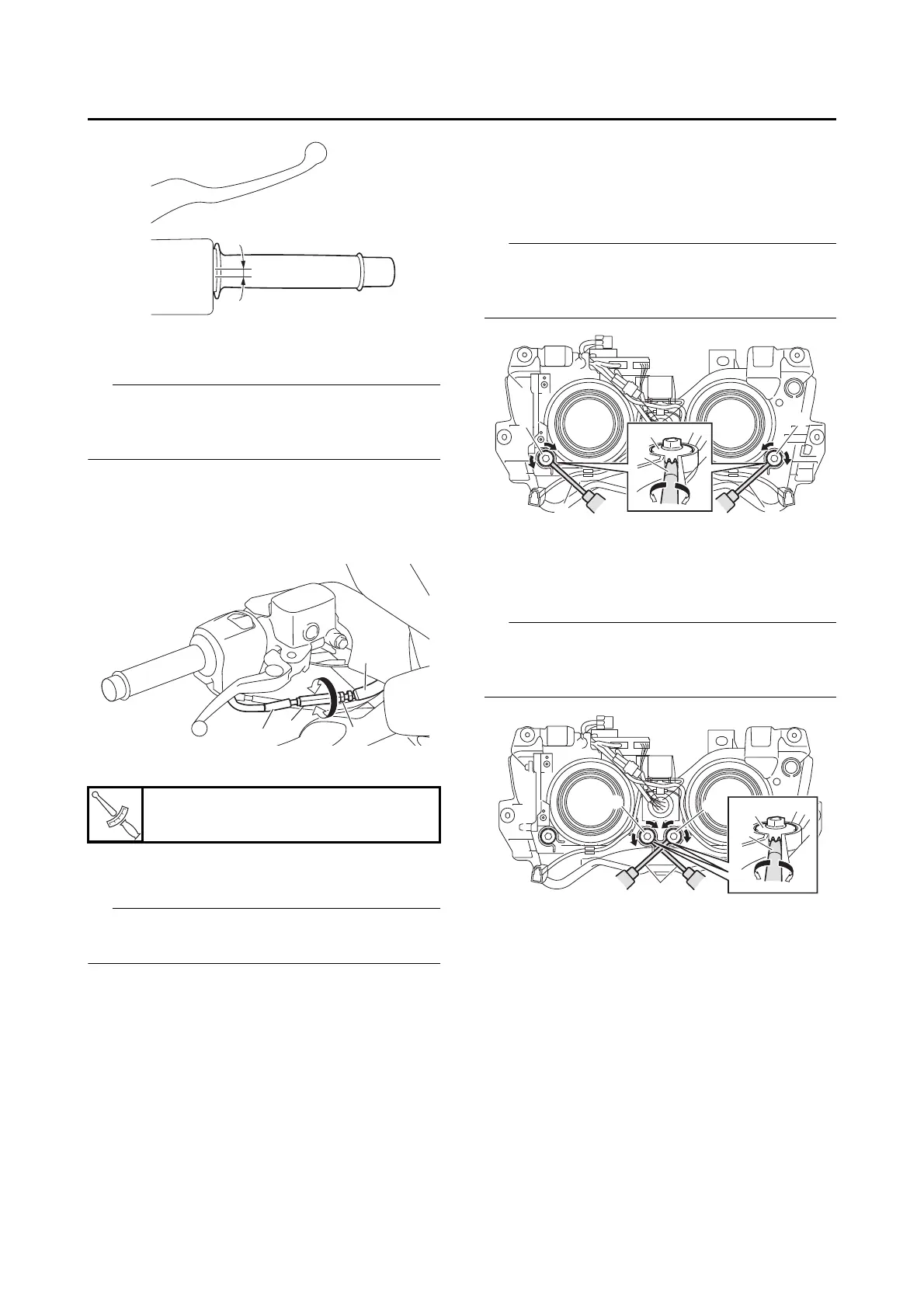

4. Adjust:
• Throttle grip free play
Prior to adjusting the throttle grip free play, throt-
tle body synchronization should be adjusted
properly.
a. Slide back the rubber covers “1”.
b. Loosen the locknut “2”.
c. Turn the adjusting nut “3” until the specified
throttle grip free play is obtained.
d. Tighten the locknut.
e. Slide the rubber covers to its original posi-
tion.
Make sure that the adjusting nut is covered com-
pletely by the rubber cover.
EAS30816
CHECKING AND CHARGING THE BATTERY
Refer to “CHECKING AND CHARGING THE
BATTERY” on page 8-94.
EAS30662
CHECKING THE FUSES
Refer to “CHECKING THE FUSES” on page 8-
93.
EAS30664
ADJUSTING THE HEADLIGHT BEAMS
1. Adjust:
• Headlight beam (vertically)
a. Turn the adjusting screw “1”.
Other than the socket wrench, the adjusting
screws can be turned with a screwdriver (Phillips
No. 2) “2” as shown in the illustration.
2. Adjust:
• Headlight beam (horizontally)
a. Turn the adjusting screw “1”.
Other than the socket wrench, the adjusting
screws can be turned with a screwdriver (Phillips
No. 2) “2” as shown in the illustration.
Throttle cable adjusting locknut
3.8 N·m (0.38 kgf·m, 2.8 lb·ft)
