6-11
WATER PUMP
EAS20066

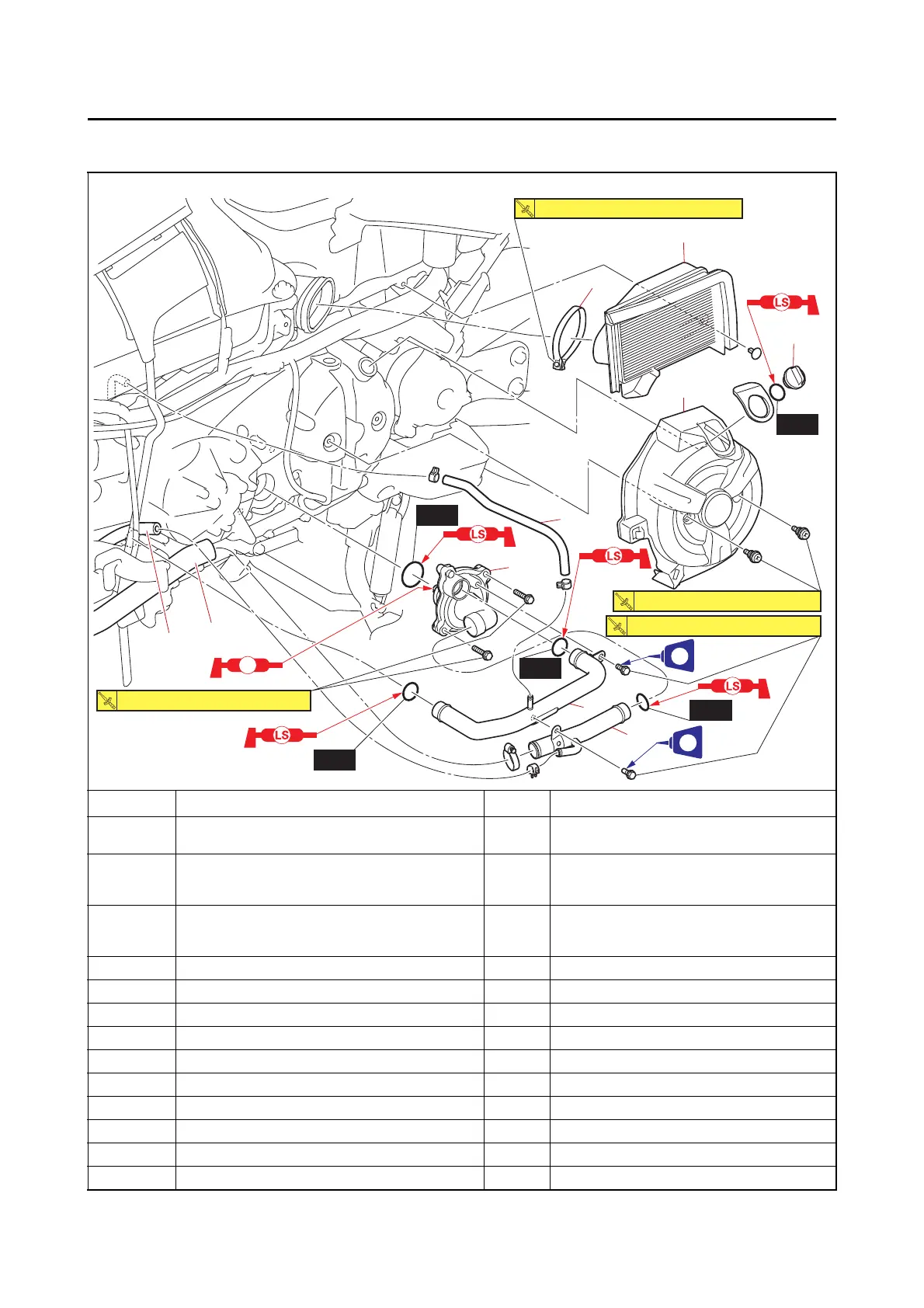

WATER PUMP
Removing the water pump
Order Job/Parts to remove Q’ty Remarks
Bottom side cowling/Side panel/Bottom center
cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover (left)/Rear side cowling assembly (left)/
Footboard (left)
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-31.
1 V-belt case air filter element joint clamp 1 Loosen.
2 V-belt case air filter element (left) 1
3 Oil filler cap 1
4 Generator cover protector 1
5 Oil cooler outlet hose 1 Disconnect.
6 Coolant hose 1 Disconnect.
7 Radiator outlet hose 1 Disconnect.
8 Water pump inlet pipe 1
9 Water pump outlet pipe 1
10 Water pump assembly 1
New
New
7
5
3
4
9
10
6
8
2
1
LT
LT
New
New
New
M
3.0 Nm (0.30 kgfm, 2.2 lbft)
7 Nm (0.7 kgfm, 5.2 lbft)
10 Nm (1.0 kgfm, 7.4 lbft)
10 Nm (1.0 kgfm, 7.4 lbft)
