6-12

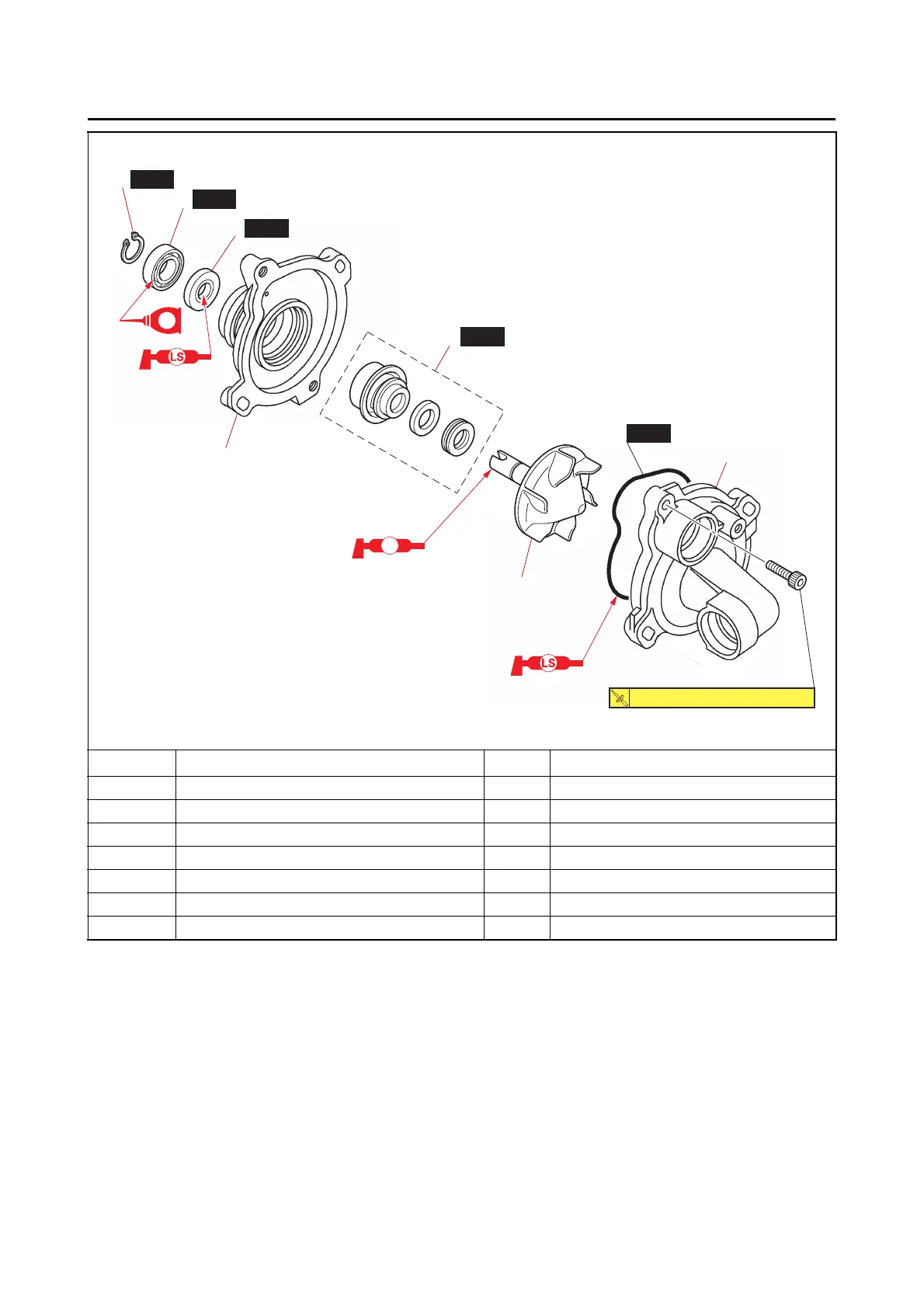

WATER PUMP
Disassembling the water pump
Order Job/Parts to remove Q’ty Remarks
1 Water pump housing cover 1
2 Circlip 1
3 Impeller shaft 1
4 Mechanical seal 1
5 Bearing 1
6 Oil seal 1
7 Water pump housing 1
M
E
New
New
New
New
New
1
2
(2)
3
4
5
6
7
10 N
•
m (1.0 kgf
•
m, 7.4 lb
•
ft)
T.R.
