5-55
CLUTCH
EAS20055
CLUTCH

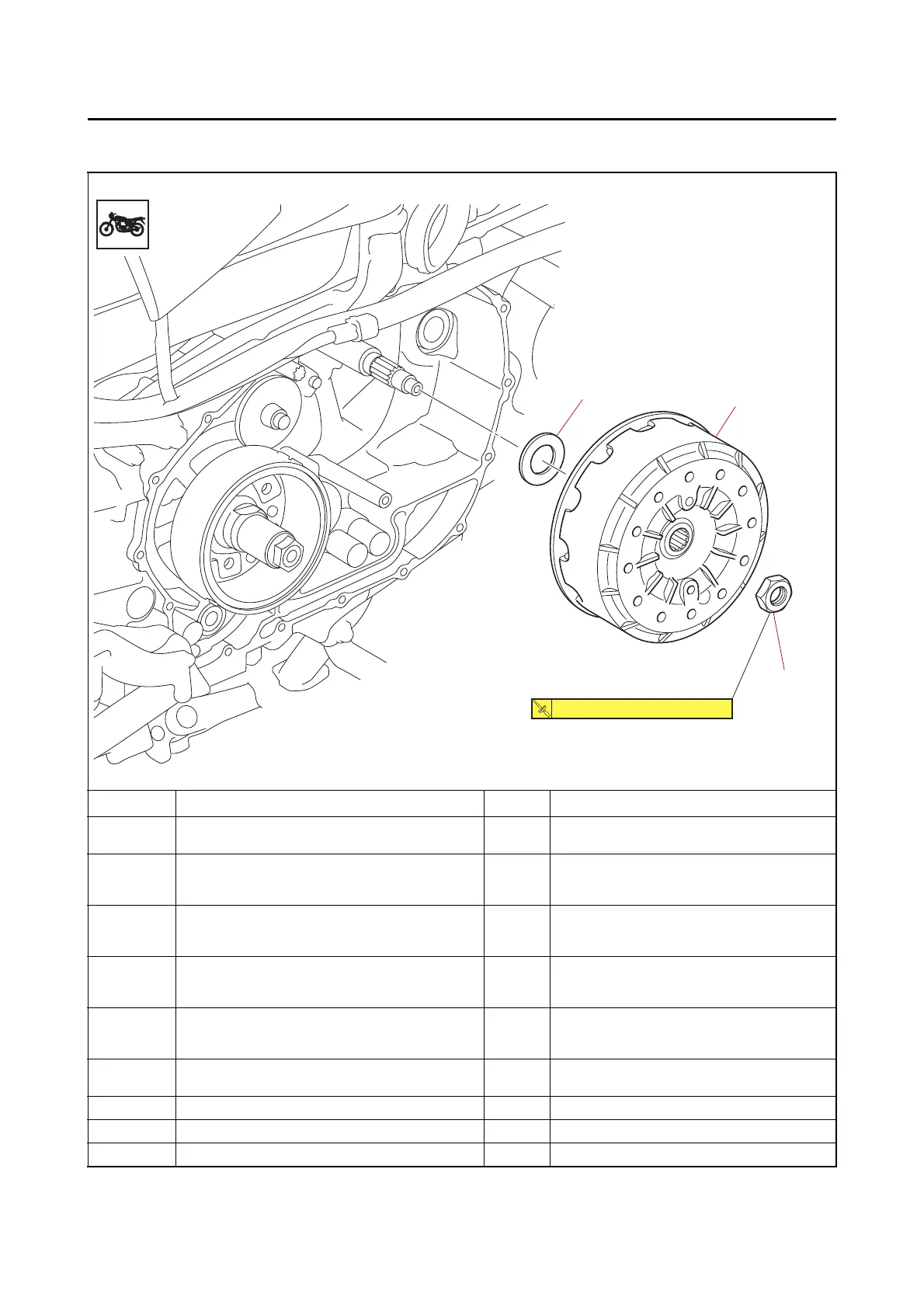

Removing the clutch
Order Job/Parts to remove Q’ty Remarks
Bottom side cowling/Side panel/Bottom center
cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover (left)/Rear side cowling assembly (left)/
Footboard (left)
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-27.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-31.
V-belt case air filter element (left)/Generator
cover protector/Water pump inlet pipe/Water
pump outlet pipe/Water pump assembly
Refer to “WATER PUMP” on page 6-11.
Generator cover
Refer to “GENERATOR AND STARTER
CLUTCH” on page 5-49.
1 Clutch assembly nut 1
2 Clutch assembly 1
3Washer 1
1
2
3
65 N
•
m (6.5 kgf
•
m, 48 lb
•
ft)
T.R.
