Yamaha TMAX TECH MAX 2020 User Manual

5-56
CLUTCH

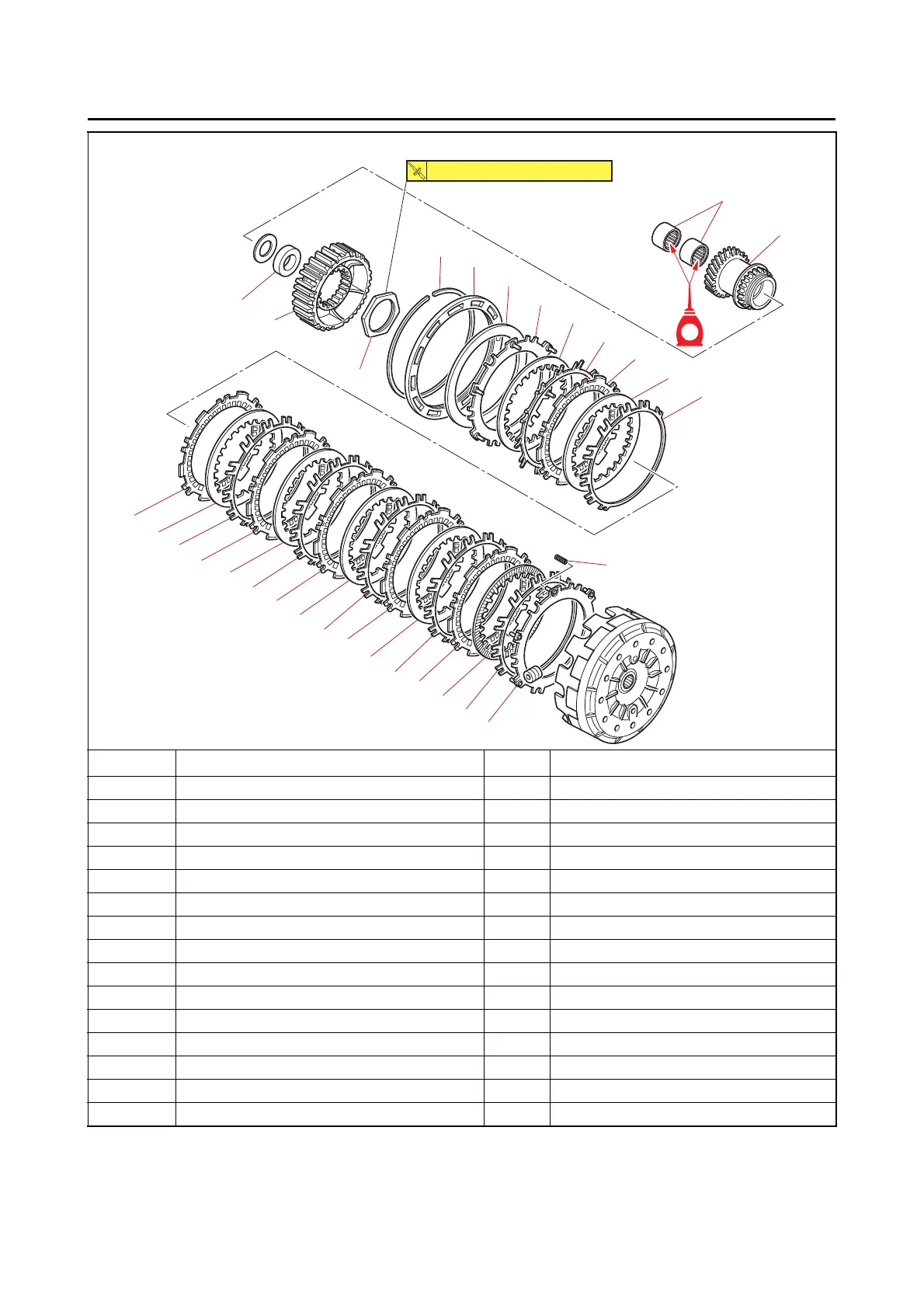

Disassembling the clutch
Order Job/Parts to remove Q’ty Remarks
1 Clip 1
2 Spring stopper plate 1
3 Clutch spring plate 1
4 Pressure plate 1
5 Clutch plate 2 2
6 Clutch damper spring 7
7 Friction plate 6
8 Clutch plate 1 5
9 Clutch spring 6
10 Thrust plate 1
11 Clutch boss nut 1
12 Primary drive gear 1
13 Bearing 2
14 Clutch boss 1
15 Collar 1
1
2
3
4
5
5
6
6
6
6
6
6
6
7
7
7
7
7
7
8
9
(6)
10
11
12
13
14
15
8
8
8
8
E
130 N
•
m (13 kgf
•
m, 96 lb
•
ft)
T.R.
