4-21
GENERAL CHASSIS (3)
EAS31850

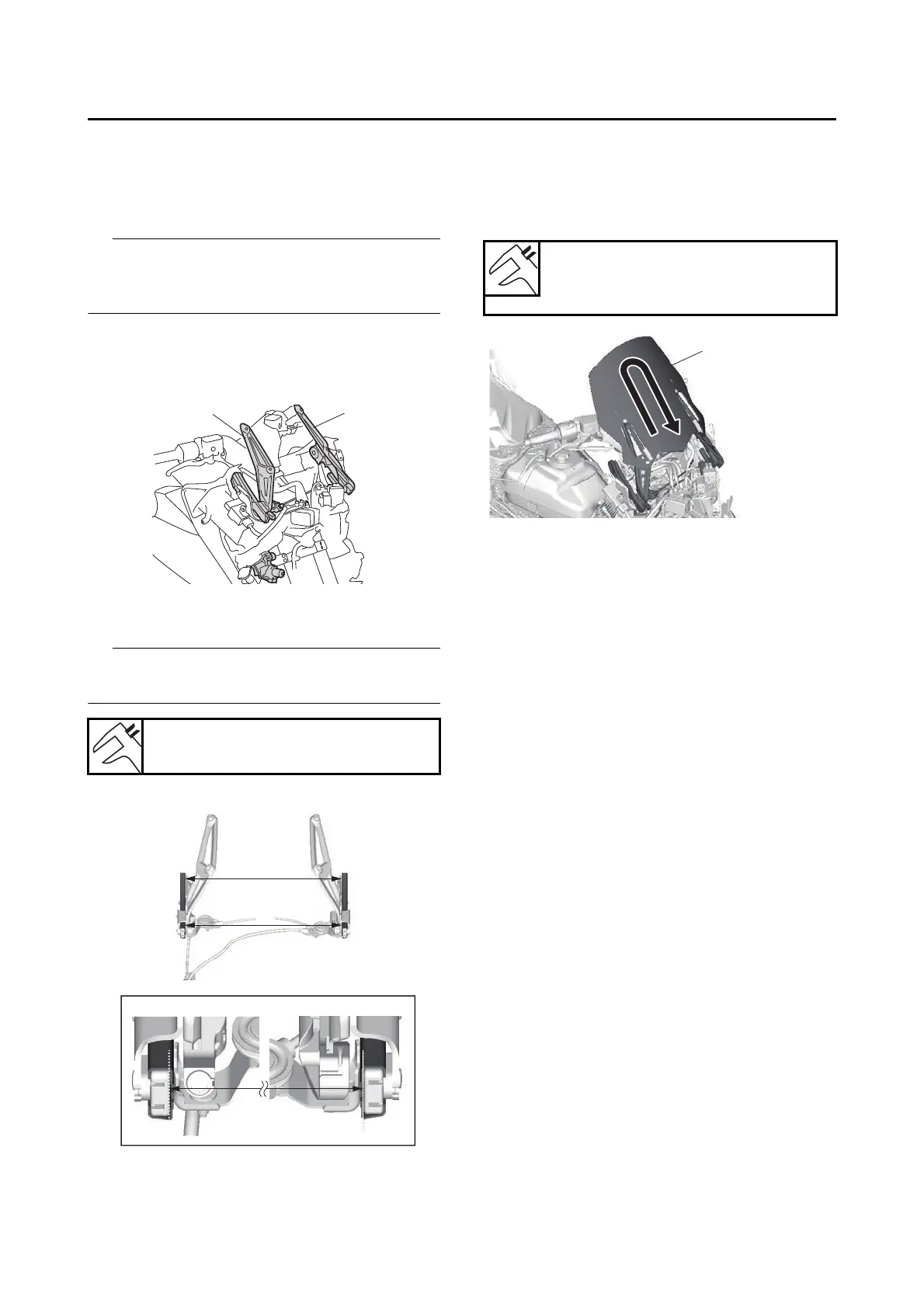

INSTALLING THE WINDSHIELD DRIVE UNIT
(for XP560D)
1. Check:
• Windshield drive unit operation
After installing the windshield drive unit to the
headlight bracket, check the operation of the
drive unit.
a. Install the windshield drive unit “1”, and then
connect the windshield drive unit coupler to
the wire harness.
b. Adjust the distances, at the top “a” and bot-
tom “b” of the rails, so they are the same.
Refer to the illustration below for the positions to
measure “c”.
c. After installing the windshield “1”, operate
the windshield drive unit to check that the
arm of the windshield drive unit can move
fully up and down within the prescribed
time.
Rail dimensions (top and bottom)
408 mm (16.1 in)
Specified operation time (time re-
quired to move up or down)
1.9–3.8 seconds
