4-63
REAR BRAKE
NOTICE
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
4. Bleed:
Brake system
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-16.
5. Check:
Brake fluid level
Below the minimum level mark Add the
specified brake fluid to the proper level.
Refer to “CHECKING THE BRAKE FLUID
LEVEL” on page 3-14.
6. Check:
Brake lever operation
Soft or spongy feeling Bleed the brake sys-
tem.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-16.
EAS31417

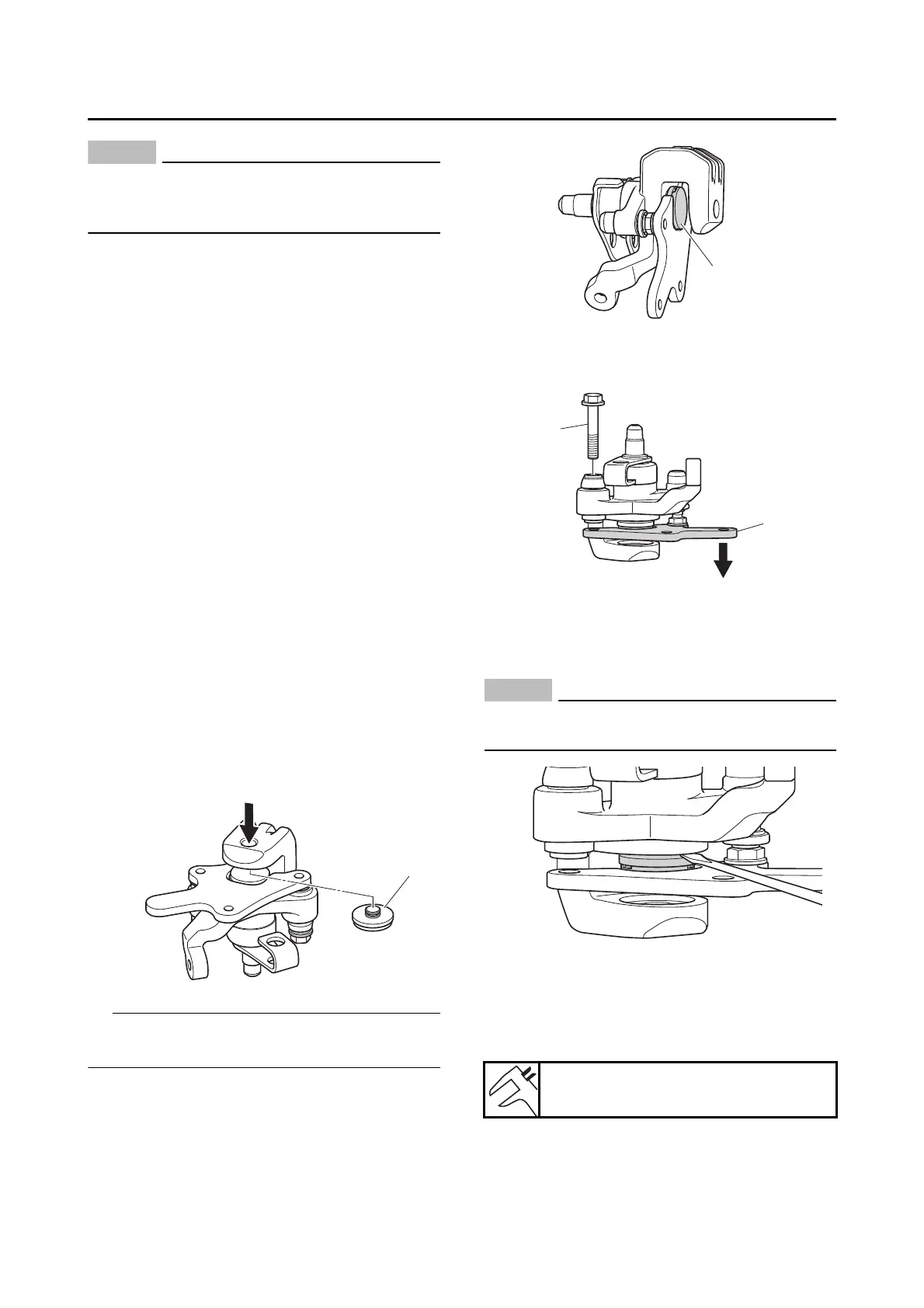

REPLACING THE REAR BRAKE LOCK PADS
1. Remove:
Rear brake lock cable adjusting nut
•Pin
Rear brake lock spring
2. Remove:
Rear brake lock caliper bolt
Rear brake lock caliper
3. Remove:
Rear brake lock pad (left side) “1”
TIP
Push on the back of the pad using a rod with a
round end.
4. Remove:
Rear brake lock pad (right side) “1”
a. Remove the bolt “2”, and then slide the rear
brake lock caliper bracket “3”.
b. Insert a flathead screwdriver in between the
piston adjusting bolt and rear brake lock
pad and then remove the rear brake lock
pad.
NOTICE
ECA22110
Avoid scratching the dust seal on the side of
the piston adjusting bolt carefully.
5. Measure:
Rear brake lock pads wear limit “a”
Out of specification Replace the rear brake
lock pads.
1
Brake pad lining thickness limit
0.8 mm (0.03 in)
1
3
2
