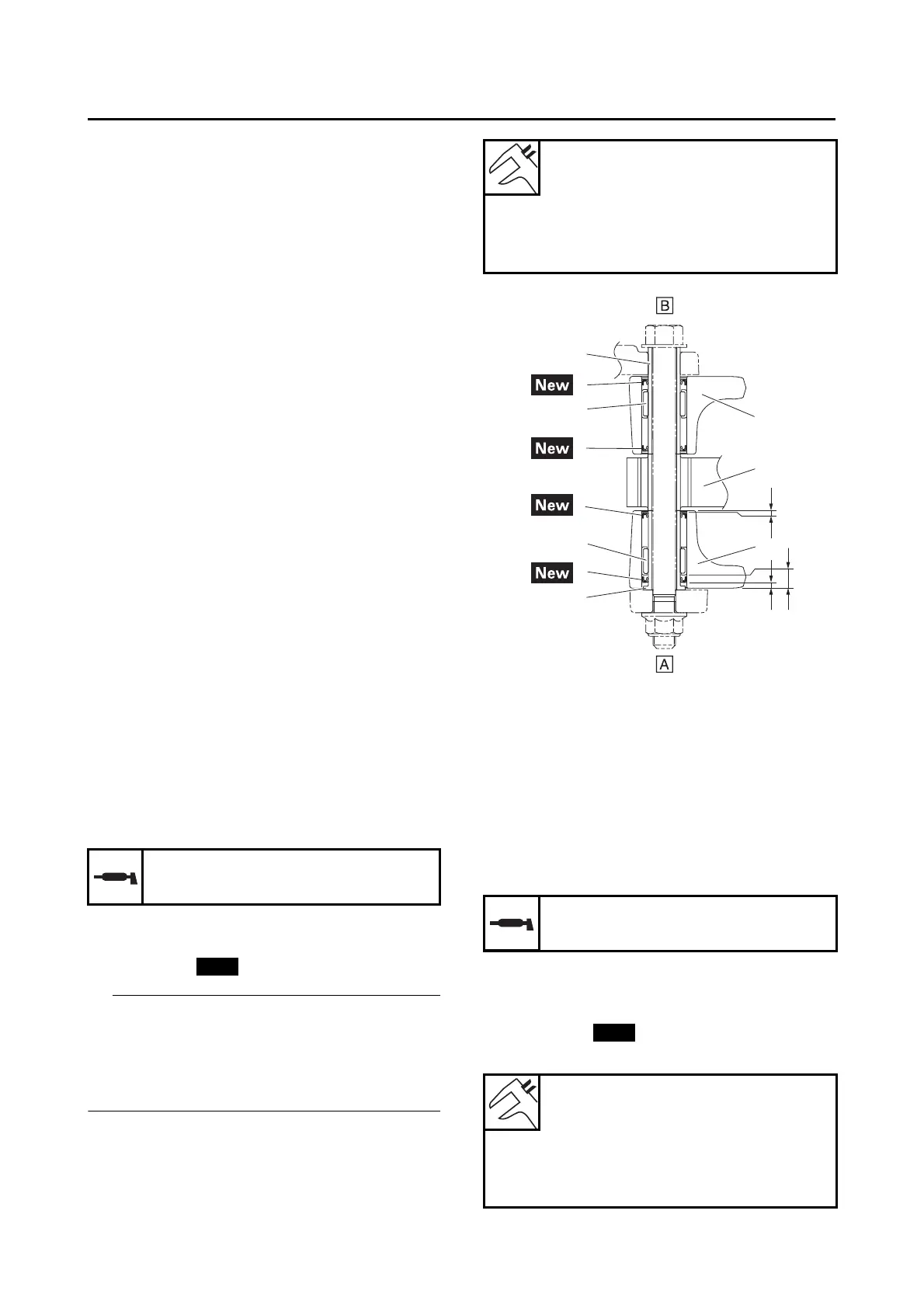

4-98
REAR SHOCK ABSORBER ASSEMBLY
EAS30220
CHECKING THE REAR SHOCK ABSORBER
ASSEMBLY
1. Check:
Rear shock absorber rod
Bends/damage Replace the rear shock
absorber assembly.
Rear shock absorber assembly
Gas leaks/oil leaks Replace the rear shock
absorber assembly.
•Spring
Damage/wear Replace the rear shock ab-
sorber assembly.
Bearing
•Bolt
Bends/damage/wear Replace.
EAS30221
CHECKING THE CONNECTING ARM AND
RELAY ARM
1. Check:
Connecting arm
Relay arm
Damage/wear Replace.
2. Check:
Bearing
Oil seal
Damage/pitting Replace.
3. Check:
Collar
Damage/scratches Replace.
EAS32420
ASSEMBLING THE CONNECTING ARM
1. Lubricate:
Collar
Oil seal
2. Install:
Bearing “1”
Oil seal “2”
TIP
When installing the oil seals “2” to the connect-
ing arms “3”, face the character stamp of the oil
seals outside.
Install the bearing to the connecting arm by
pressing the character stamped side.
EAS30222
INSTALLING THE RELAY ARM
1. Lubricate:
Collar
Oil seal
2. Install:
Bearing “1”
(to the relay arm)
Oil seal “2”
(to the relay arm)
Recommended lubricant
Lithium-soap-based grease
New
Installed depth “a”
7 mm (0.28 in)
Installed depth “b”
0.5–1.5 mm (0.02–0.06 in)
Installed depth “c”
2.5–3.5 mm (0.10–0.14 in)
4. Collar
5. Rear shock absorber assembly
A. Left side
B. Right side
Recommended lubricant
Lithium-soap-based grease
Installed depth “a”
6.5 mm (0.26 in)
Installed depth “b”
6 mm (0.24 in)
Installed depth “c”
1.0–2.0 mm (0.04–0.08 in)
1
2
2
3
3
4
1
2
2
4
5
a
b
c
New
