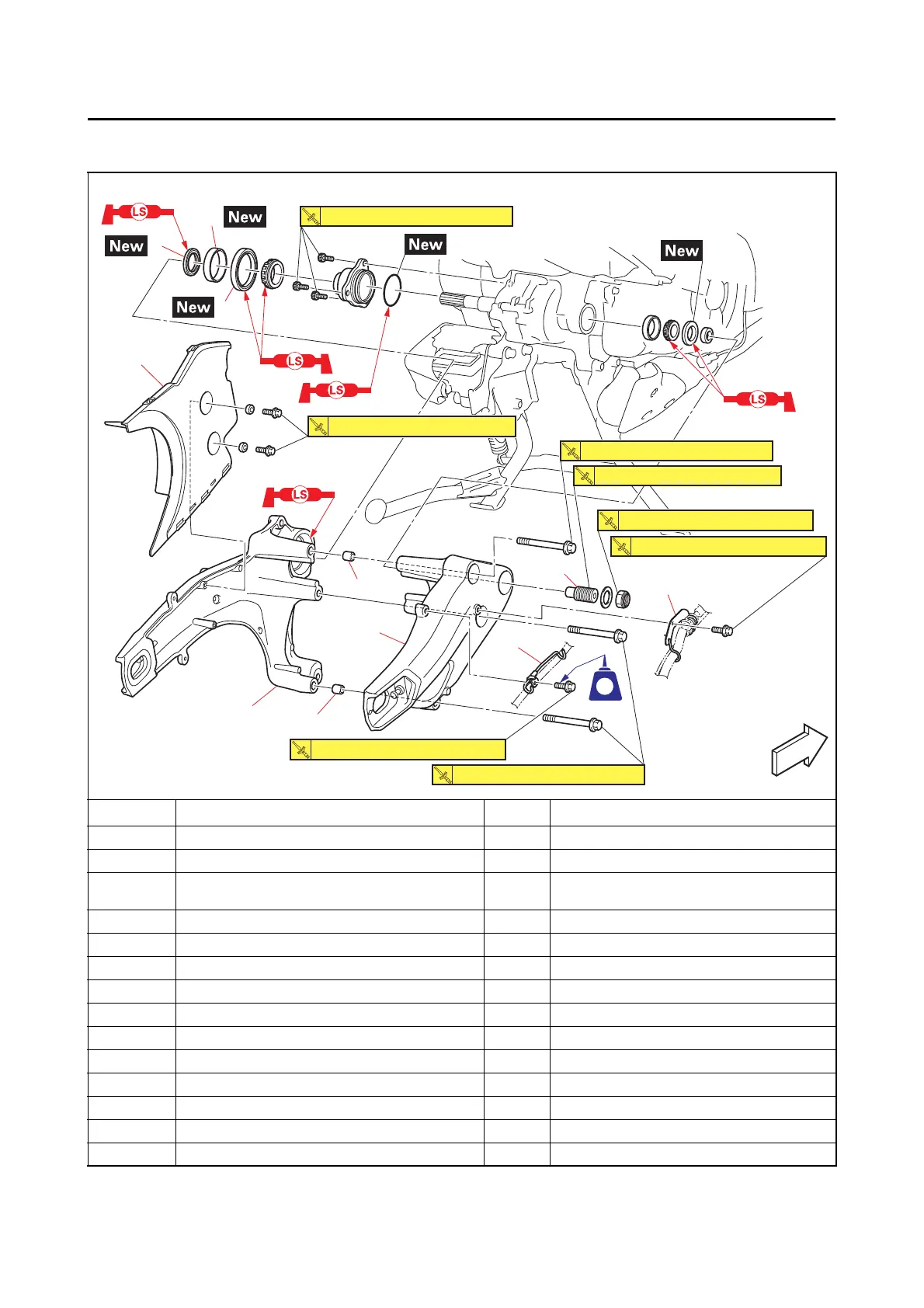

4-100
SWINGARM
EAS20037
SWINGARM
Removing the swingarm
Order Job/Parts to remove Q’ty Remarks
Rear brake caliper/Rear brake lock caliper Refer to “REAR BRAKE” on page 4-50.
Rear wheel Refer to “REAR WHEEL” on page 4-30.
Rear shock absorber assembly
Refer to “REAR SHOCK ABSORBER
ASSEMBLY” on page 4-96.
Drive belt Refer to “BELT DRIVE” on page 4-94.
1Holder 1
2Holder 1
3 Drive belt inner guard 1
4 Swingarm (left) 1
5 Swingarm (right) 1
6 Dowel pin 2
7 Pivot shaft 1
8 Oil seal 1
9 Oil seal 1
10 Outer race 1
FWDFWD
LT
1
2
3
4
5
6
7
8
9
10
6
7 Nm (0.7 kgfm, 5.2 lbft)
6 Nm (0.6 kgfm, 4.4 lbft)
10 Nm (1.0 kgfm, 7.4 lbft)
10 Nm (1.0 kgfm, 7.4 lbft)
30 Nm (3.0 kgfm, 22 lbft)
40 Nm (4.0 kgfm, 30 lbft)
40 Nm (4.0 kgfm, 30 lbft)
100 Nm (10 kgfm, 74 lbft)
