4-81
FRONT FORK
EAS20034

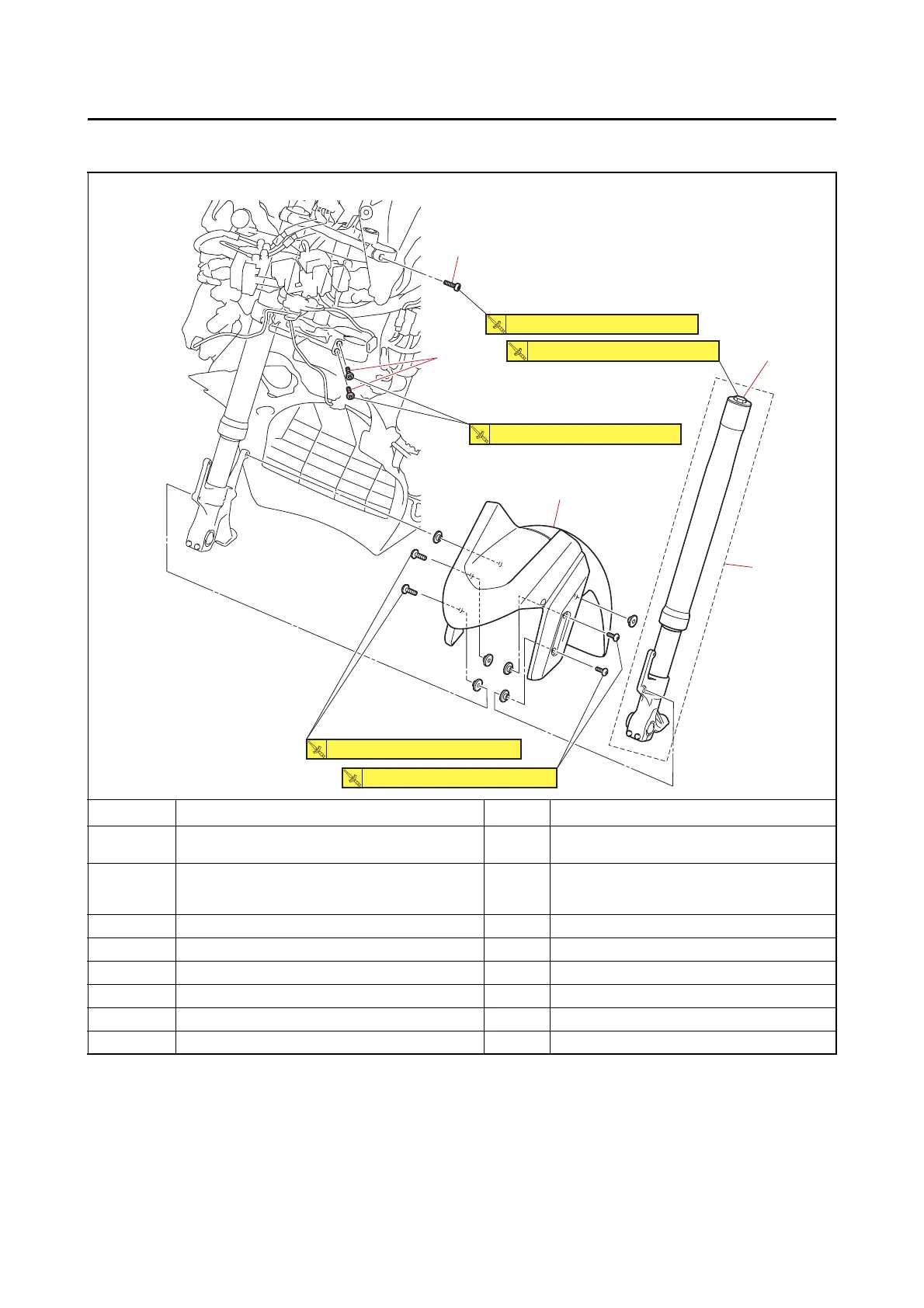

FRONT FORK
Removing the front fork legs
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front fork legs.
Windshield/Front cover/Rearview mirror/Wind-
shield inner panel/Meter assembly/Bottom side
cowling/Side panel/Front cowling assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Front wheel Refer to “FRONT WHEEL” on page 4-22.
1 Front fender 1
2 Upper bracket pinch bolt 1 Loosen.
3 Cap bolt 1 Loosen.
4 Lower bracket pinch bolt 2 Loosen.
5 Front fork leg 1
1
2
4
3
5
14 N・m (1.4 kgf・m, 10 lb・ft)
14 N・m (1.4 kgf・m, 10 lb・ft)
23 N・m (2.3 kgf・m, 17 lb・ft)
23 N・m (2.3 kgf・m, 17 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
To Next Page
