4-82
FRONT FORK

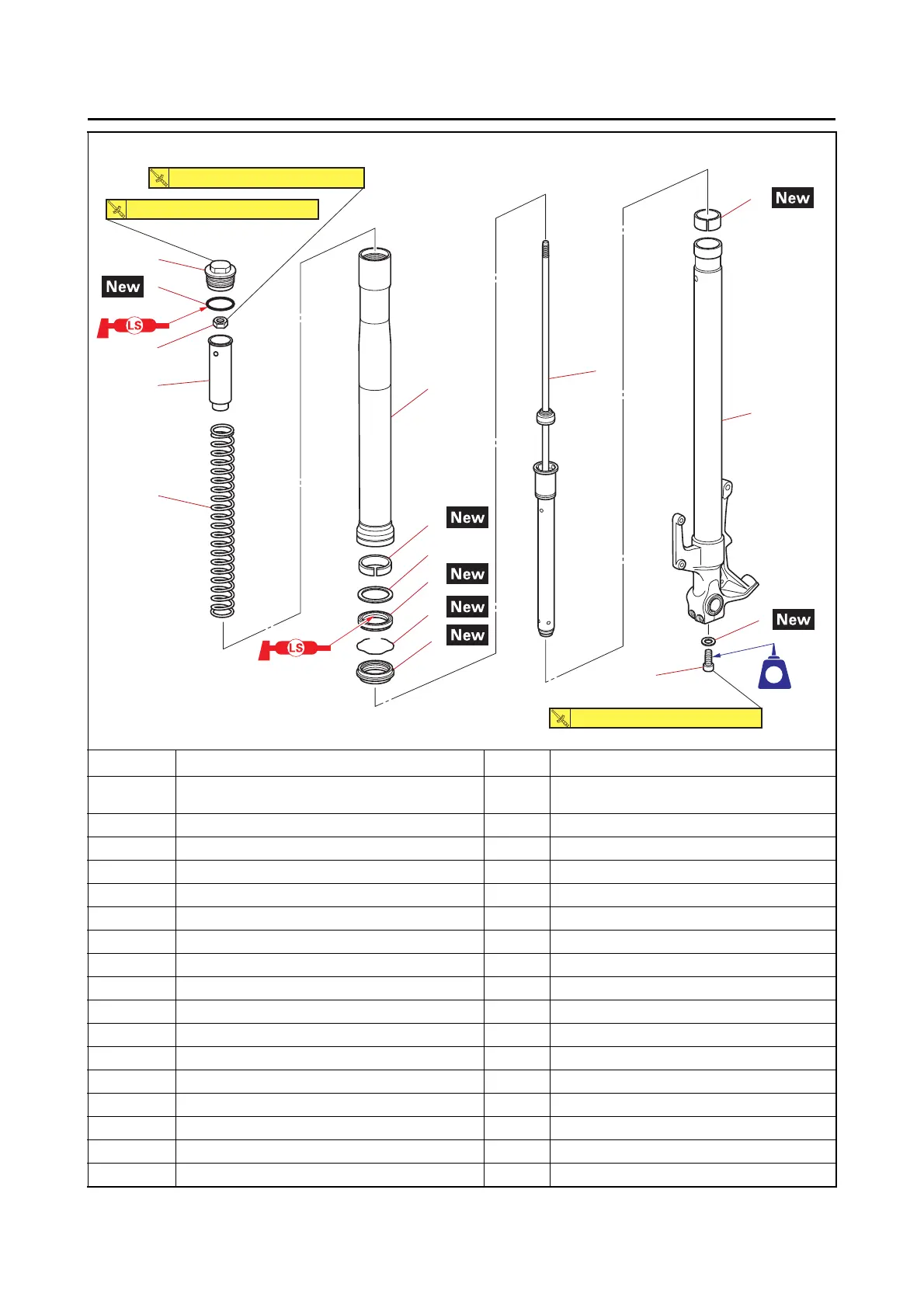

Disassembling the front fork legs
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front fork legs.
1 Cap bolt 1
2 O-ring 1
3 Damper rod locknut 1
4 Spacer 1
5 Fork spring 1
6 Damper rod assembly bolt 1
7 Copper washer 1
8 Damper rod assembly 1
9 Dust seal 1
10 Oil seal clip 1
11 Outer tube 1
12 Oil seal 1
13 Washer 1
14 Outer tube bushing 1
15 Inner tube bushing 1
16 Inner tube 1
1
2
3
4
5
7
6
9
10
15
16
8
12
14
13
11
LT
15 N・m (1.5 kgf・m, 11 lb・ft)
23 N・m (2.3 kgf・m, 17 lb・ft)
23 N・m (2.3 kgf・m, 17 lb・ft)
To Next Page
