4-94
BELT DRIVE
EAS20039

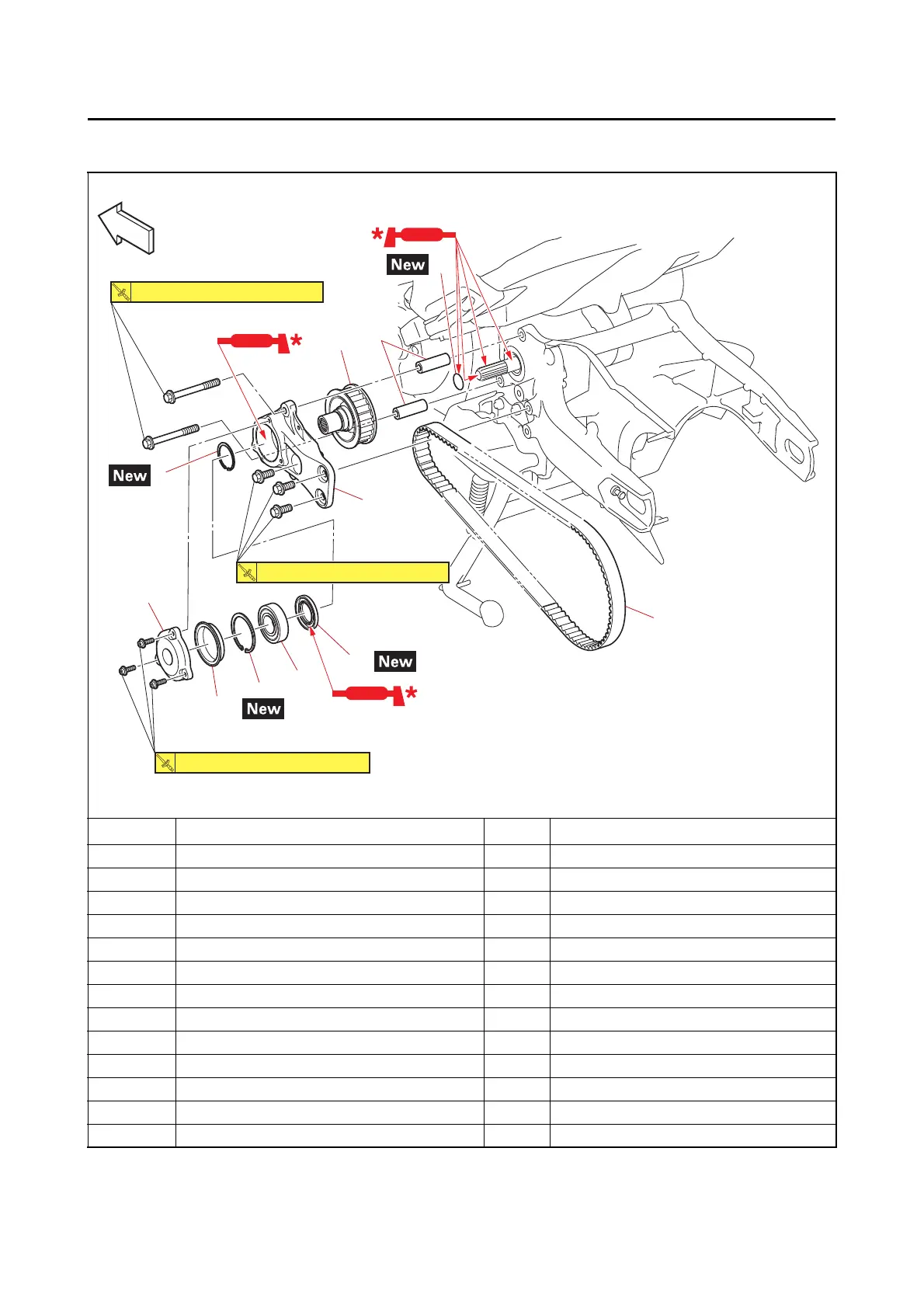

BELT DRIVE
Removing the drive belt
* Filling the YAMAHA GREASE “J” (Shell Alvania EP Grease R0®).
Order Job/Parts to remove Q’ty Remarks
Rear brake caliper/Rear brake lock caliper Refer to “REAR BRAKE” on page 4-50.
Rear wheel Refer to “REAR WHEEL” on page 4-30.
1 Drive pulley cover 1
2Dust cover 1
3Holder 1
4Collar 2
5 Circlip 1
6 Drive pulley 1
7 O-ring 1
8 Circlip 1
9 Bearing 1
10 Oil seal 1
11 Drive belt 1
FWDFWD
1
2
3
8
9
10
6
4
11
7
5
10 Nm (1.0 kgfm, 7.4 lbft)
48 Nm (4.8 kgfm, 35 lbft)
48 Nm (4.8 kgfm, 35 lbft)
