Yamaha TMAX TECH MAX 2020 - CYLINDER AND PISTONS

5-30
CYLINDER AND PISTONS
EAS20046
CYLINDER AND PISTONS

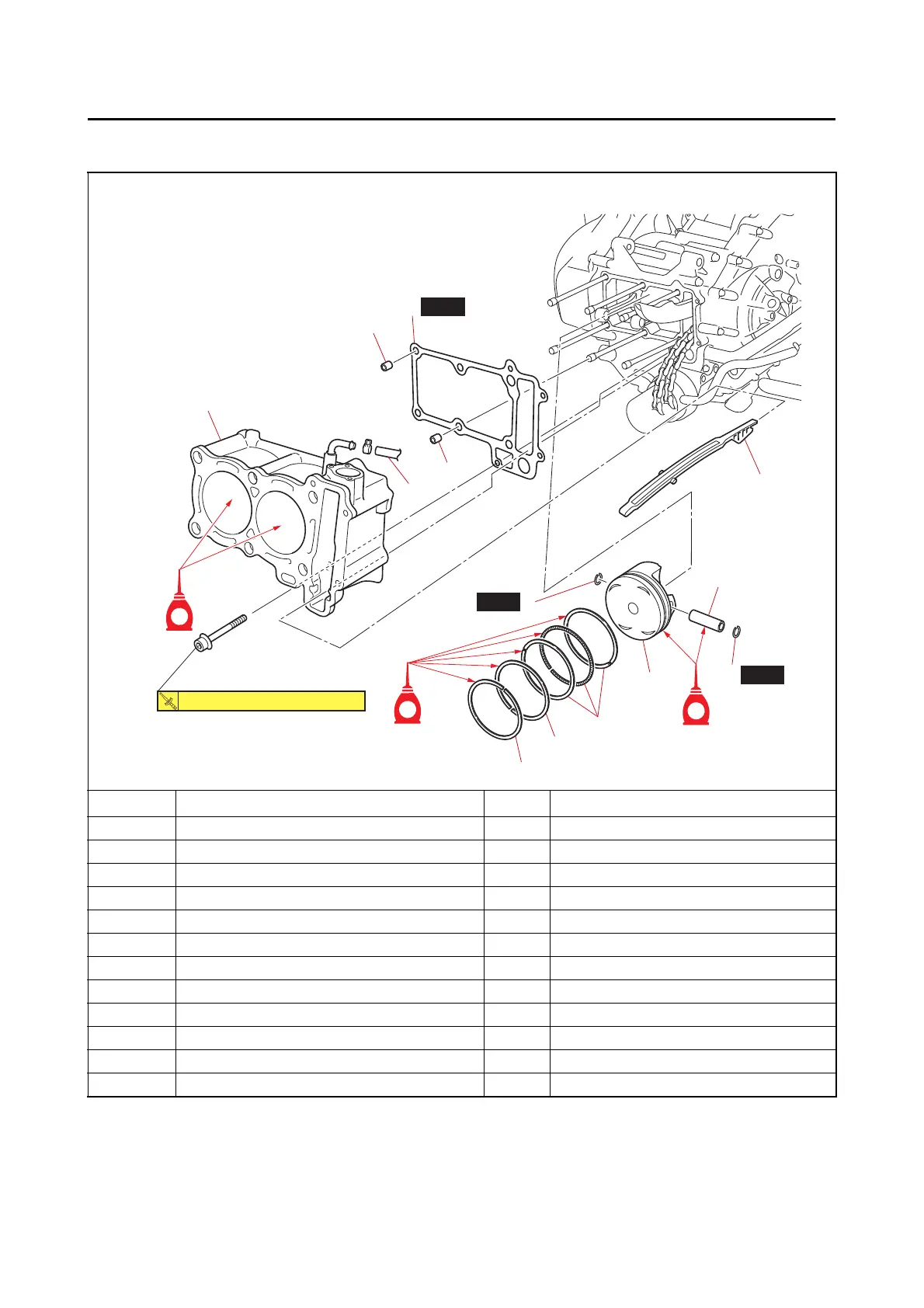

Removing the cylinder and pistons
Order Job/Parts to remove Q’ty Remarks
Cylinder head Refer to “CYLINDER HEAD” on page 5-20.
1 Coolant hose 1 Disconnect.
2 Timing chain guide (exhaust side) 1
3 Cylinder 1
4 Cylinder gasket 1
5 Dowel pin 2
6 Piston pin clip 4
7 Piston pin 2
8Piston 2
9Top ring 2
10 2nd ring 2
11 Oil ring 2
5
4
2
7
8
6
6
11
10
9
3
1
5
New
New
New
E
E
E
10 N·m (1.0 kgf·m, 7.4 lb·ft)
