3-31
PERIODIC MAINTENANCE
• Radiator cover
• Side panel
• Bottom side cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
EAS30813

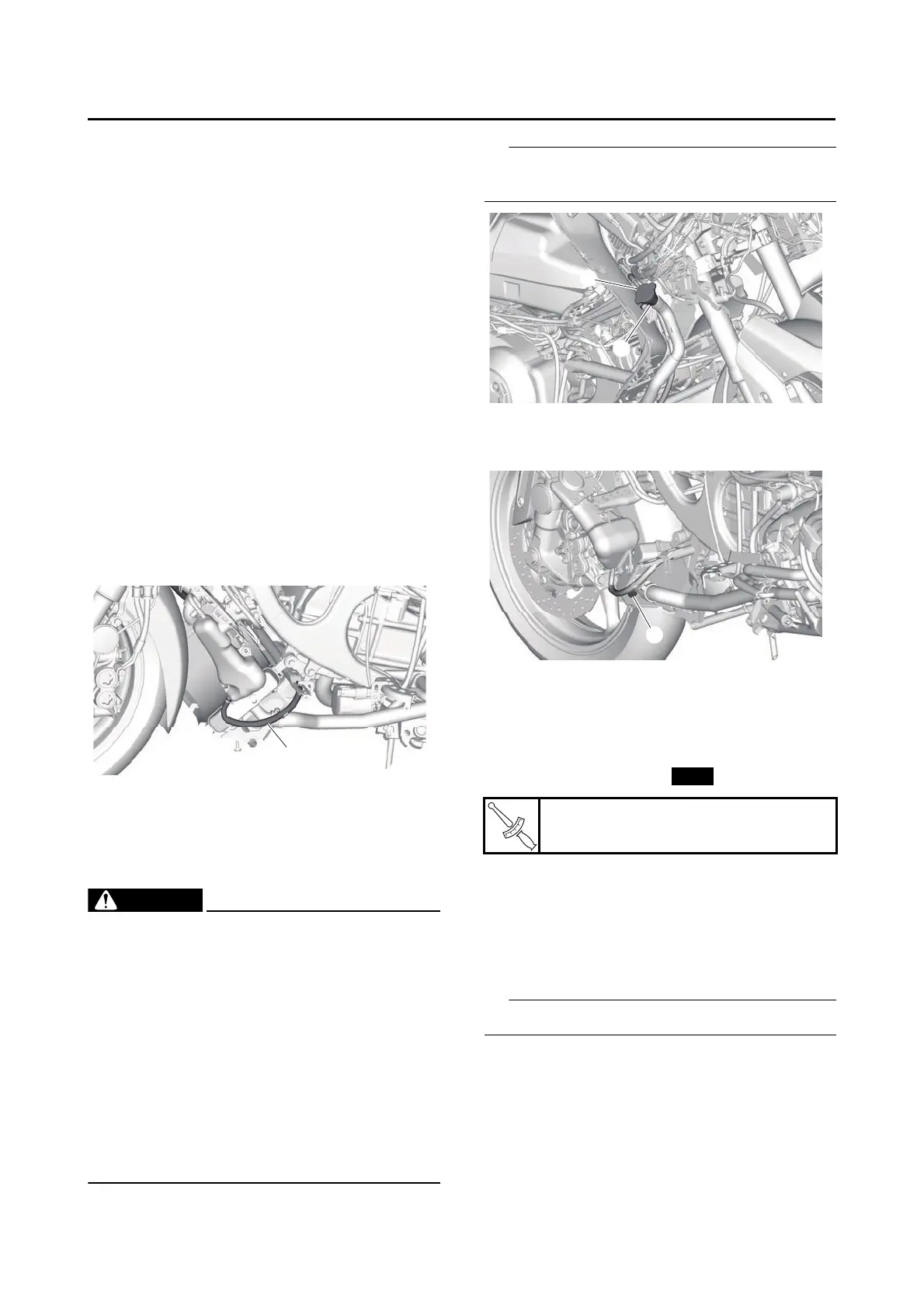

CHANGING THE COOLANT
1. Remove:
• Bottom side cowling
• Side panel
• Bottom center cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
• Center cover
• Fuel tank cover assembly
• Side cover
• Rear side cowling assembly
• Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
2. Disconnect:
• Coolant reservoir hose “1”
3. Drain:
• Coolant
(from the coolant reservoir)
4. Remove:
• Radiator cap “1”
EWA13030
A hot radiator is under pressure. Therefore,
do not remove the radiator cap when the en-
gine is hot. Scalding hot fluid and steam may
be blown out, which could cause serious in-
jury. When the engine has cooled, open the
radiator cap as follows:
Place a thick rag or a towel over the radiator
cap and slowly turn the radiator cap counter-
clockwise toward the detent to allow any re-
sidual pressure to escape. When the hissing
sound has stopped, press down on the radi-
ator cap and turn it counterclockwise to re-
move.
When removing the radiator cap, hold the radia-
tor filler pipe “2”.
5. Remove:
• Coolant drain bolt “1”
(along with the O-ring)
6. Drain:
• Coolant
(from the engine and radiator)
7. Install:
• Coolant drain bolt
(along with the O-ring )
8. Connect:
• Coolant reservoir hose
9. Fill:
• Cooling system
(with the specified amount of the recom-
mended coolant)
Place the vehicle on the sidestand.
Coolant drain bolt
1.6 N·m (0.16 kgf·m, 1.2 lb·ft)
To Next Page
