5-35
ELECTRIC STARTER
EAS20052
ELECTRIC STARTER

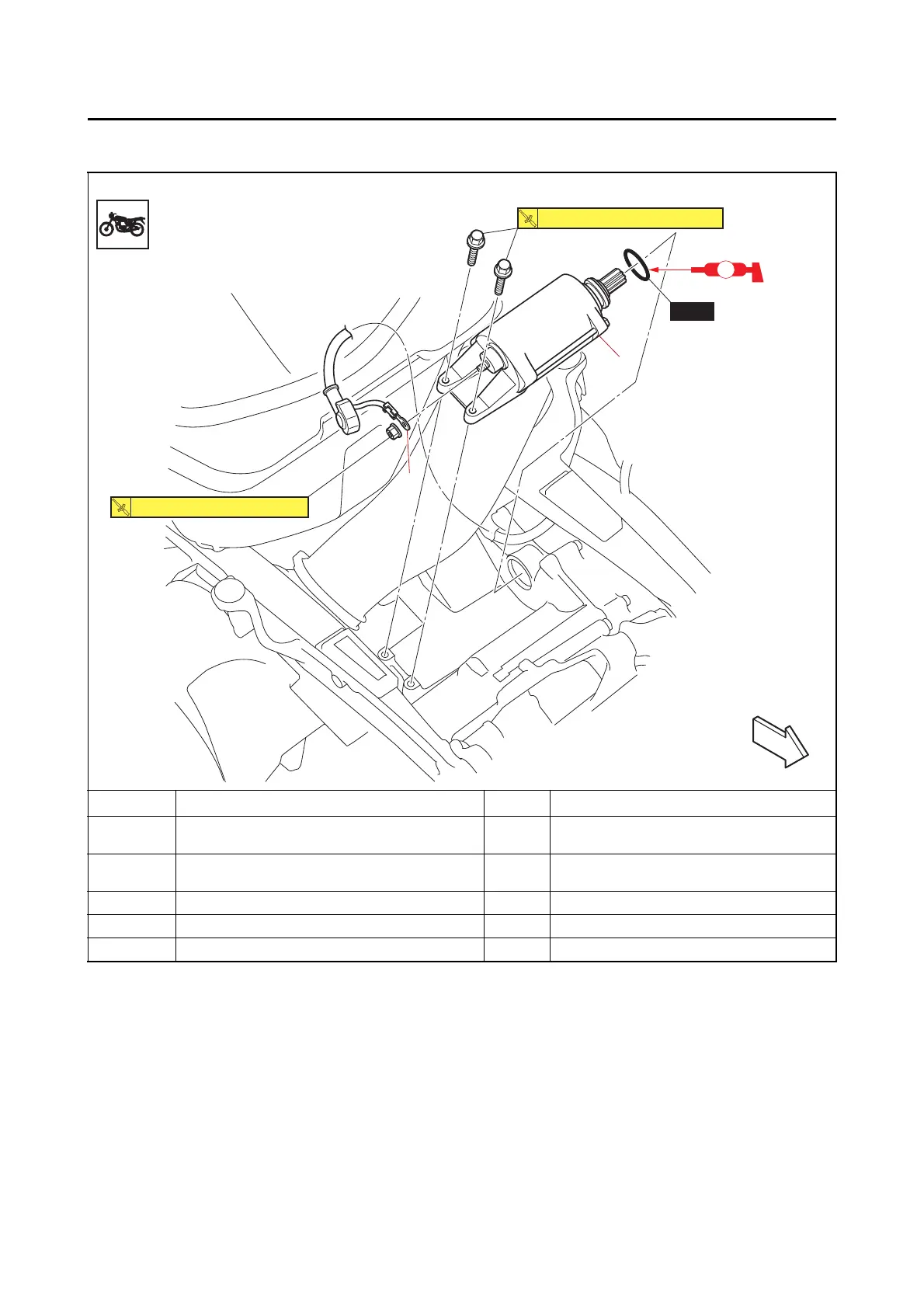

Removing the starter motor
Order Job/Parts to remove Q’ty Remarks
Bottom side cowling/Side panel/Bottom center
cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover/Rear side cowling assembly/Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Starter motor lead 1 Disconnect.
2 Starter motor assembly 1
FWDFWD
1
2
New
10 N•m (1.0 kgf•m, 7.4 lb•ft)
T.R.
7 N•m (0.7 kgf•m, 5.2 lb•ft)
T.R.
LS
To Next Page
