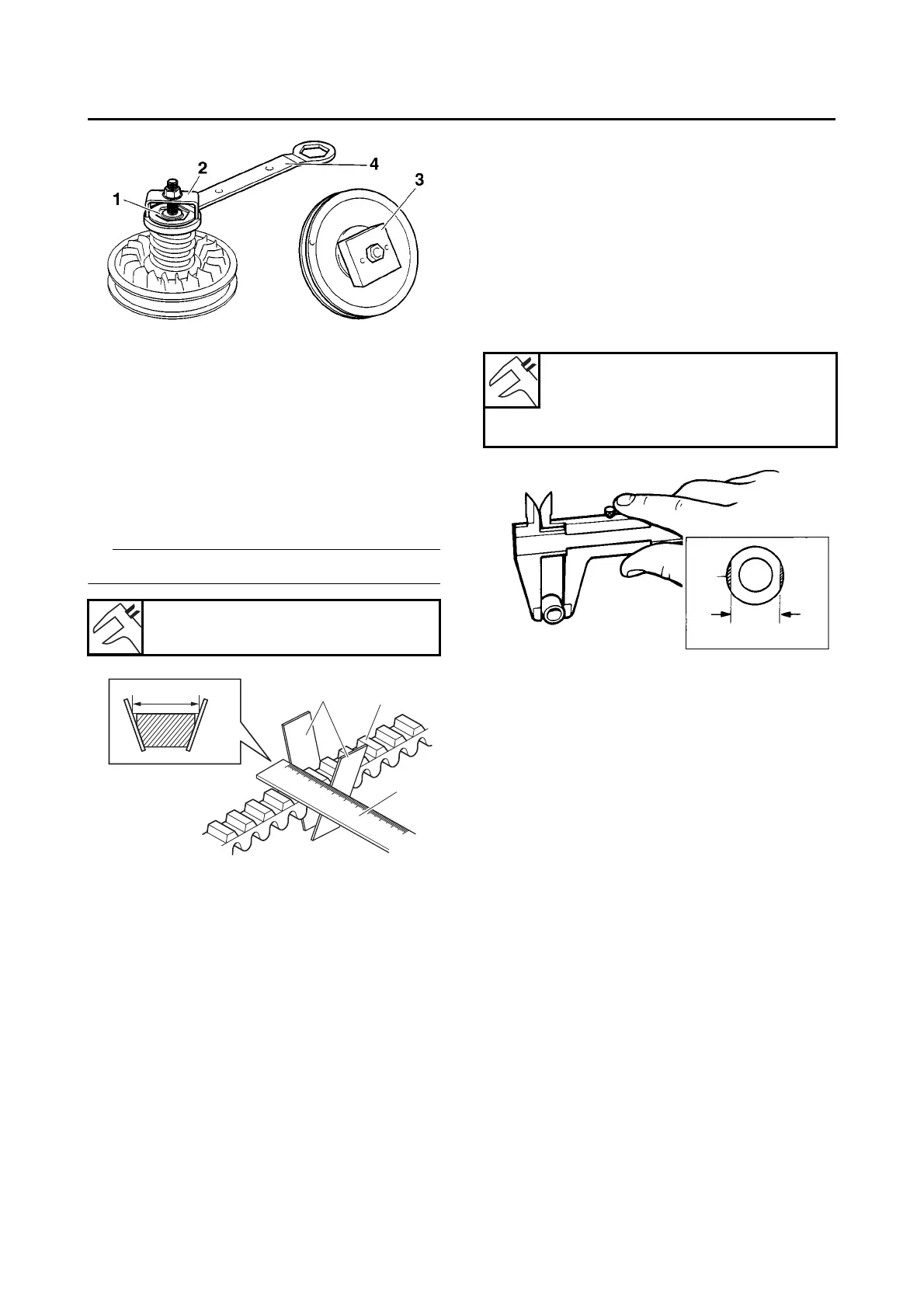

5-44
V-BELT AUTOMATIC TRANSMISSION
EAS30315
CHECKING THE V-BELT
1. Check:
V-belt “1”
Cracks/damage/wear Replace.
Grease/oil Clean the primary and second-
ary sheave.
2. Measure:
V-belt width “a”
Out of specification Replace.
TIP
Measure the V-belt width as illustration.
EAS30316
CHECKING THE PRIMARY SHEAVE
1. Check:
Primary sliding sheave
Primary fixed sheave
Cracks/damage/wear Replace the primary
sliding sheave and primary fixed sheave as a
set.
EAS31436
CHECKING THE V-BELT CASE AIR DUCT
1. Check:
V-belt case air duct
Cracks/damage Replace.
EAS30317
CHECKING THE PRIMARY SHEAVE
WEIGHTS
The following procedure applies to all of the pri-
mary sheave weights.
1. Check:
Primary sheave weight
Cracks/damage/wear Replace.
2. Measure:
Primary sheave weight outside diameter
Out of specification Replace.
EAS30318
CHECKING THE SLIDERS
The following procedure applies to all of the slid-
ers.
1. Check:
Slider
Cracks/damage/wear Replace.
EAS30319
CHECKING THE SECONDARY SHEAVE
1. Check:
Secondary fixed sheave
Secondary sliding sheave
Cracks/damage/wear Replace the sec-
ondary fixed and sliding sheaves as a set.
2. Check:
Torque cam groove “1”
Damage/wear Replace the secondary
fixed and sliding sheaves as a set.
3. Check:
Guide pin “2”
Damage/wear Replace the secondary
fixed and sliding sheaves as a set.
V-belt width limit
31.4 mm (1.24 in)
2. Plastic board
3. Ruler
1
2
3
a
Weight outside diameter
25.0 mm (0.98 in)
Limit
24.5 mm (0.96 in)
