9-8
SYSTEM DIAGRAM
EAS33369

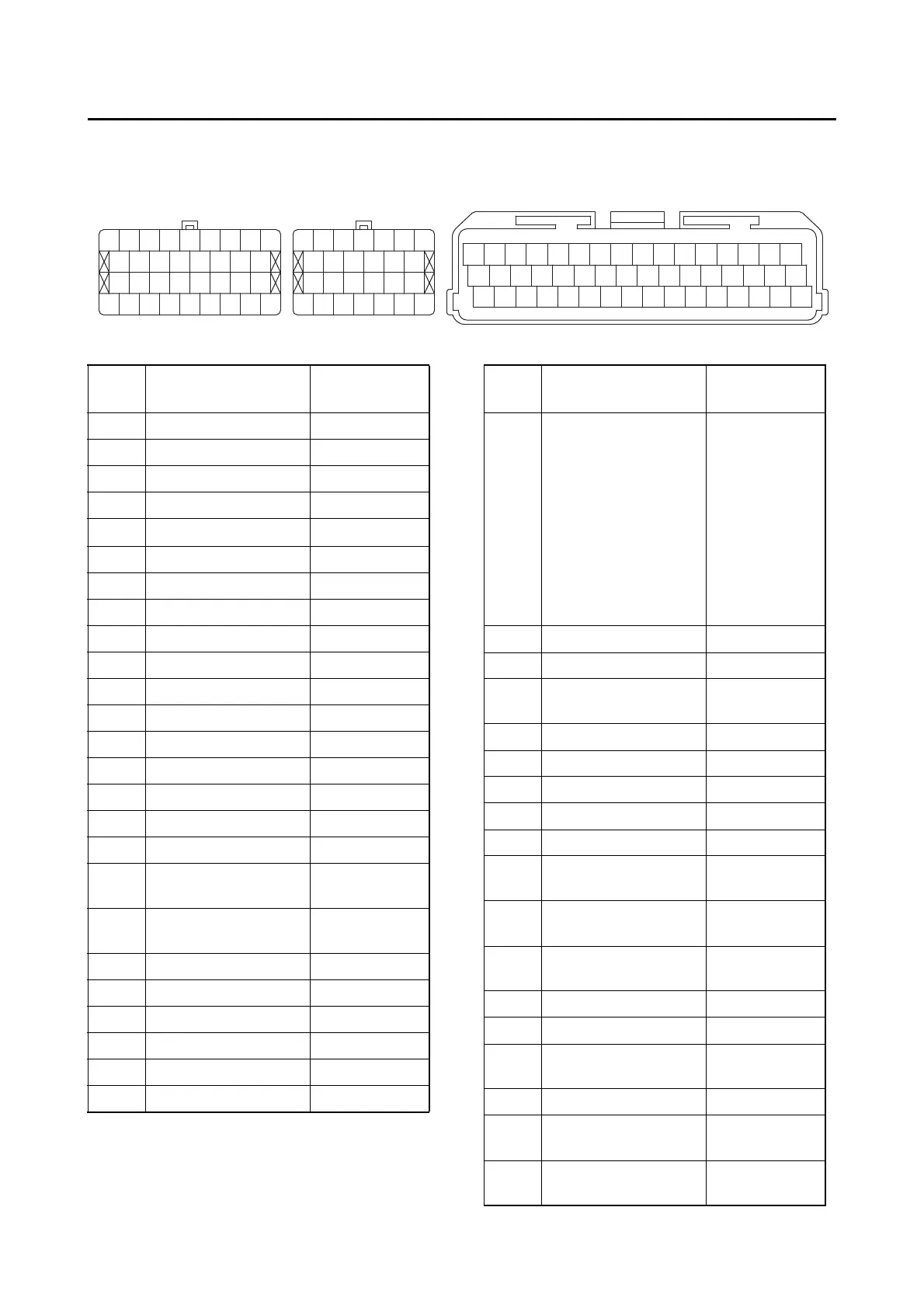

ECU COUPLER LAYOUT
35 36 37 38 394041
54 55 56 57 58 59 60
42 43 44 45 46
47
48 49 50 51 52
53
123 45678 9
26 27 28 29 30 31 32 33 34
10 11 12 13 14 15 16
17
18 19 20 21 22 23 24 25
61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76
77 78 79 80 81 82 83 84 85 86 87 88 89909192
93 94 95 96 97 98 99
100101102103104105106107108
No. Connected parts
Wire harness
color
1 Throttle servo motor Y/R
2— —
3— —
4— —
5
O
2
sensor
B/G
6— —
7— —
8— —
9 Ignition coil O
10 Throttle servo motor Y/W
11 — —
12 — —
13 — —
14 — —
15 Injector #2 G/B
16 Injector #1 R/B
17 Joint coupler B
18
Electronic throttle
valve fuse
R/L
19
Radiator fan motor
relay
Y/R
20 — —
21 — —
22 — —
23 — —
24 — —
25 Joint coupler B
26
Battery charger ter-
minal, seat heater
relay (power), wind-
shield motor fuse,
joint coupler, igni-
tion system relay,
radiator fan motor
fuse, fuel injection
system fuse, back-
up fuse, electronic
throttle valve fuse
R
27 — —
28 Diode 1 Y/W
29
Fuel injection sys-
tem relay
L/Y
30 — —
31 — —
32 Joint coupler R/L
33 Joint coupler B
34 Joint coupler B
35
Accelerator position
sensor
L
36
ABS ECU (Electron-
ic Control Unit)
Lg
37
Throttle position
sensor
L
38 — —
39 — —
40
Grip warmer con-
nector
Y/R
41 Ignition fuse R/W
42
Accelerator position
sensor
W
43
Throttle position
sensor
W
No. Connected parts
Wire harness
color
