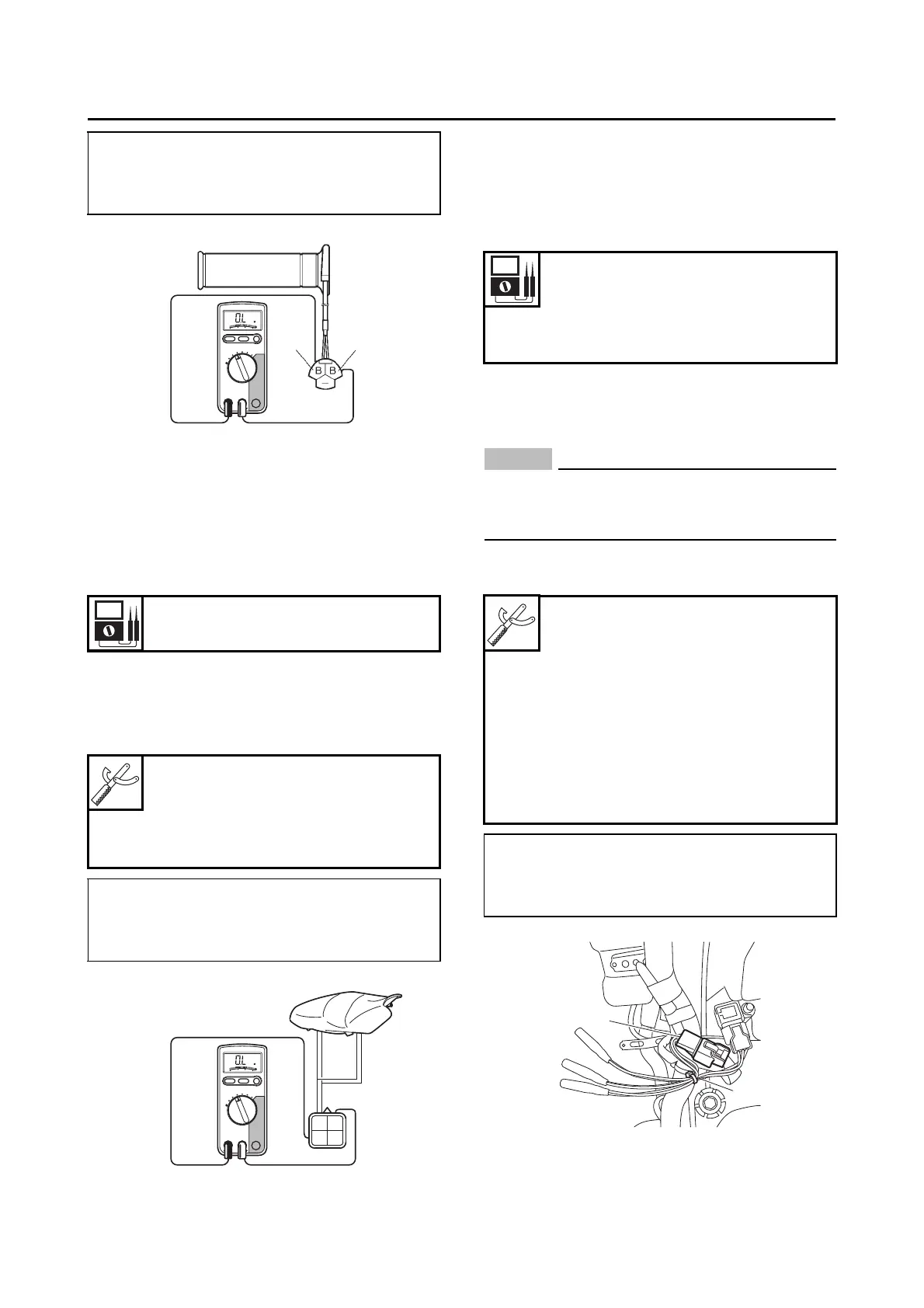

8-110
ELECTRICAL COMPONENTS
c. Measure the grip warmer resistance.
EAS32449
CHECKING THE SEAT HEATER (for XP560D)
1. Check:
Seat heater resistance
Out of specification Replace the seat
assembly.
a. Disconnect the seat heater coupler from the
wire harness.
b. Connect the digital circuit tester () to the
seat heater coupler as shown.
c. Measure the seat heater resistance.
EAS30593
CHECKING THE INTAKE AIR PRESSURE
SENSOR
1. Check:
Intake air pressure sensor output voltage
Out of specification Replace.
a. Connect the test harness S– pressure sen-
sor “1” to the intake air pressure sensor and
wire harness as shown.
NOTICE
ECA20040
Pay attention to the installing direction of the
test harness S-pressure sensor (3P) coupler
“a”.
b. Connect the digital circuit tester to the test
harness S– pressure sensor (3P).
c. Push the ON/start switch.
d. Measure the intake air pressure sensor out-
put voltage.
Positive tester probe
Black “1”
Negative tester probe
Black “2”
Rider seat resistance
8.8–10.8
Digital circuit tester (CD732)
90890-03243
Model 88 Multimeter with
tachometer
YU-A1927
Positive tester probe
Blue “1”
Negative tester probe
Black “2”
12
1
2
YL
BY
Atmospheric pressure sensor
output voltage
3.59–3.67 V at 101.3 kPa
(3.59–3.67 V at 1.01 kgf/cm²,
3.59–3.67 V at 14.7 psi)
Digital circuit tester (CD732)
90890-03243
Model 88 Multimeter with
tachometer
YU-A1927
Test harness S– pressure sensor
(3P)
90890-03207
Test harness S– pressure sensor
(3P)
YU-03207
Positive tester probe
Pink (wire harness color)
Negative tester probe
Black/Blue (wire harness color)
1
a
