TRANSMISSION
EAS30433
CHECKING THE TRANSMISSION
1. Check:
• Transmission gear
Blue discoloration/pitting/wear ï‚® Replace.
2. Check:
• Transmission gear movement
Rough movement ï‚® Replace the defective
part(s).
3. Check:
• Main axle
Cracks/damage/wear ï‚® Replace the main
axle.

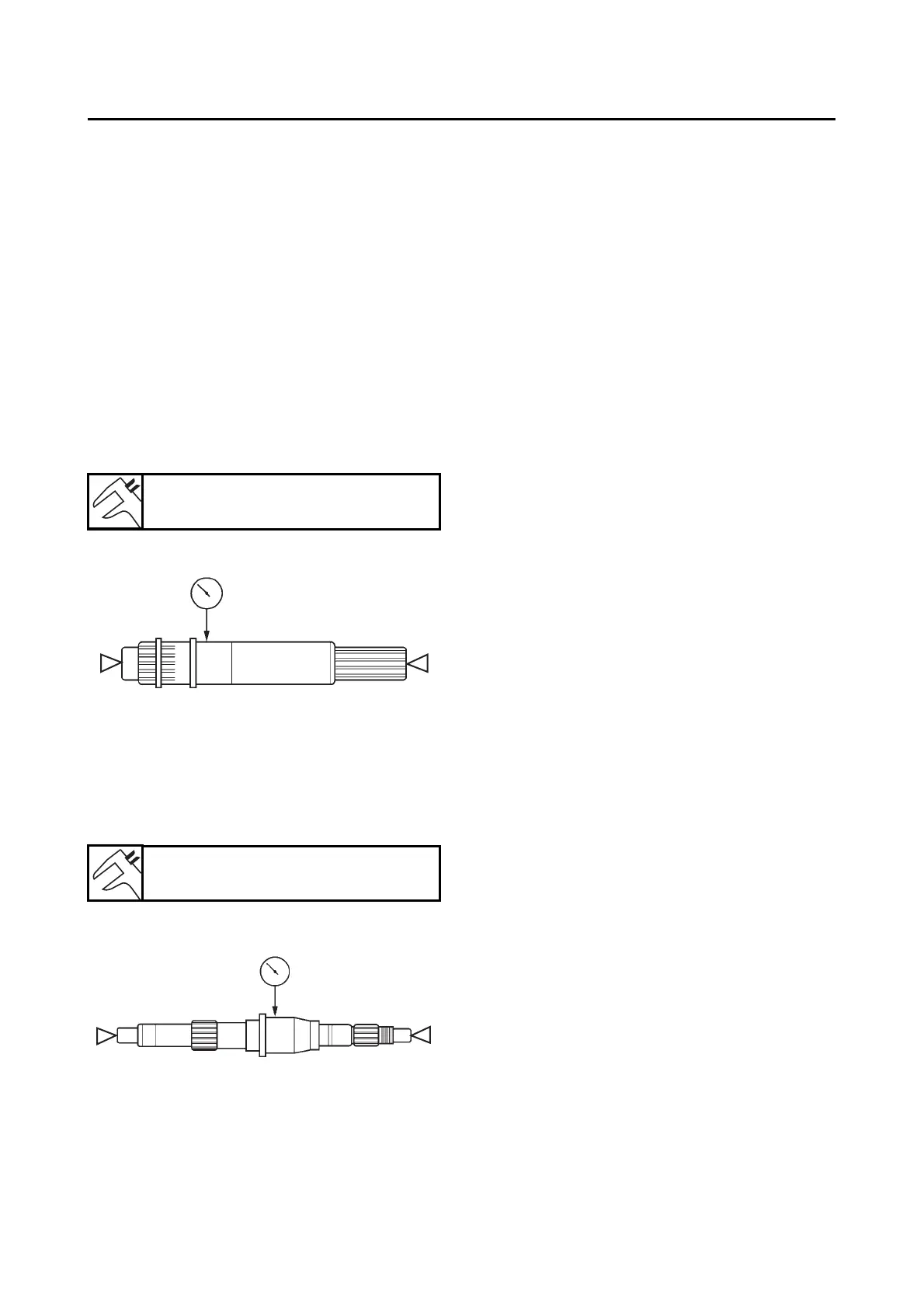

4. Measure:
• Drive axle runout
(with a centering device and dial gauge)
Out of specification ï‚® Replace the drive axle.
5. Measure:
• Secondary shaft runout
(with a centering device and dial gauge)
Out of specification ï‚® Replace the second-
ary shaft.
Drive axle runout limit
0.08 mm (0.0032 in)
Secondary shaft runout limit
0.12 mm (0.0047 in)
