8-94
ELECTRICAL COMPONENTS
EAS30552
CHECKING AND CHARGING THE BATTERY
Refer to “CHECKING AND CHARGING THE
BATTERY” in “BASIC INFORMATION”
(separate volume).
1. Remove:
• Battery cover
• Battery band
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
2. Disconnect:
• Battery lead
(from the battery terminals)
ECA13700
First, disconnect the negative battery lead,
and then the positive battery lead.
3. Remove:
• Battery
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
4. Check:
• Battery charge
5. Install:
• Battery
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
6. Connect:
• Battery lead
(to the battery terminals)
ECA26980
First, connect the positive battery lead, and
then the negative battery lead.
7. Check:
• Battery terminal
Dirt Clean with a wire brush.
Loose connection Connect properly.
8. Lubricate:
• Battery terminal
9. Install:
• Battery band
• Battery cover
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
EAS30553
CHECKING THE RELAYS
Check each switch for continuity with the digital
circuit tester. If the continuity reading is incor-
rect, replace the relay.
1. Disconnect the relay from the wire harness.

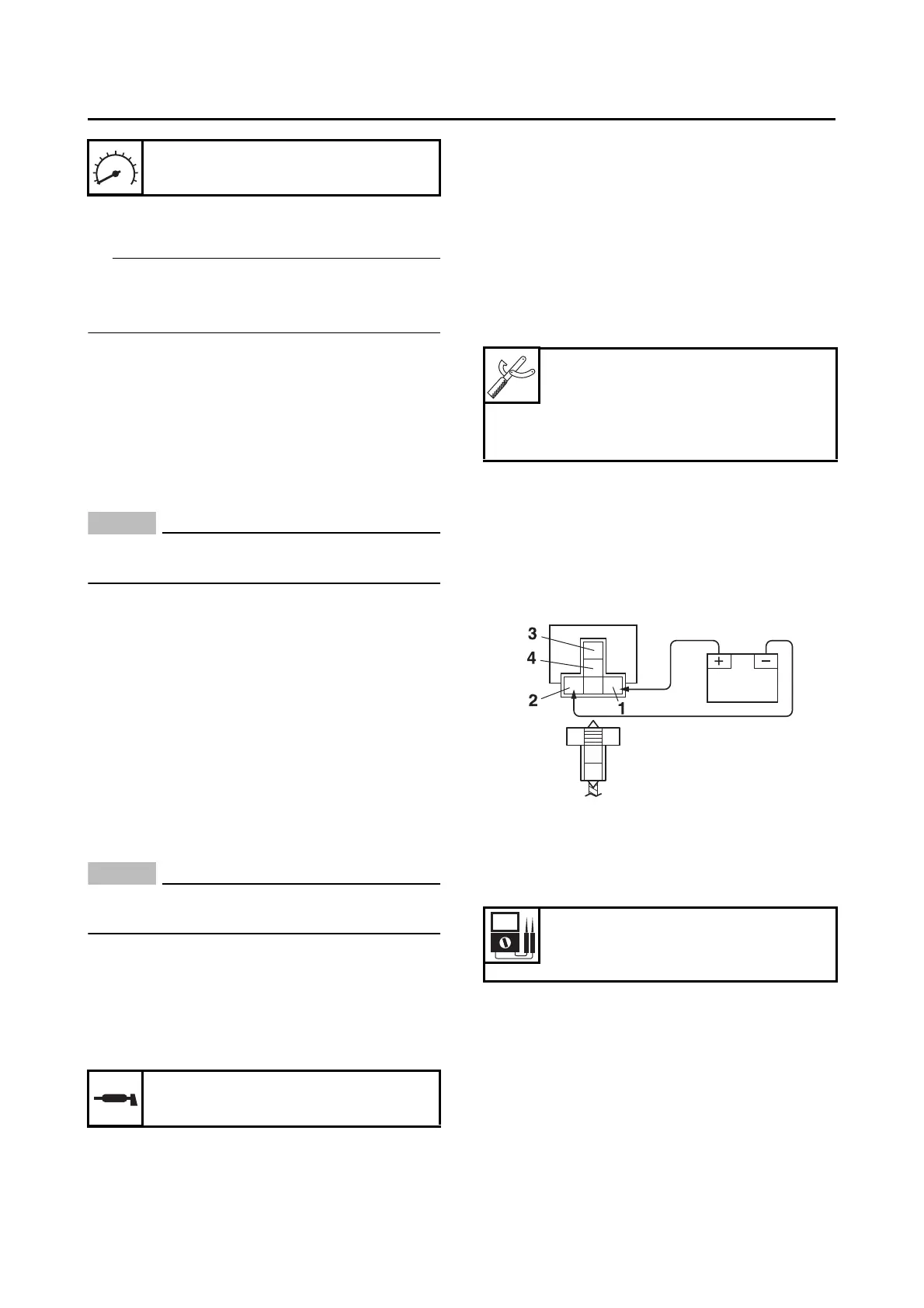

2. Connect the digital circuit tester () and bat-
tery (12 V) to the relay terminal as shown.
Check the relay operation.
Out of specification Replace.
Starting circuit cut-off relay
Engine idling speed
1100–1300 r/min
Recommended lubricant
Dielectric grease
Digital circuit tester (CD732)
90890-03243
Model 88 Multimeter with
tachometer
YU-A1927
1. Positive battery terminal
2. Negative battery terminal
3. Positive tester probe
4. Negative tester probe
Result
Continuity
(between “3” and “4”)
