4-38
FRONT BRAKE
EAS20030
FRONT BRAKE

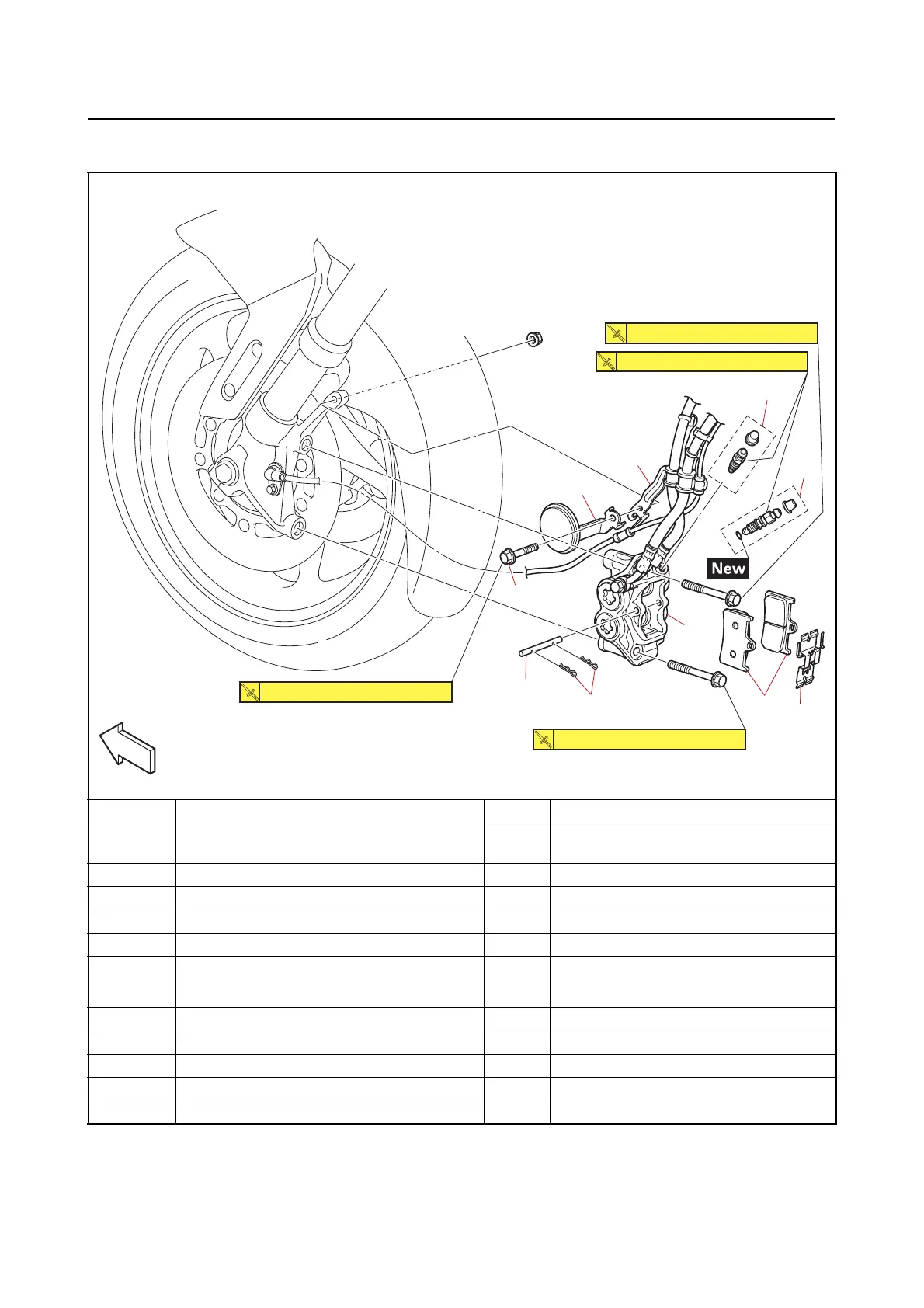

Removing the front brake pads
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front brake calipers.
1 Brake pad clip 2
2 Brake pad pin 1
3 Brake pad spring 1
4 Brake pad 2
5 Front brake hose holder bolt 1
The tightening torque of the front brake hose
holder bolt on the right side is 7 N·m (0.7
kgf·m, 5.2 lb·ft).
6 Front brake hose holder 1
7 Front reflector 1
8 Front brake caliper 1
9 Bleed screw 1 Left brake caliper side
10 Bleed screw 1 Right brake caliper side
FWDFWD
10
9
6
7
2
8
3
4
1
5
6 N・m (0.6 kgf・m, 4.4 lb・ft)
35 N・m (3.5 kgf・m, 26 lb・ft)
35 N・m (3.5 kgf・m, 26 lb・ft)
9 N・m (0.9 kgf・m, 6.6 lb・ft)
