4-39
FRONT BRAKE

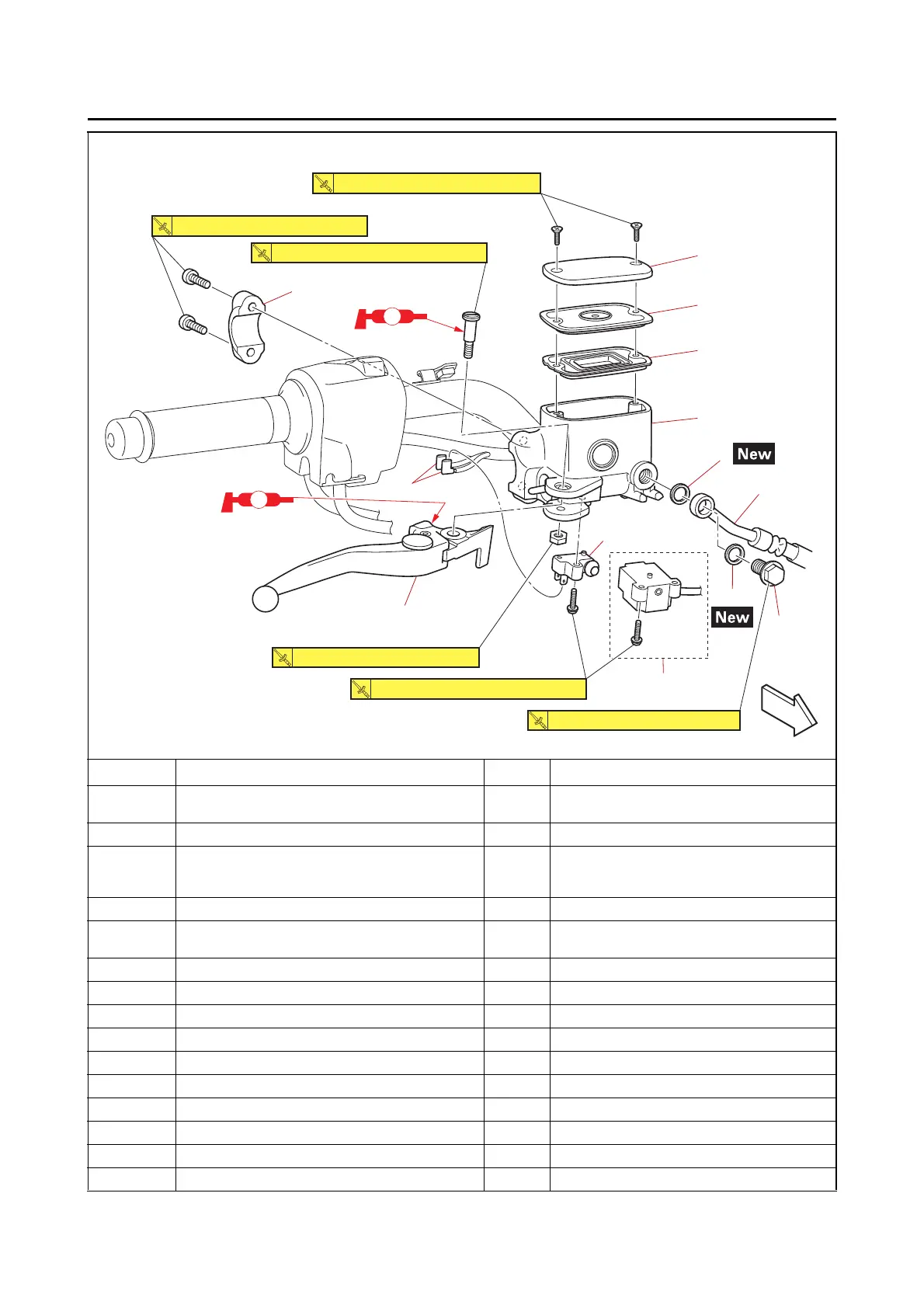

Removing the front brake master cylinder
Order Job/Parts to remove Q’ty Remarks
Windshield/Front cover/Windshield inner panel/
Meter assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Handlebar cover Refer to “HANDLEBAR” on page 4-74.
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-16.
1 Brake master cylinder reservoir cap 1
2
Brake master cylinder reservoir diaphragm
holder
1
3 Brake master cylinder reservoir diaphragm 1
4 Front brake lever 1
5 Front brake light switch connector 2 Disconnect. For XP560E
6 Brake hose union bolt 1
7 Brake hose gasket 2
8 Front brake hose 1
9 Front brake master cylinder holder 1
10 Front brake master cylinder 1
11 Front brake light switch 1 For XP560E
12 Front brake light switch 1 For XP560D
FWDFWD
S
S
11
12
1
2
3
4
5
6
7
7
8
9
10
1.0 N・m (0.10 kgf・m, 0.73 lb・ft)
1.2 N・m (0.12 kgf・m, 0.88 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
6 N・m (0.6 kgf・m, 4.4 lb・ft)
