5-49
GENERATOR AND STARTER CLUTCH
EAS20140
GENERATOR AND STARTER CLUTCH

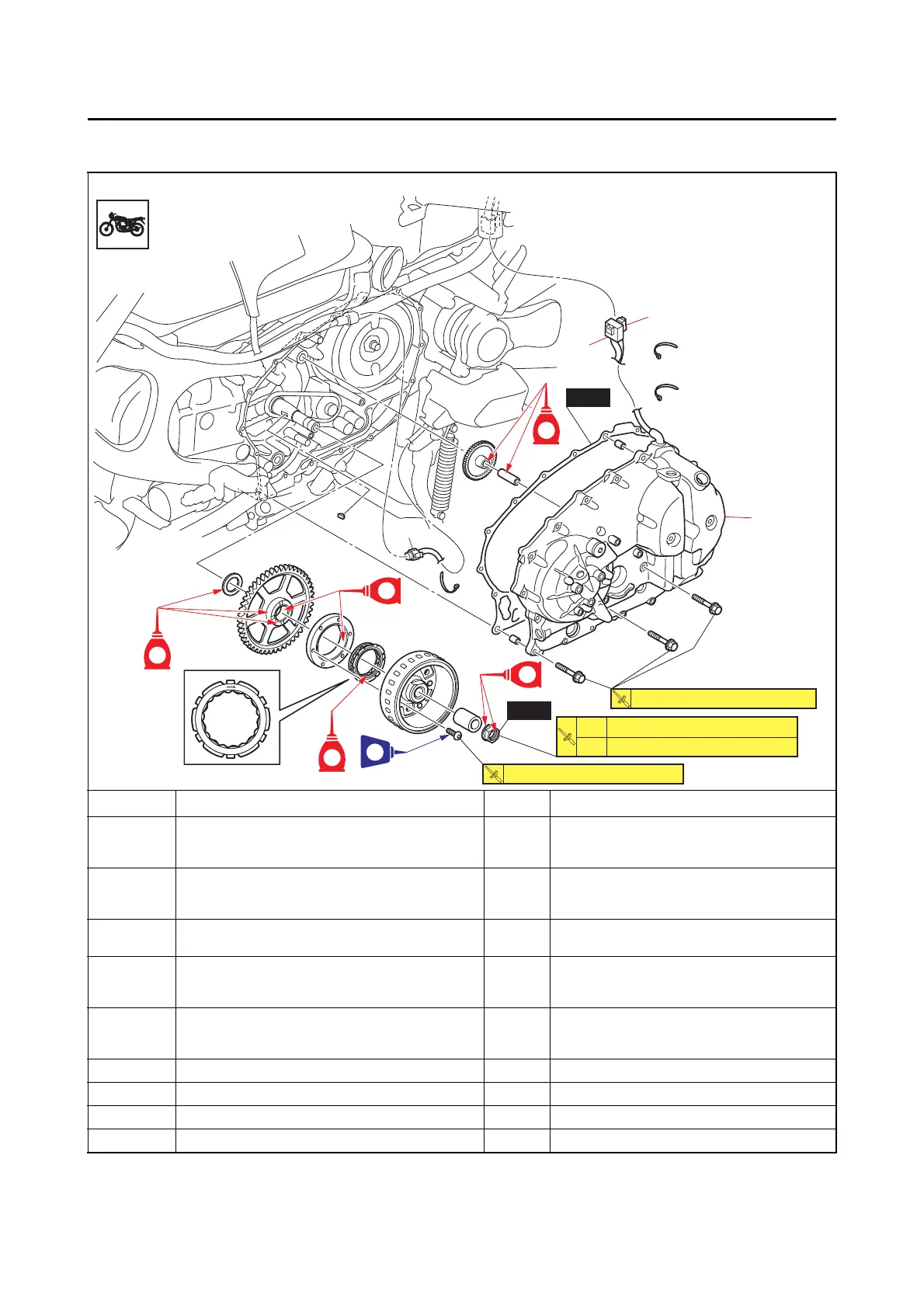

Removing the generator rotor and starter clutch
Order Job/Parts to remove Q’ty Remarks
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-27.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-31.
Bottom side cowling/Side panel/Bottom center
cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover (left)/Rear side cowling assembly (left)/
Footboard (left)
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
V-belt case air filter element (left)/Generator
cover protector/Water pump inlet pipe/Water
pump outlet pipe/Water pump assembly
Refer to “WATER PUMP” on page 6-11.
1 Centerstand lock solenoid coupler 1 Disconnect.
2 Crankshaft position sensor coupler 1 Disconnect.
3 Stator coil coupler 1 Disconnect.
4 Generator cover 1
4
2
3
1
(3)
(17)
New
New
Specified angle
120˚
E
E
E
E
E
LT
10 N
•
m (1.0 kgf
•
m, 7.4 lb
•
ft)
T.R
.
32 N
•
m (3.2 kgf
•
m, 24 lb
•
ft)
T.R
.
65 N·m (6.5 kgf·m, 48 lb·ft)1st
2nd
T
.R.
Specified angle
120˚
