5-50
GENERATOR AND STARTER CLUTCH

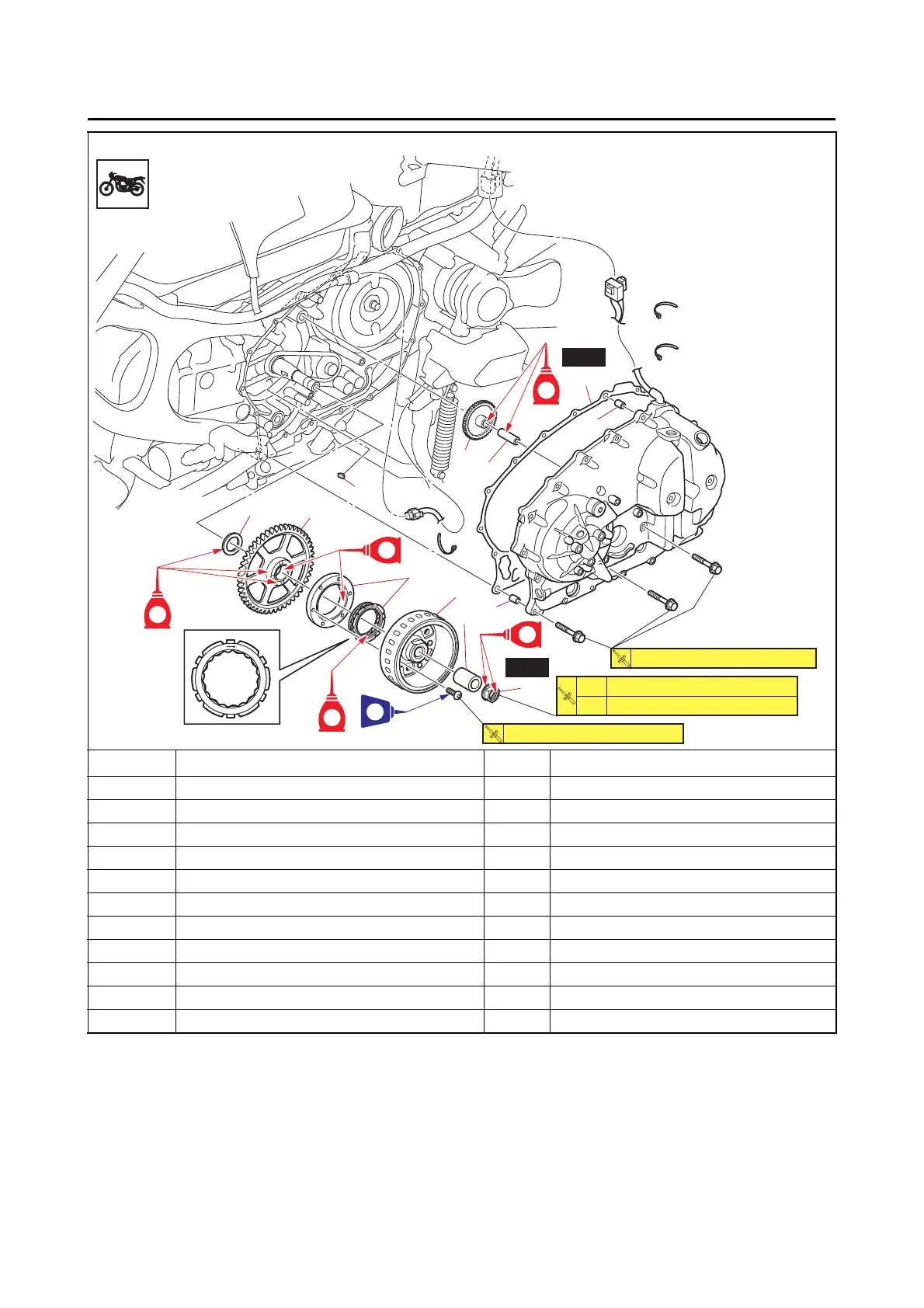

Removing the generator rotor and starter clutch
Order Job/Parts to remove Q’ty Remarks
5 Generator cover gasket 1
6 Dowel pin 2
7 Starter clutch idle gear shaft 1
8 Starter clutch idle gear 1
9 Generator rotor nut 1
10 Spacer 1
11 Generator rotor 1
12 Woodruff key 1
13 Washer 1
14 Starter clutch gear 1
15 Starter clutch 1
13
15
5
6
7
8
6
11
12
10
9
(3)
(17)
14
New
New
Specified angle
120Ëš
E
E
LT
E
E
E
10 N
•
m (1.0 kgf
•
m, 7.4 lb
•
ft)
T.R.
32 N
•
m (3.2 kgf
•
m, 24 lb
•
ft)
T.R
.
65 N·m (6.5 kgf·m, 48 lb·ft)1st
2nd
T
.R.
Specified angle
120Ëš
