GENERAL CHASSIS (2)
EAS20155
GENERAL CHASSIS (2)

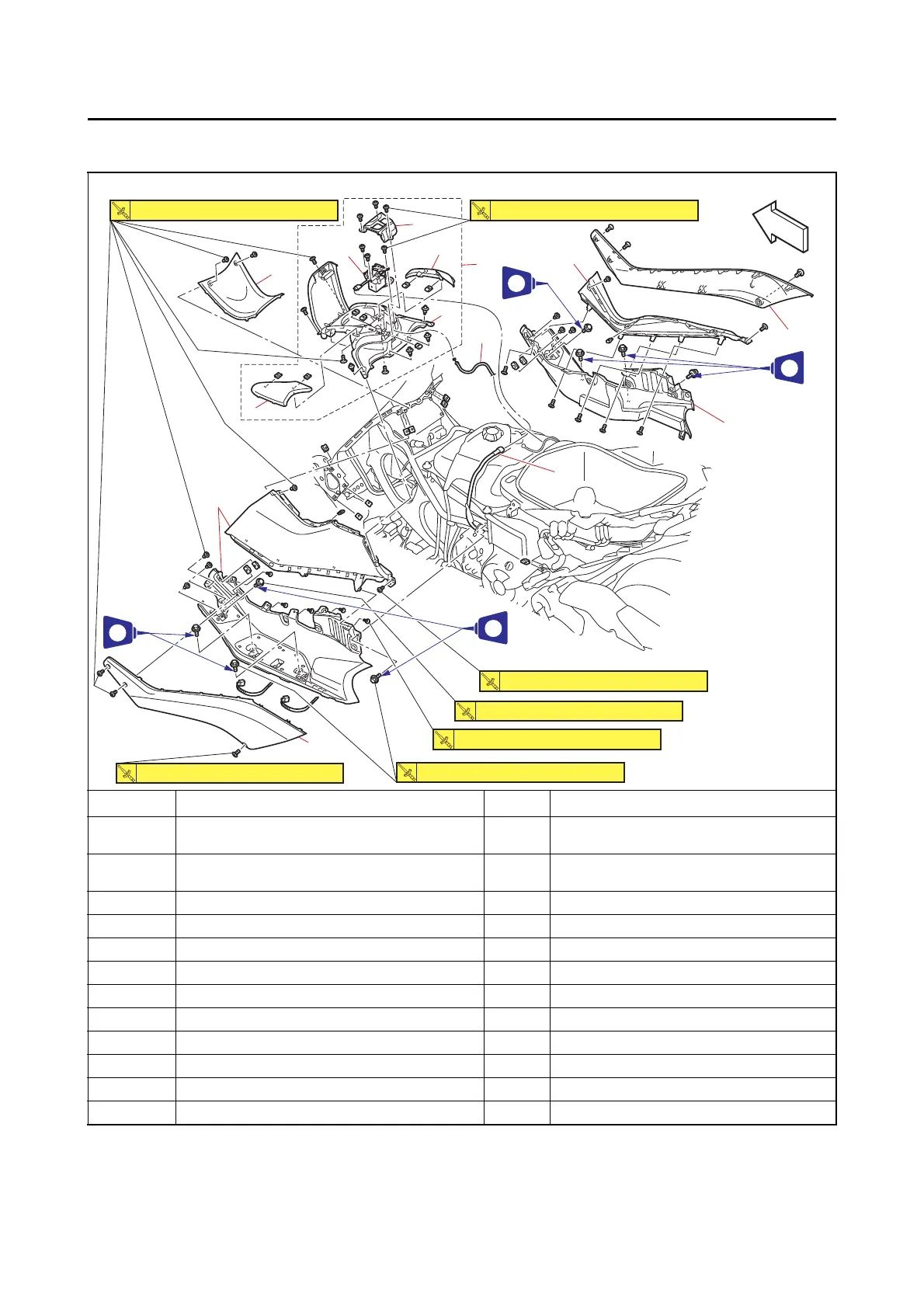

Removing the footboard
Order Job/Parts to remove Q’ty Remarks
Bottom side cowling/Side panel/Bottom center
cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Rear side cowling assembly
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
1 Center cover 1
2 Fuel tank cover assembly 1
3 Seat/fuel lid lock solenoid coupler 1 Disconnect.
4 Seat lock cable 1 Disconnect.
5 Side cover 2
6 Footboard 4
7 Seat/fuel button cover 1
8 Cover 2
9 Seat/fuel lid lock solenoid 1
10 Fuel tank cover 1
FWDFWD
1
3
4
2
5
6
5
6
6
7
9
8
8
10
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
LT
LT
1.5 N・m (0.15 kgf・m, 1.1 lb・ft) 1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
LT
LT
2.5 N・m (0.25 kgf・m, 1.8 lb・ft)
