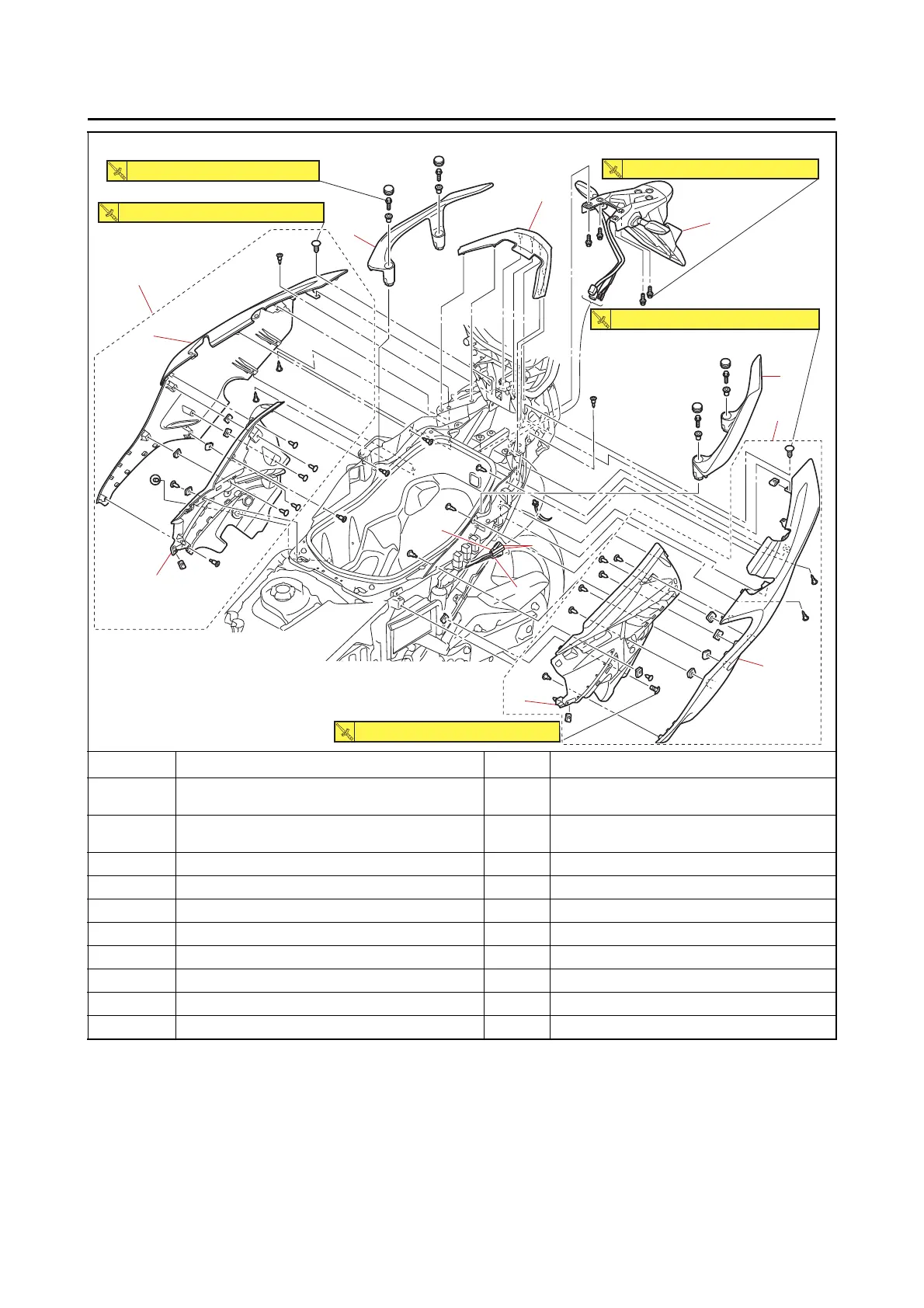

GENERAL CHASSIS (2)
Removing the rear cowling and mudguard assembly
Order Job/Parts to remove Q’ty Remarks
Bottom side cowling/Side panel/Bottom center
cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
1 Grab bar 2
2 Rubber cover 1
3 Rear side cowling assembly 2
4 Rear side cowling 2
5 Inner panel 2
6 Rear turn signal light coupler 2 Disconnect.
7 License plate light coupler 2 Disconnect.
8 Mudguard assembly 1
2
8
1
4
5
5
4
1
7
6
6
3
3
22 N・m (2.2 kgf・m, 16 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
