4-13
GENERAL CHASSIS (2)

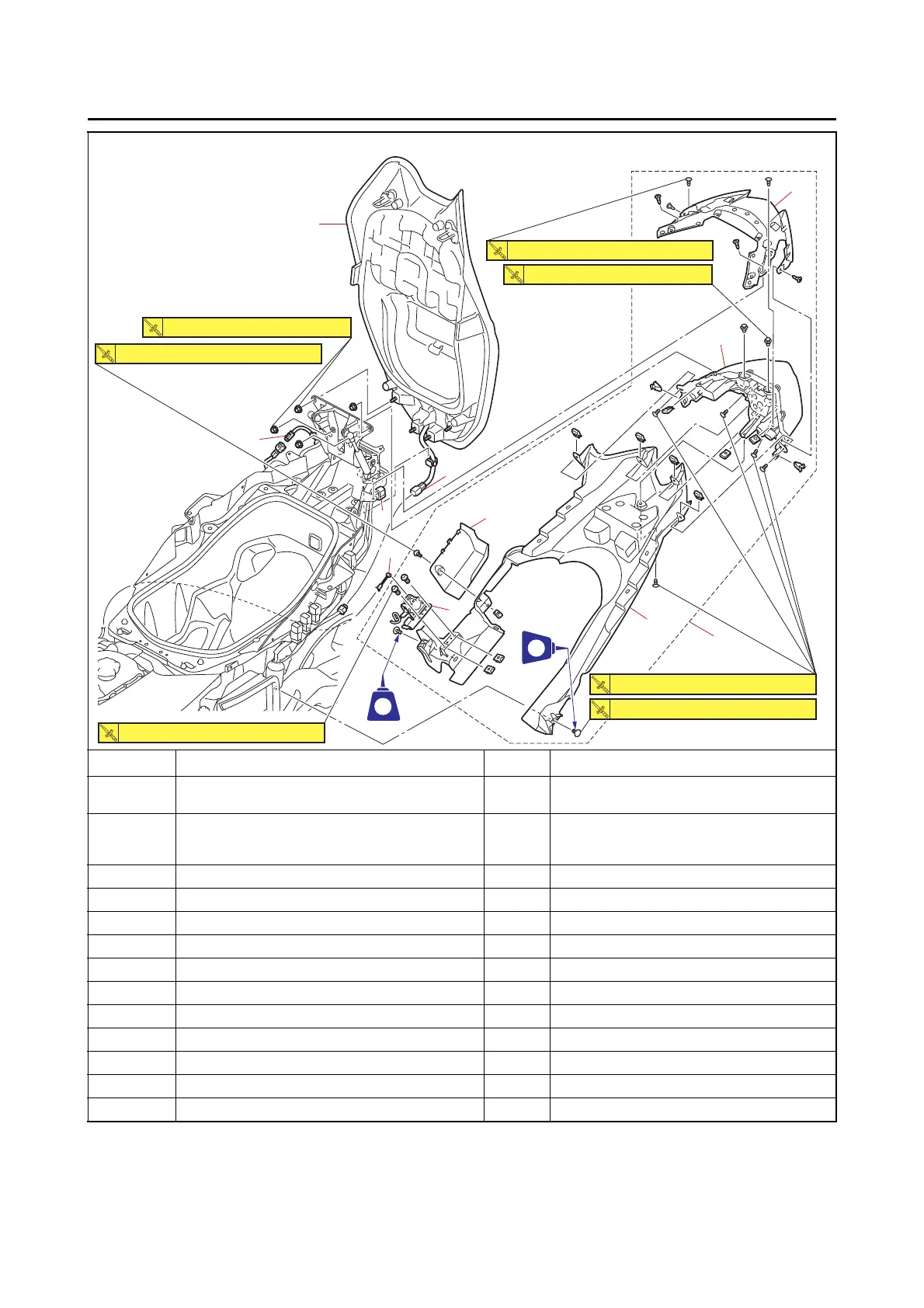

Removing the rear cowling assembly and seat assembly
Order Job/Parts to remove Q’ty Remarks
Bottom side cowling/Side panel/Bottom center
cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover/Rear side cowling assembly/Footboard/
Mudguard assembly
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
1 Rear cover 1
2 Tail/brake light coupler 1 Disconnect.
3 Seat lock cable 1 Disconnect.
4 Rear cowling assembly 1
5Lid 1
6 Tail/brake light 1
7 Seat lock key cylinder 1
8 Tail/brake light cover 1
9 Seat heater coupler 1 Disconnect. (for XP560D)
10 Seat switch lead coupler 1 Disconnect.
11 Seat assembly 1
6
1
4
8
5
7
9
3
2
10
11
7 N・m (0.7 kgf・m, 5.2 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
LT
LT
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
6 N・m (0.6 kgf・m, 4.4 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
To Next Page
