4-14
GENERAL CHASSIS (2)

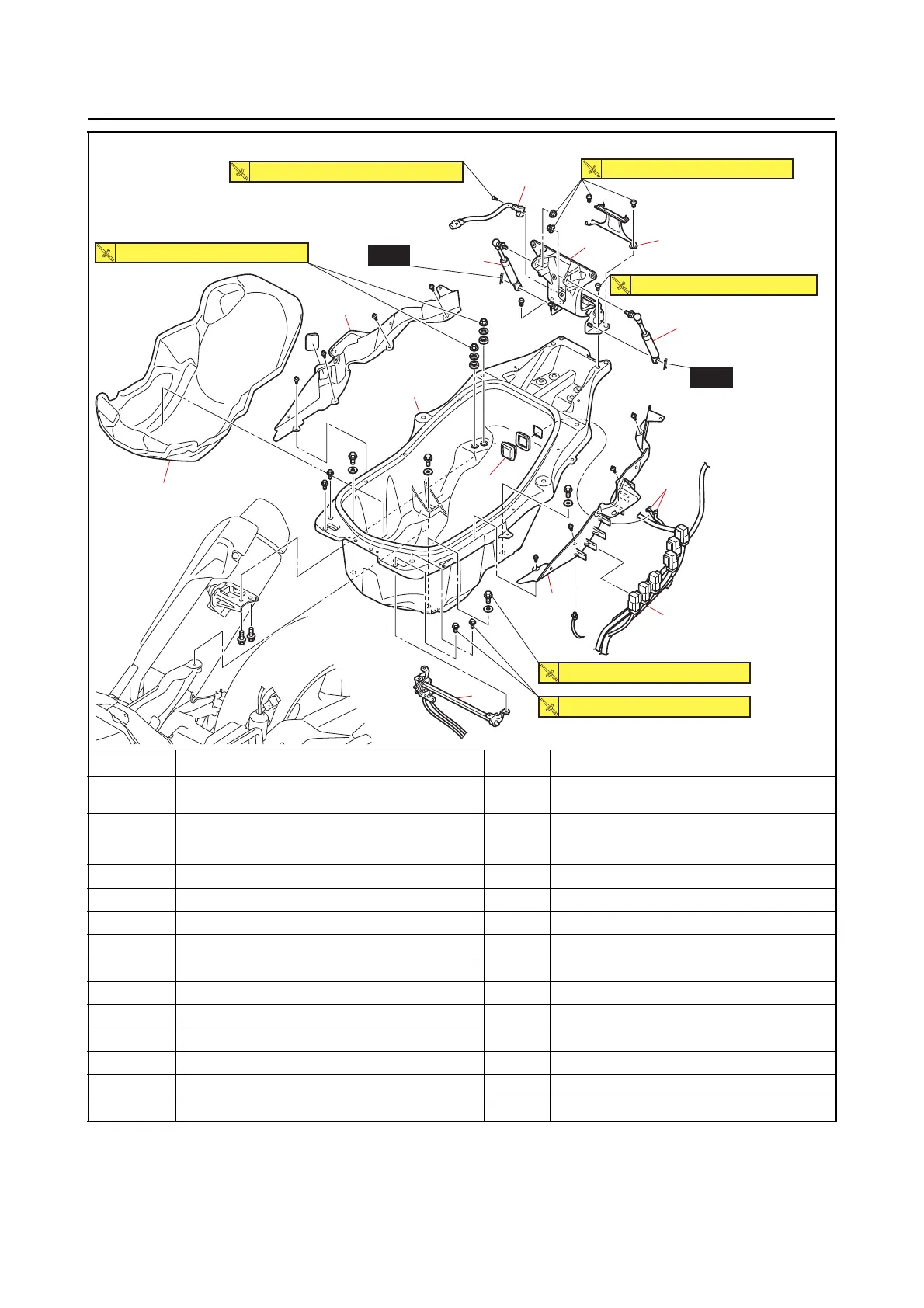

Removing the storage box
Order Job/Parts to remove Q’ty Remarks
Bottom side cowling/Side panel/Bottom center
cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover/Rear side cowling assembly/Footboard/
Mudguard assembly/Seat assembly
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
1 Storage box inner mat 1
2 Storage box light switch connector 2 Disconnect.
3 Wire harness 1 Disconnect.
4 Storage box 1
5 Rear panel 2
6 Storage box light 1
7 Seat lock assembly 1
8 Bracket 1
9 Seat hinge assembly 1
10 Storage box light switch 1
11 Stopper 2
10
9
2
3
5
11
11
6
7
5
1
4
8
0.7 N・m (0.07 kgf・m, 0.52 lb・ft)
16 N・m (1.6 kgf・m, 12 lb・ft)
16 N・m (1.6 kgf・m, 12 lb・ft)
23 N・m (2.3 kgf・m, 17 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
32 N・m (3.2 kgf・m, 24 lb・ft)
New
New
