4-1
GENERAL CHASSIS (1)
EAS20026
GENERAL CHASSIS (1)

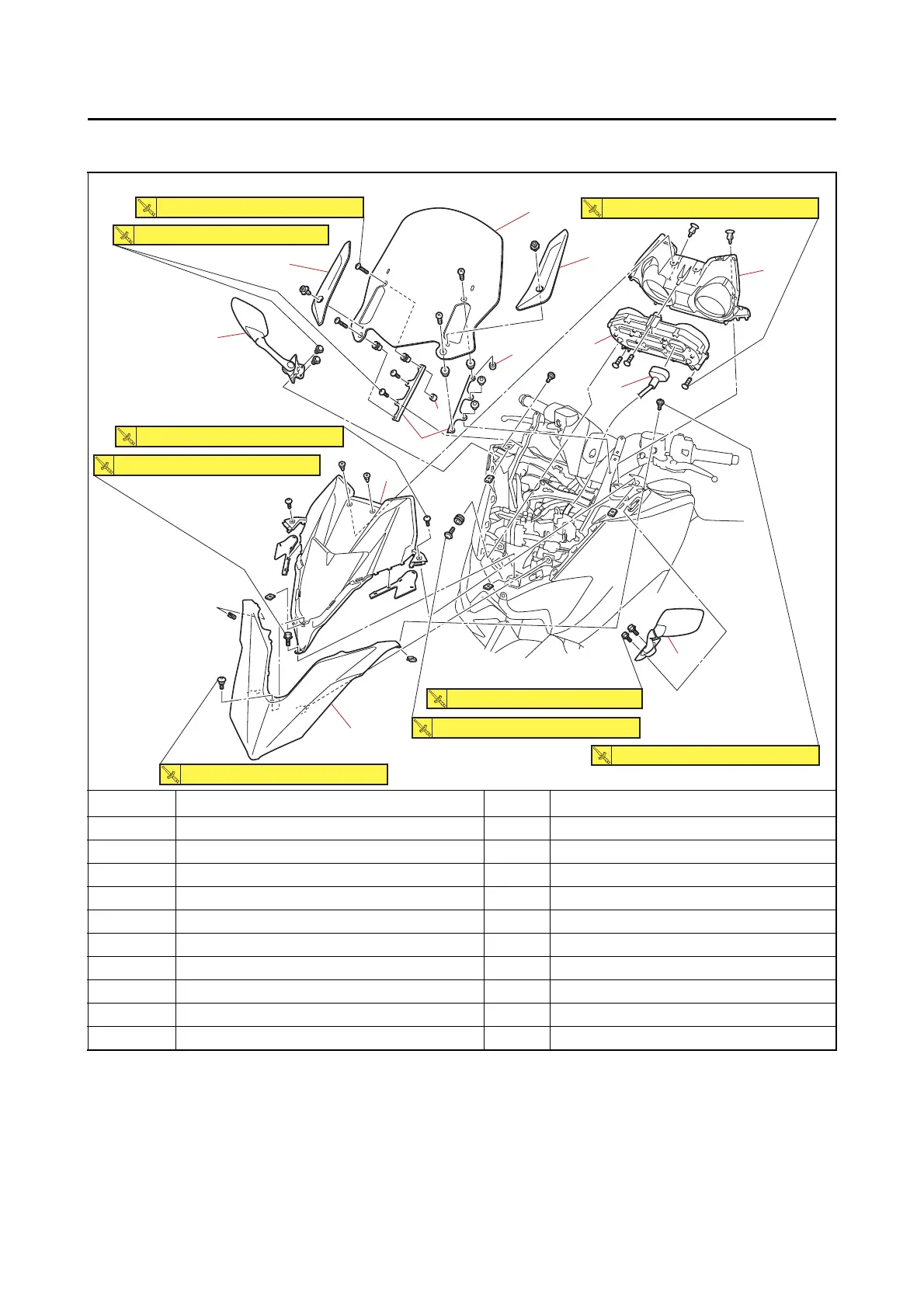

Removing the windshield and meter assembly (for XP560E)
Order Job/Parts to remove Q’ty Remarks
1 Windshield cover 2
2Cap 2
3 Windshield 1
4 Windshield bracket 2
5 Front cover 1
6 Rearview mirror 2
7 Windshield inner panel 1
8 Meter assembly coupler 1 Disconnect.
9 Meter assembly 1
10 Meter panel assembly 1
(3)
1
1
3
4
5
7
8
10
9
6
6
2
2
1.6 N・m (0.16 kgf・m, 1.2 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
2.5 N・m (0.25 kgf・m, 1.8 lb・ft)
2.5 N・m (0.25 kgf・m, 1.8 lb・ft)
1.3 N・m (0.13 kgf・m, 0.95 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
