4-74
HANDLEBAR
EAS20033
HANDLEBAR

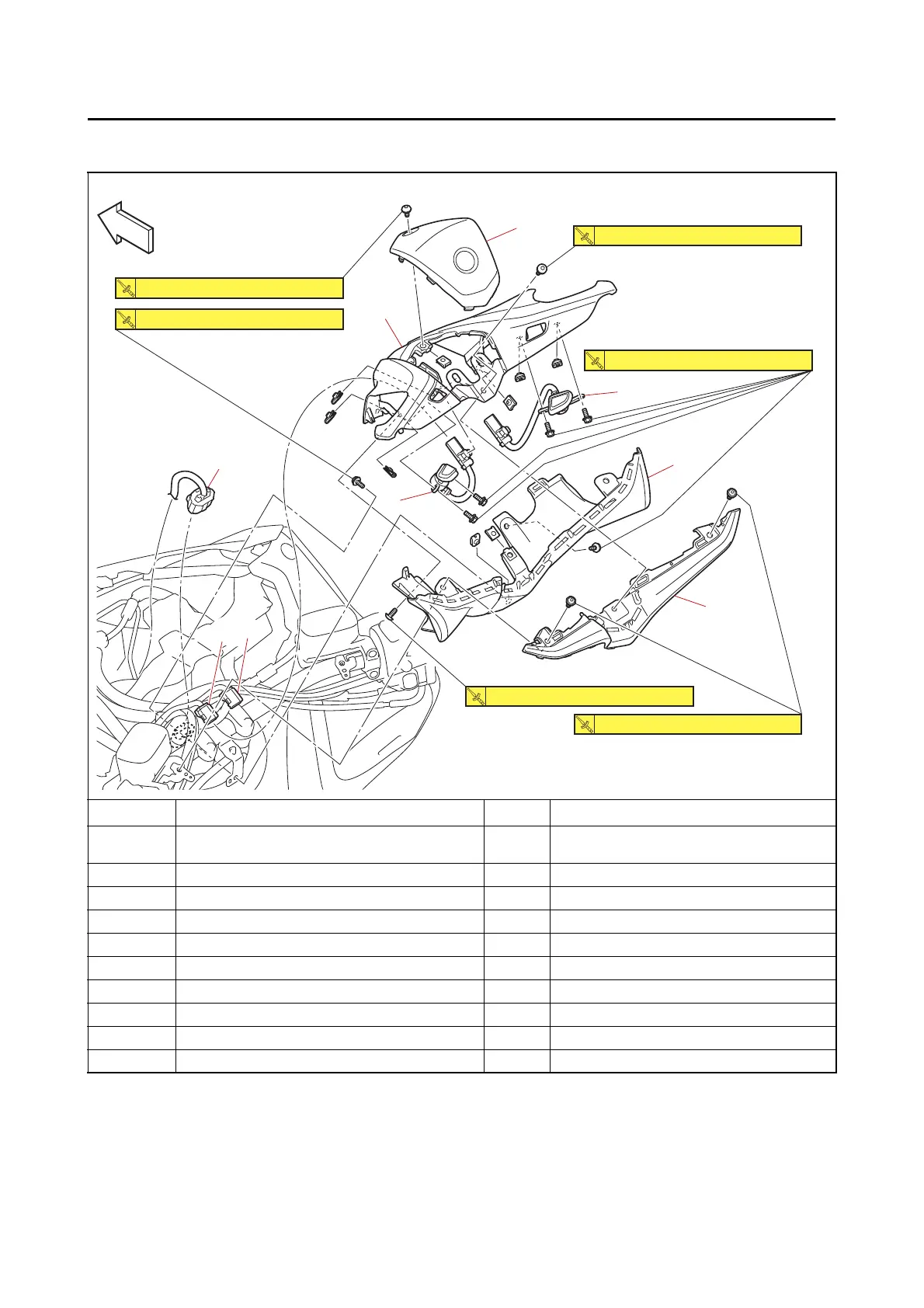

Removing the handlebar cover
Order Job/Parts to remove Q’ty Remarks
Windshield/Front cover/Windshield inner panel/
Meter assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
1 Upper handlebar cover 1
2 Handlebar cover (front) 1
3 Parking/Unlock switch coupler 1 Disconnect.
4 OFF/LOCK switch coupler 1 Disconnect.
5 Lower handlebar cover 1
6 Accelerator position sensor coupler 1 Disconnect.
7 Handlebar cover (rear) 1
8 Parking/Unlock switch 1
9 OFF/LOCK switch 1
FWDFWD
1
2
3 4
5
6
7
8
9
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
2.5 N・m (0.25 kgf・m, 1.8 lb・ft)
