4-75
HANDLEBAR

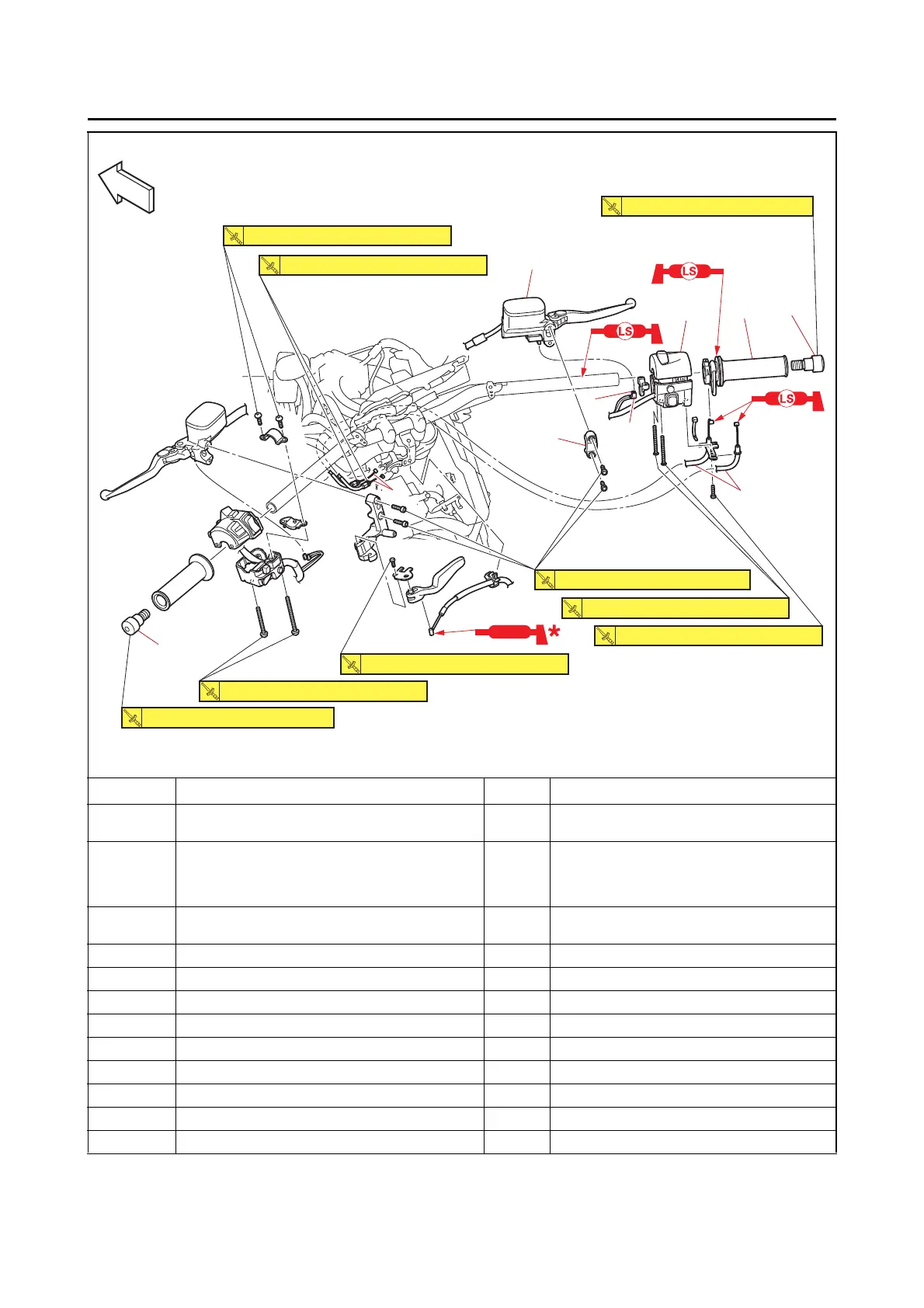

Removing the handlebar switch and throttle grip
* YAMAHA GREASE “F”
Order Job/Parts to remove Q’ty Remarks
Rear brake lock cable adjusting nut
Loosen.
Refer to “REAR BRAKE” on page 4-50.
Windshield/Front cover/Rearview mirror/Wind-
shield inner panel/Meter assembly/Bottom side
cowling/Side panel/Front cowling assembly/Leg
shield assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Rear
side cowling assembly/Side cover/Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Handlebar cover Refer to “HANDLEBAR” on page 4-74.
1 Front brake light switch connector 2 Disconnect. (for XP560E)
2 Front brake master cylinder holder 1
3 Front brake master cylinder assembly 1
4 Handlebar switch (right) 1
5 Throttle cable 2 Disconnect.
6 Throttle cable (throttle grip side) 2 Disconnect.
7 Grip end 2
8 Throttle grip 1
FWDFWD
1
1
2
3
4
5
6
7
7
8
3.5 N・m (0.35 kgf・m, 2.6 lb・ft)
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
3.5 N・m (0.35 kgf・m, 2.6 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
1.8 N・m (0.18 kgf・m, 1.3 lb・ft)
26 N・m (2.6 kgf・m, 19 lb・ft)
26 N・m (2.6 kgf・m, 19 lb・ft)
4.5 N・m (0.45 kgf・m, 3.3 lb・ft)
To Next Page
