V-BELT AUTOMATIC TRANSMISSION
EAS30320

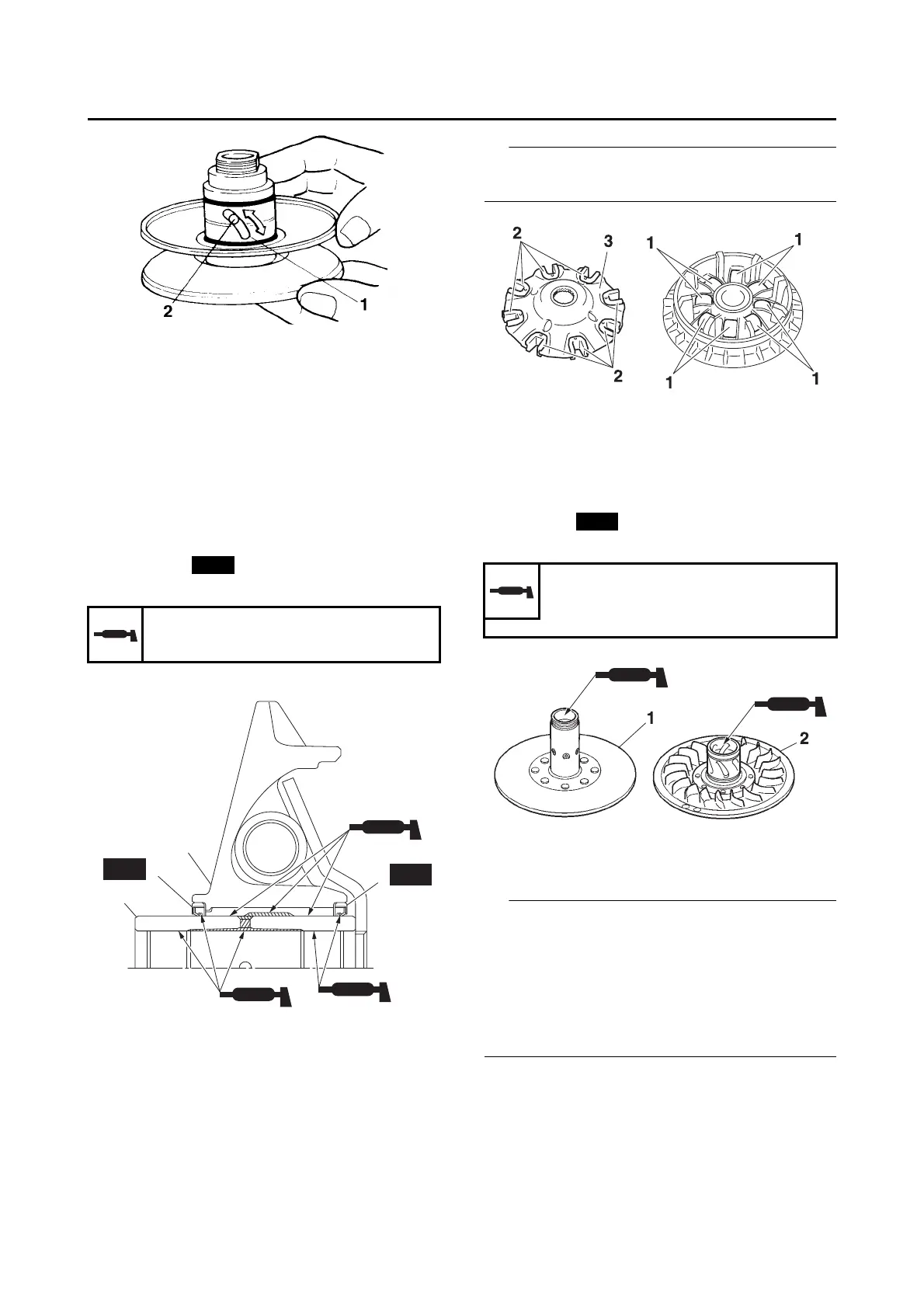

ASSEMBLING THE PRIMARY SHEAVE
1. Clean:
• Primary fixed sheave
• Primary sliding sheave
• Collar
•Cam
• Primary sheave weight
2. Lubricate:
• Collar inner surface and outer surface
• Primary sliding sheave inner surface
• Oil seal “1”
(with the recommended lubricant)
3. Install:
• Primary sheave weight “1”
• Slider “2”
•Cam “3”
Do not apply the grease inside of the primary
sheave.
EAS30321
ASSEMBLING THE SECONDARY SHEAVE
1. Lubricate:
• Secondary fixed sheave inner surface “1”
• Secondary sliding sheave inner surface “2”
• Oil seals
(with the recommended lubricant)
2. Install:
• Guide pin
Before installing the guide pin, align the position
(where fixed sheave rivet head “a” and guide pin
hole “b” are in alignment with each other) with
alignment mark “c” of the sliding sheave. Install
the guide pin. Then, make sure that the sliding
sheave slides to the LOW side without an inter-
ference of rivet head “d”.
Recommended lubricant
YAMAHA GREASE “F”
2. Collar
3. Primary sliding sheave
Recommended lubricant
YAMAHA GREASE “H”
(Polyurea Grease®)
To Next Page
