Yamaha TMAX TECH MAX 2020 - General Chassis (3)

4-17
GENERAL CHASSIS (3)
EAS20156
GENERAL CHASSIS (3)

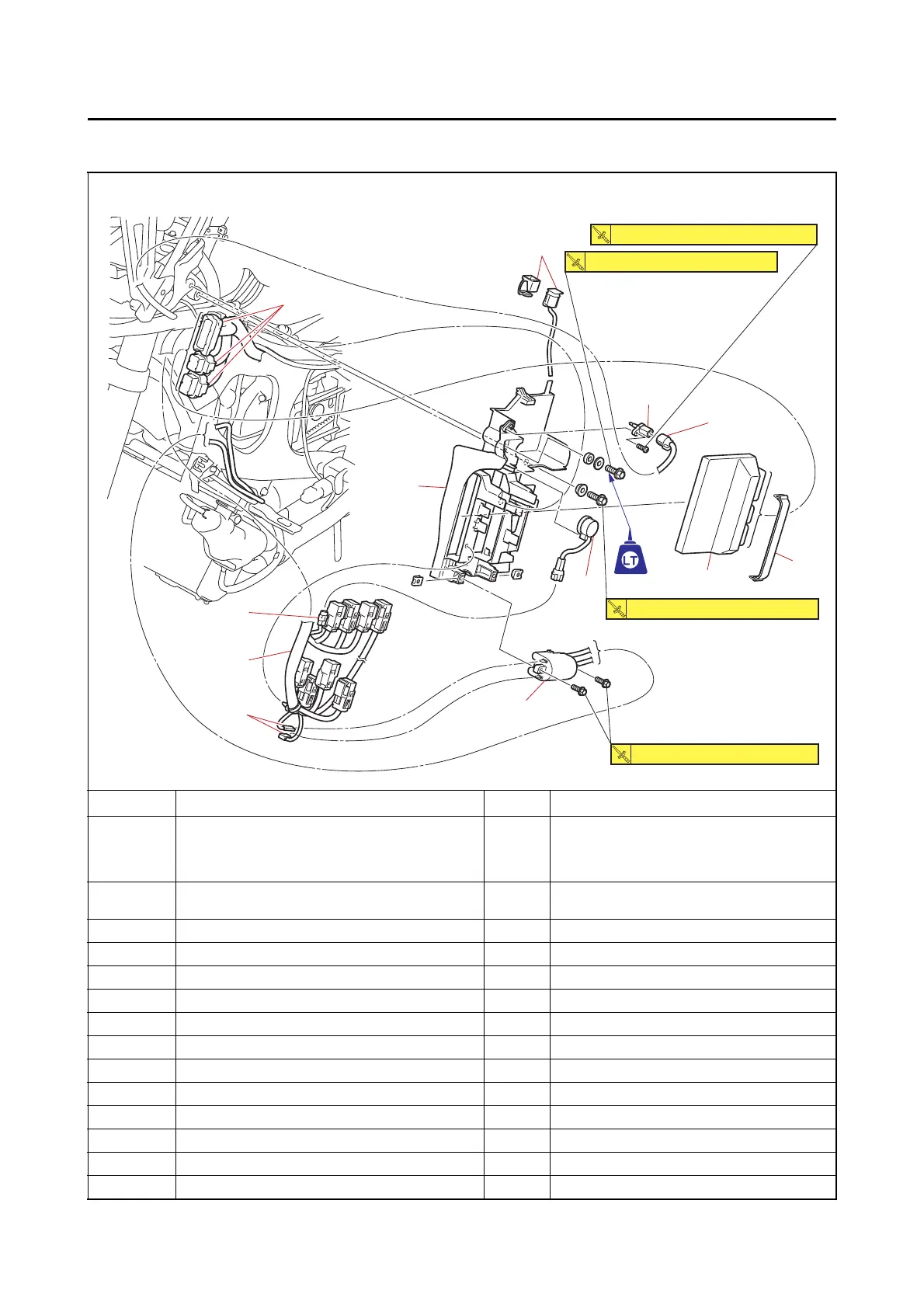

Removing the battery box and ECU (Engine Control Unit)
Order Job/Parts to remove Q’ty Remarks
Windshield/Front cover/Rearview mirror/Wind-
shield inner panel/Meter assembly/Bottom side
cowling/Side panel/Front cowling assembly/Bat-
tery/Leg shield assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover/Rear side cowling assembly/Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
1 Ignition coil connector 2 Disconnect.
2 Ignition coil 1
3 Buzzer coupler 1 Disconnect.
4 Intake air temperature sensor coupler 1 Disconnect.
5 ECU coupler 3 Disconnect.
6 Wire harness 1
7 YDT coupler 1 Disconnect.
8 Battery box 1
9 Band 1
10 ECU (Engine Control Unit) 1
11 Buzzer 1
12 Intake air temperature sensor 1
5
3
8
12
11
10
2
9
4
6
1
7
32 N・m (3.2 kgf・m, 24 lb・ft)
43 N・m (4.3 kgf・m, 32 lb・ft)
1.8 N・m (0.18 kgf・m, 1.3 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
