4-18
GENERAL CHASSIS (3)

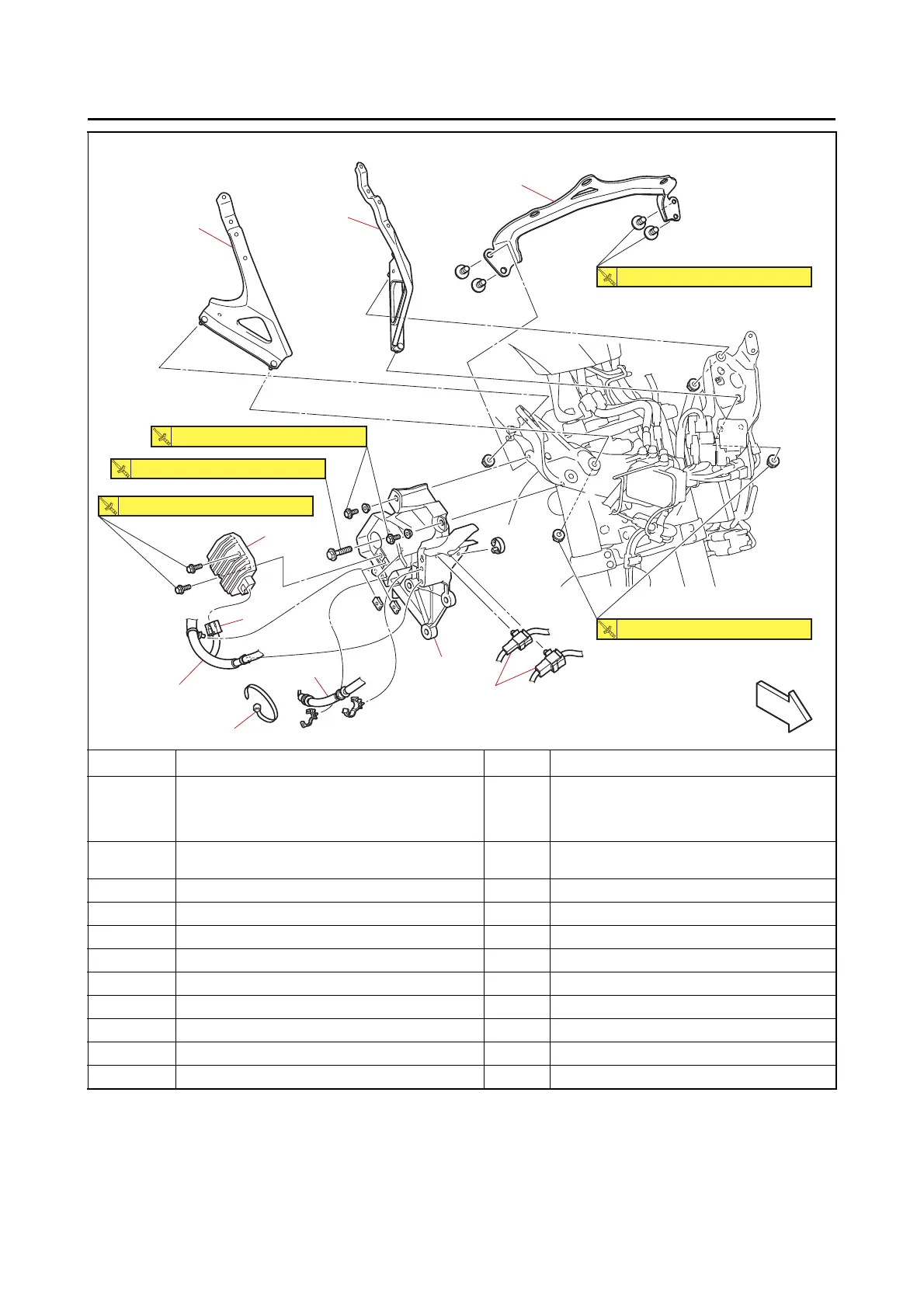

Removing the electrical components tray (for XP560E)
Order Job/Parts to remove Q’ty Remarks
Windshield/Front cover/Rearview mirror/Wind-
shield inner panel/Meter assembly/Bottom side
cowling/Side panel/Front cowling assembly/Leg
shield assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover/Rear side cowling assembly/Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
1 Handlebar switch coupler 2
2 Rectifier/regulator coupler 1 Disconnect.
3 Rectifier/regulator 1
4 Plastic locking tie 1
5 Wire harness 1
6 Rear brake hose 1
7 Electrical components tray 1
8 Meter bracket 1
9 Windshield bracket 2
FWDFWD
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
9 N・m (0.9 kgf・m, 6.6 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
18 N・m (1.8 kgf・m, 13 lb・ft)
8
9
5
2
3
7
6
1
9
4
To Next Page
