TRANSMISSION
EAS20062
TRANSMISSION

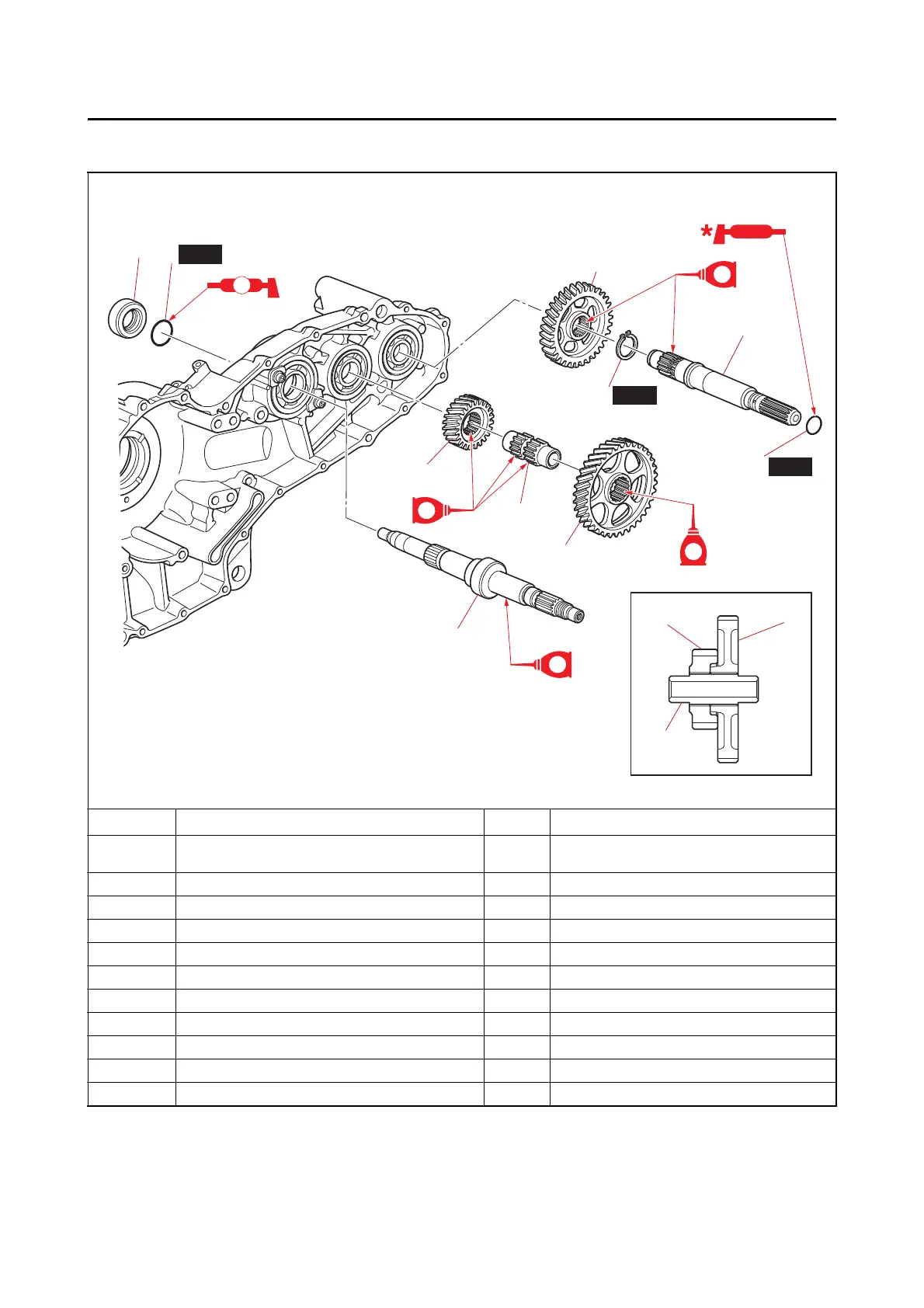

Removing the transmission
* Apply YAMAHA GREASE “J” (Shell Alvania EP Grease R0®).
Order Job/Parts to remove Q’ty Remarks
Crankcase
Separate.
Refer to “CRANKCASE” on page 5-66.
1 Secondary shaft 1
2Collar 1
3 O-ring 1
4 Primary driven gear 1
5 Main axle 1
6 1st pinion gear 1
7 Drive axle 1
8 1st wheel gear 1
9 Circlip 1
10 O-ring 1
3
5
1
4
5
6
2
8
9
7
4
New
New
3
10 New
LS
E
E
E
E
