4-10
GENERAL CHASSIS (1)

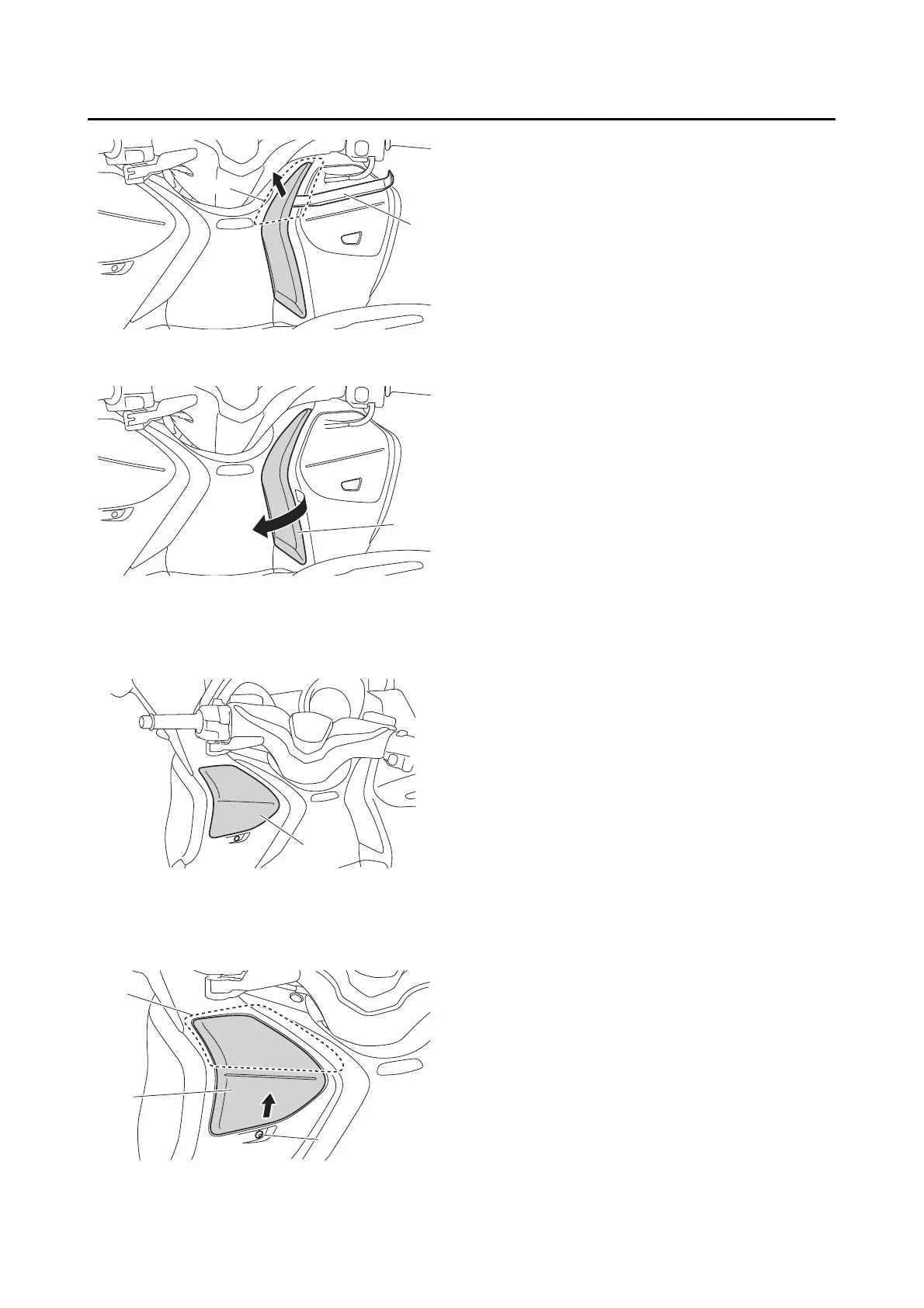

b. Remove the inner panel “1” by moving it in
the arrow direction.
EAS31677
REMOVING THE BATTERY COVER
1. Remove:
Battery cover “1”
a. Remove the battery cover screw “2”.
b. Remove the part “a” of the battery cover.
c. Remove the battery cover “1” by sliding it to
the upper side.
b
a
1
1
2
1
a
