5-36
ELECTRIC STARTER

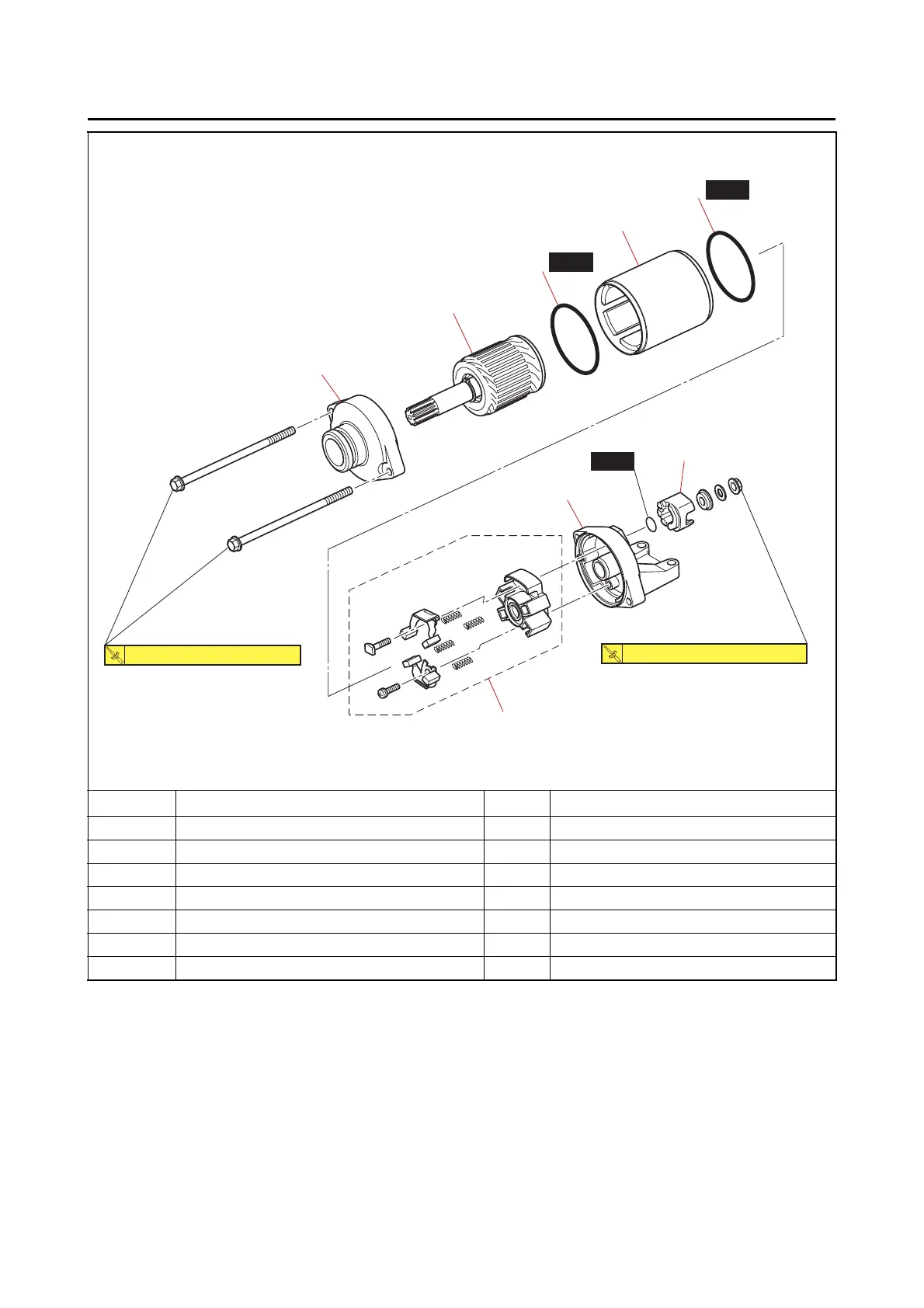

Disassembling the starter motor
* When replacing any of the starter motor front cover, armature assembly, starter motor yoke, insulator, and
starter motor rear cover, replace the starter motor assembly.
Order Job/Parts to remove Q’ty Remarks
1 Starter motor front cover 1
2 Armature assembly 1
3 Starter motor yoke 1
4 O-ring 2
5 Brush holder set 1
6 Insulator 1
7 Starter motor rear cover 1
1
*
2
*
3
*
4
4
6
*
7
*
5
New
New
New
11 N
•
m (1.1 kgf
•
m, 8.1 lb
•
ft)
T
.R.
5 N
•
m (0.5 kgf
•
m, 3.7 lb
•
ft)
T
.R.
