STEERING HEAD

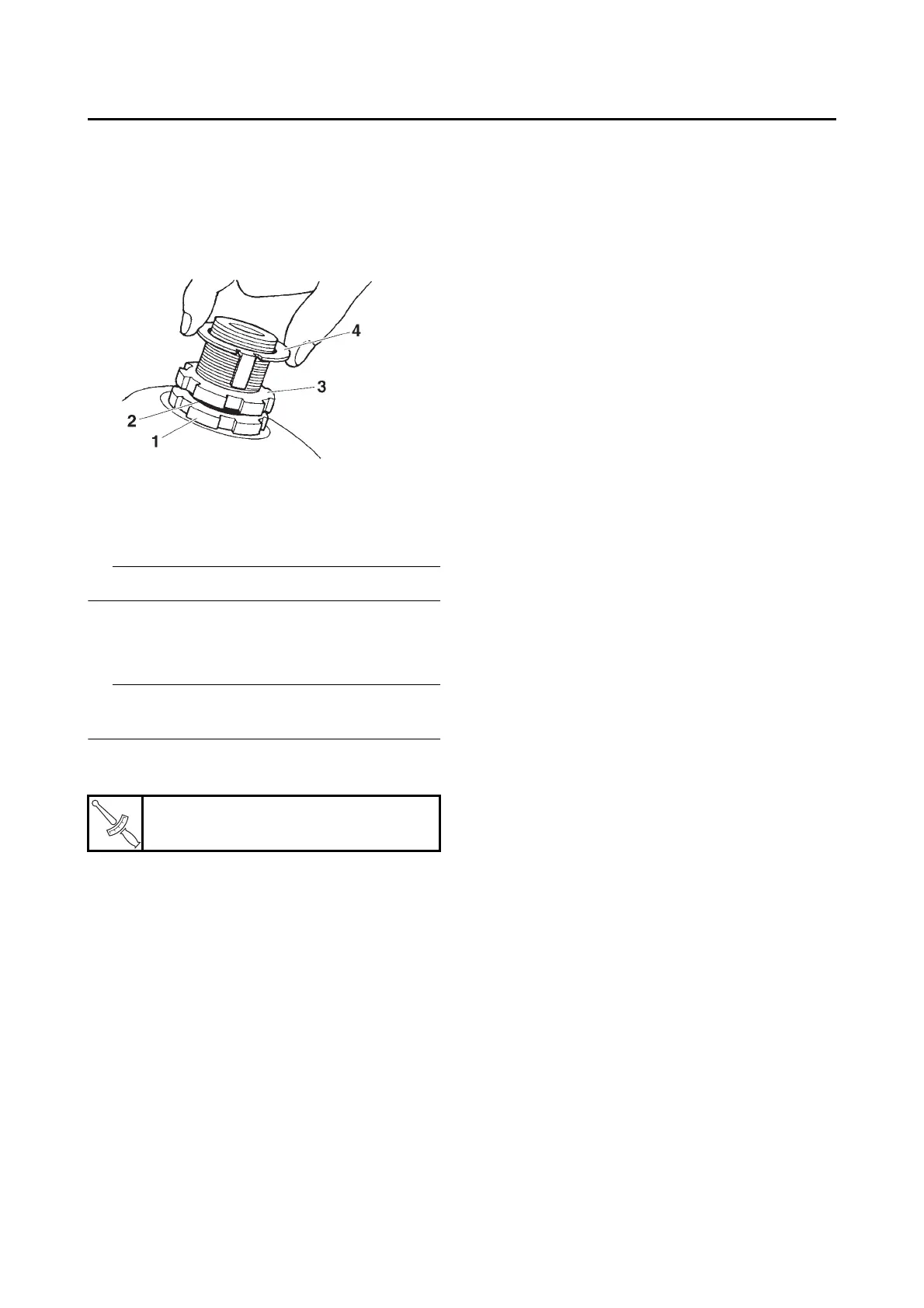

2. Install:
• Lower ring nut “1”
• Rubber washer “2”
• Upper ring nut “3”
• Lock washer “4”
Refer to “CHECKING AND ADJUSTING
THE STEERING HEAD” on page 3-23.
3. Install:
• Upper bracket
• Washer
• Steering stem nut
TIP
Temporarily tighten the steering stem nut.
4. Install:
• Front fork leg
Refer to “FRONT FORK” on page 4-81.
TIP
Temporarily tighten the upper and lower bracket
pinch bolts.
5. Tighten:
• Steering stem nut
Steering stem nut
130 N·m (13 kgf·m, 96 lb·ft)
