4-20
GENERAL CHASSIS (3)

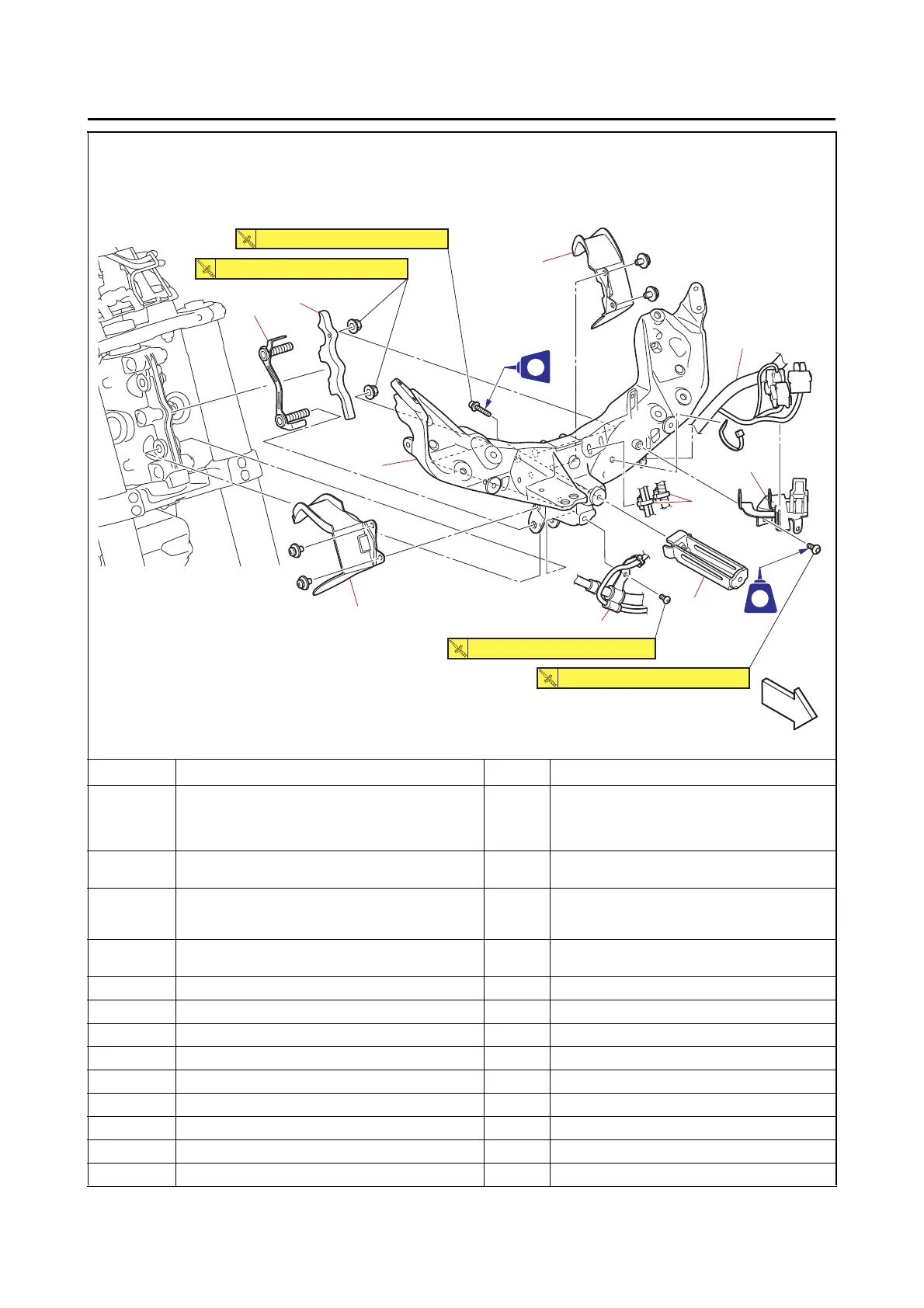

Removing the headlight bracket
Order Job/Parts to remove Q’ty Remarks
Windshield/Front cover/Rearview mirror/Wind-
shield inner panel/Meter assembly/Bottom side
cowling/Side panel/Front cowling assembly/Leg
shield assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover/Rear side cowling assembly/Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Battery box/Electrical components tray/Meter
bracket/Windshield bracket (XP560E)/Wind-
shield drive unit (XP560D)
Refer to “GENERAL CHASSIS (3)” on
page 4-17.
Hydraulic unit
Refer to “ABS (Anti-lock Brake System)” on
page 4-67.
1 Brake hose holder 1
2 Wire harness 1
3 Clamp 2
4 Cover 2
5Plate 1
6 Headlight bracket 1 1
7 Wire harness bracket 1
8 Headlight bracket 2 1
9 Damper 1
FWDFWD
1
2
3
4
4
5
6
7
8
9
LT
LT
15 N・m (1.5 kgf・m, 11 lb・ft)
35 N・m (3.5 kgf・m, 26 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
18 N・m (1.8 kgf・m, 13 lb・ft)
To Next Page
